MH

all ashFlood

2

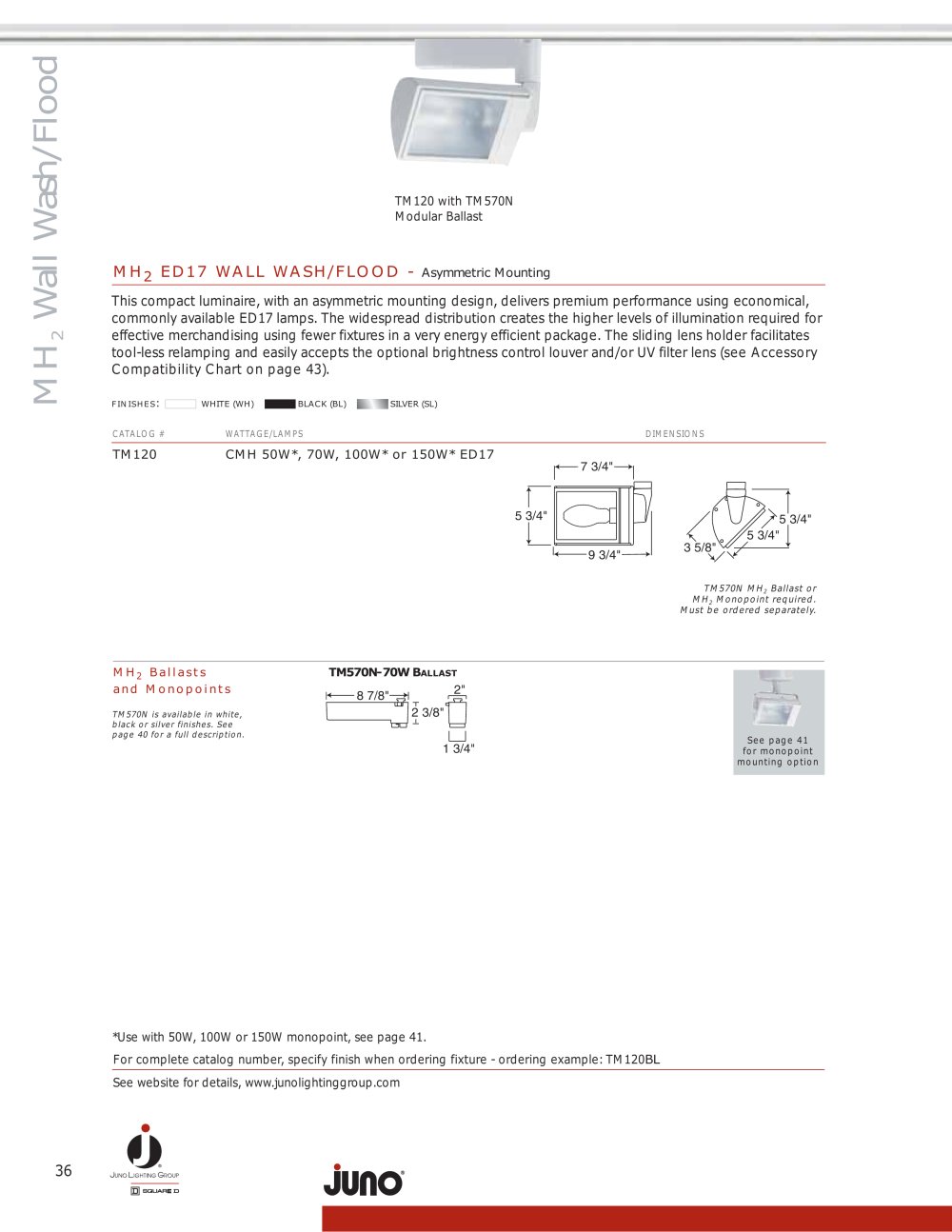

ED17 WALL WASH/FLOOD -

Asetric Mountin

This compact luminaire, with an asymmetric mounting design, delivers premium performance using economical,commonly available ED17 lamps. The widespread distribution creates the higher levels of illumination required for effective merchandising using fewer fixtures in a very energy efficient package. The sliding lens holder facilitates tool-less relamping and easily accepts the optional brightness control louver and/or UV filter lens (see AccessoryCompatibility Chart on page 43).

2 MH FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CATALOG#WATTAGE/LAMPS DIMENSIONS TM120CMH 50W, 70W, 100W or150W ED17

5 3/4"9 3/4"7 3/4" 5 3/4"5 3/4" 3 5/8"

TM570N MH 2 Ballast or MH 2 Monopoint required. Must be ordered separately. MH 2 Ballasts TM570N-70W B ALLAST and Monopoints

8 7/8"2 3/8"2"1 3/4"

TM570N is available in white, black or silver finishes. See page 40 for a full description. See page 41 for monopointmounting option Use with 50W, 100W or 150W monopoint, see page 41. For complete catalog number, specify finish when ordering fixture - ordering example: TM120 BL See website for details, www.junolightinggroup.com

36
