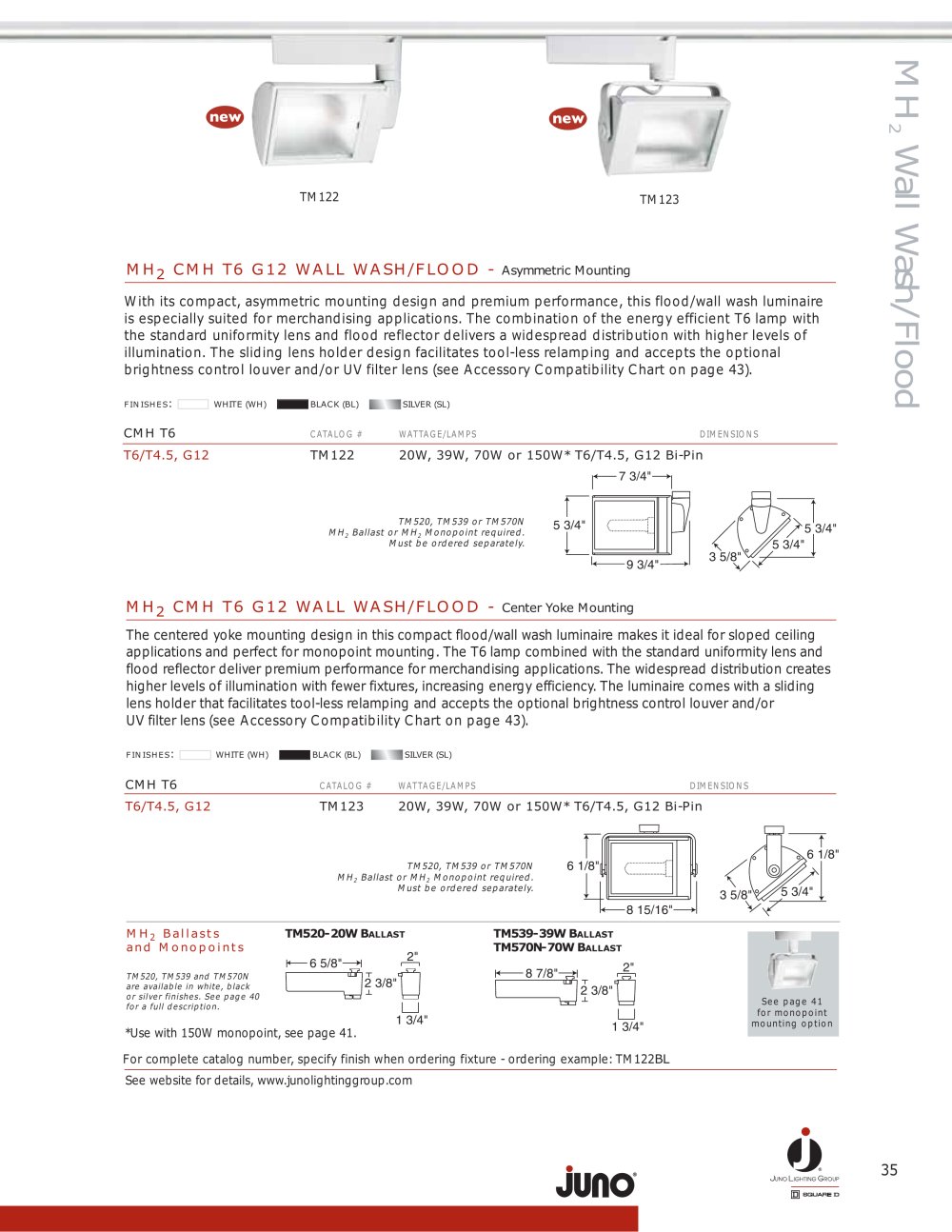

MH

2

CMHT6 G12 WALL WASH/FLOOD -

Asetric Mountin

With its compact, asymmetric mounting design and premium performance, this flood/wall wash luminaireis especially suited for merchandising applications. The combination of the energy efficient T6 lamp with the standard uniformity lens and flood reflector delivers a widespread distribution with higher levels of illumination. The sliding lens holder design facilitates tool-less relamping and accepts the optional brightness control louver and/or UV filter lens (see Accessory Compatibility Chart on page 43).

FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH T6
CATALOG#WATTAGE/LAMPS DIMENSIONS T6/T4.5, G12 TM12220W, 39W, 70W or 150W T6/T4.5, G12 Bi-Pin
2 Ballast or MH 2 Monopoint required. Must be ordered separately.

5 3/4"9 3/4"7 3/4" 5 3/4"5 3/4" 3 5/8"

MH

2

CMH T6 G12 WALL WASH/FLOOD -

Center Yoke Mountin

The centered yoke mounting design in this compact flood/wall wash luminaire makes it ideal for sloped ceilingapplications and perfect for monopoint mounting. The T6 lamp combined with the standard uniformity lens andflood reflector deliver premium performance for merchandising applications. The widespread distribution creates higher levels of illumination with fewer fixtures, increasing energy efficiency. The luminaire comes with a sliding lens holder that facilitates tool-less relamping and accepts the optional brightness control louver and/or UV filter lens (see Accessory Compatibility Chart on page 43).

FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH T6
CATALOG#WATTAGE/LAMPS DIMENSIONS T6/T4.5, G12 TM12320W, 39W, 70W or 150WT6/T4.5, G12 Bi-Pin

6 1/8"

TM520, TM53 or TM570N MH 2 Ballast or MH 2 Monopoint required. Must be ordered separately. TM520, TM53 or TM570N MH

3 5/8" 5 3/4" 8 15/16"6 1/8"

MH 2 Ballasts TM520-20W B ALLAST TM539-39W B ALLAST and Monopoints TM570N-70W B ALLAST

6 5/8"2 3/8"2"1 3/4"

TM520, TM53 and TM570N are available in white, black or silver finishes. See page 40for a full description.

8 7/8"2 3/8"2"1 3/4"

See page 41 for monopointmounting option Use with 150W monopoint, see page 41. For complete catalog number, specify finish when ordering fixture - ordering example: TM122 BL See website for details, www.junolightinggroup.com

35
