MH

2

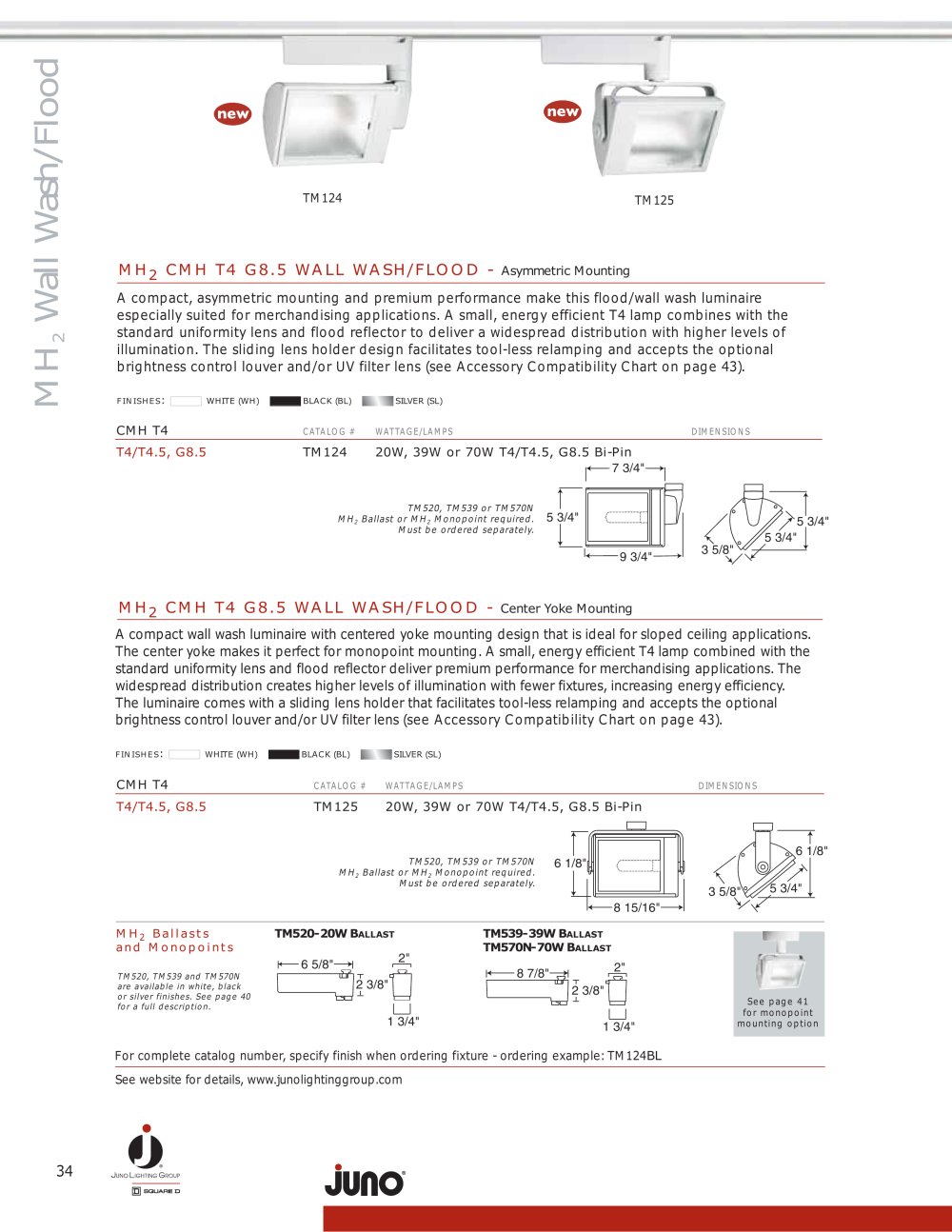

CMH T4 G8.5 WALL WASH/FLOOD -

Asetric Mountin
all ashFlood

A compact, asymmetric mounting and premium performance make this flood/wall wash luminaire especially suited for merchandising applications. A small, energy efficient T4 lamp combines with thestandard uniformity lens and flood reflector to deliver a widespread distribution with higher levels of illumination. The sliding lens holder design facilitates tool-less relamping and accepts the optional brightness control louver and/or UV filter lens (see Accessory Compatibility Chart on page 43).

2 MH FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH T4
CATALOG#WATTAGE/LAMPS DIMENSIONS T4/T4.5, G8.5 TM12420W, 39W or70W T4/T4.5, G8.5 Bi-Pin
TM520, TM53 or TM570N MH 2 Ballast or MH 2 Monopoint required. Must be ordered separately. TM520, TM53 or TM570N MH

5 3/4"9 3/4"7 3/4" 5 3/4"5 3/4" 3 5/8"

MH

2

CMHT4 G8.5 WALL WASH/FLOOD -

Center Yoke Mountin

A compact wall wash luminaire with centered yoke mounting design that is ideal for sloped ceiling applications.The center yoke makes it perfect for monopoint mounting. A small, energy efficient T4 lamp combined with thestandard uniformity lens and flood reflector deliver premium performance for merchandising applications. Thewidespread distribution creates higher levels of illumination with fewer fixtures, increasing energy efficiency. The luminaire comes with a sliding lens holder that facilitates tool-less relamping and accepts the optional brightness control louver and/or UV filter lens (see Accessory Compatibility Chart on page 43).

FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH T4
CATALOG#WATTAGE/LAMPS DIMENSIONS T4/T4.5, G8.5 TM12520W, 39W or70W T4/T4.5, G8.5 Bi-Pin

6 1/8"

2 Ballast or MH 2 Monopoint required. Must be ordered separately.

3 5/8" 5 3/4" 8 15/16"6 1/8"

MH 2 Ballasts TM520-20W B ALLAST TM539-39W B ALLAST and Monopoints TM570N-70W B ALLAST

6 5/8"2 3/8"2"1 3/4"

TM520, TM53 and TM570N are available in white, black or silver finishes. See page 40for a full description.

8 7/8"2 3/8"2"1 3/4"

See page 41 for monopointmounting option For complete catalog number, specify finish when ordering fixture - ordering example: TM124 BL See website for details, www.junolightinggroup.com

34
