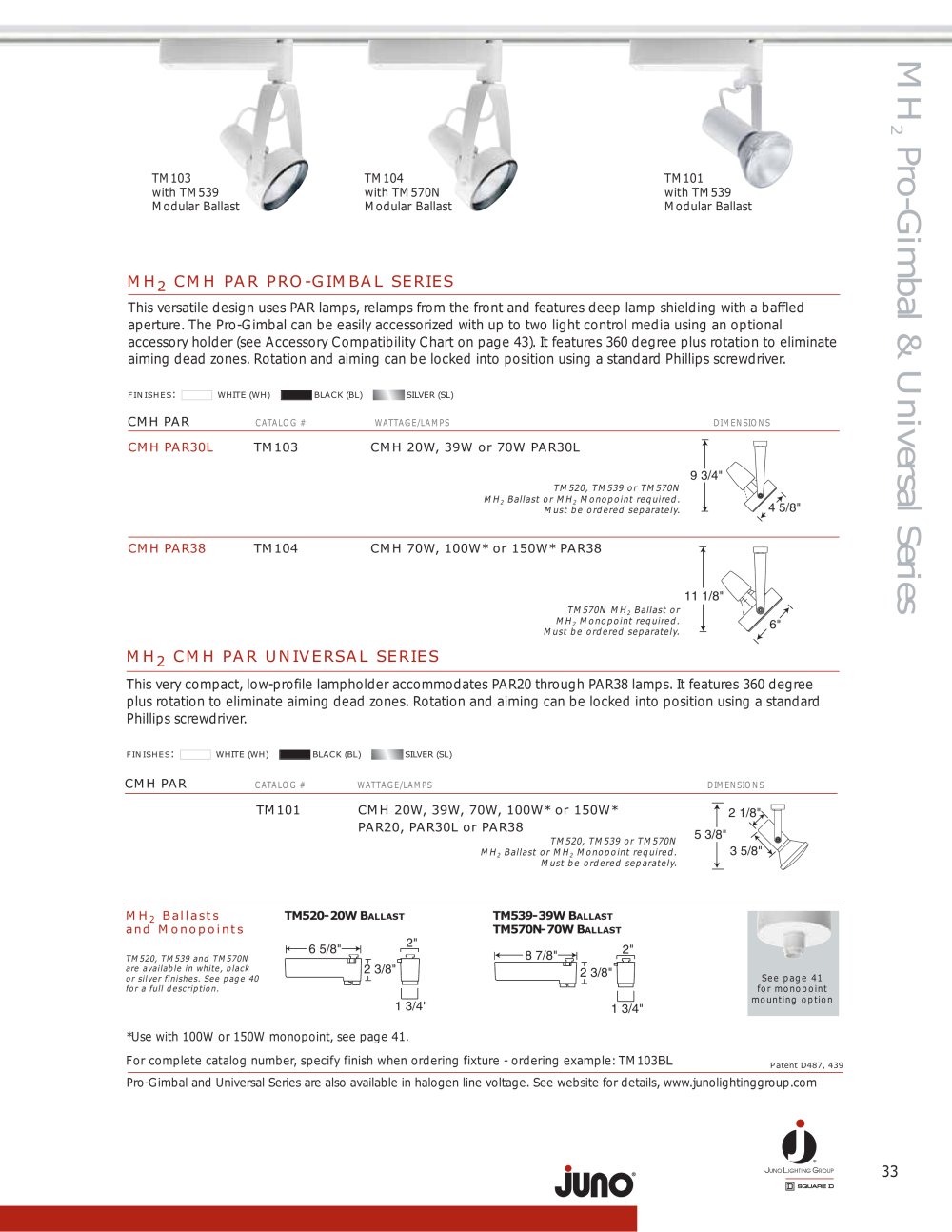

MH 2 CMH PAR PRO-GIMBAL SERIES This versatile design uses PAR lamps, relamps from the front and features deep lamp shielding with a baffledaperture. The Pro-Gimbal can be easily accessorized with up to two light control media using an optional accessory holder (see Accessory Compatibility Chart on page 43). It features 360 degree plus rotation to eliminateaiming dead zones. Rotation and aiming can be locked into position using a standard Phillips screwdriver.

CMH PAR

FINISHES

:

WHITE (WH)BLACK (BL)SILVER (SL) CATALOG#WATTAGE/LAMPS DIMENSIONS

CMH PAR30LTM103CMH 20W, 39W or 70W PAR30LCMH PAR38TM104CMH 70W, 100W or 150W PAR38

9 3/4"4 5/8"

TM520, TM53 or TM570N MH
2 Ballast or MH
2 Monopoint required. Must be ordered separately. TM570N MH
2 Ballast or MH
2 Monopoint required. Must be ordered separately.

6"11 1/8"

MH 2 CMHPAR UNIVERSAL SERIES This very compact, low-profile lampholder accommodates PAR20 through PAR38 lamps. It features 360 degreeplus rotation to eliminate aiming dead zones. Rotation and aiming can be locked into position using a standard Phillips screwdriver.

FINISHES

:

WHITE (WH)BLACK (BL)SILVER (SL)

CMH PAR

CATALOG#WATTAGE/LAMPS DIMENSIONS

TM101CMH 20W, 39W, 70W, 100W or 150W PAR20, PAR30L or PAR38

TM520, TM53 or TM570N MH

5 3/8"3 5/8"2 1/8"

2 Ballast or MH
2 Monopoint required. Must be ordered separately.

MH

Ballasts TM520-20W B

ALLAST

TM539-39W B

ALLAST

and Monopoints TM570N-70W B

ALLAST TM520, TM53 and TM570N are available in white, black or silver finishes. See page 40for a full description.

6 5/8"2 3/8"2"1 3/4" 8 7/8"2 3/8"2"1 3/4"

For complete catalog number, specify finish when ordering fixture - ordering example: TM103 BL

See page 41 for monopointmounting option

Pro-Gimbal and Universal Series are also available in halogen line voltage. See website for details, www.junolightinggroup.com Use with 100W or 150W monopoint, see page 41.

Patent D487, 439

33
