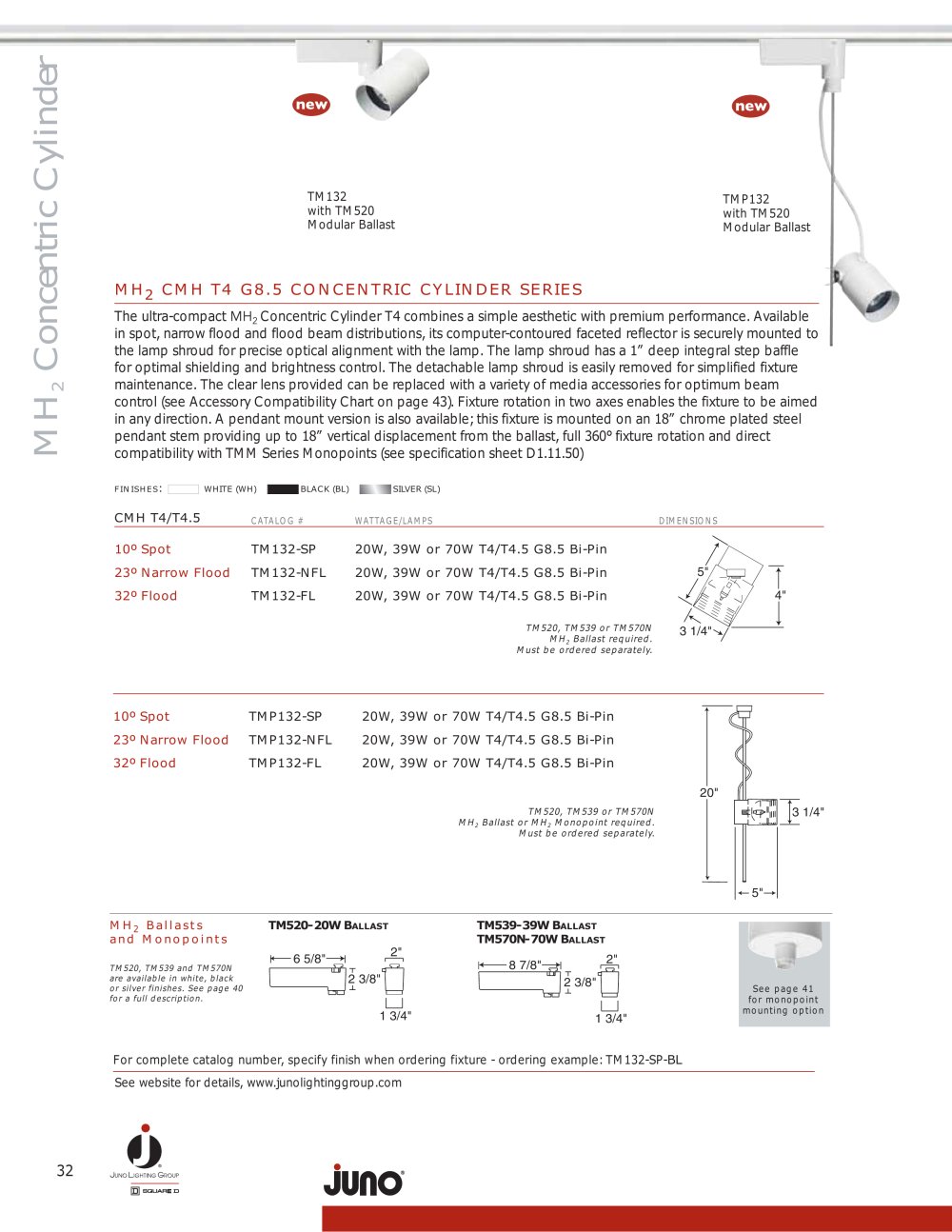

CMHT4 G8.5 CONCENTRIC CYLINDER SERIES

The ultra-compact MH

Concentric Cylinder T4 combines a simple aesthetic with premium performance. Availablein spot, narrow flood and flood beam distributions, its computer-contoured faceted reflector is securely mounted to the lamp shroud for precise optical alignment with the lamp. The lamp shroud has a 1” deep integral step baffle for optimal shielding and brightness control. The detachable lamp shroud is easily removed for simplified fixturemaintenance. The clear lens provided can be replaced with a variety of media accessories for optimum beam control (see Accessory Compatibility Chart on page 43). Fixture rotation in two axes enables the fixture to be aimed in any direction. A pendant mount version is also available this fixture is mounted on an 18” chrome plated steel pendant stem providing up to 18” vertical displacement from the ballast, full 360fixture rotation and direct compatibility withTMM Series Monopoints (see specification sheet D1.11.50)

Concentric Cylinder 2 MH FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH T4/T4.5
CATALOG#WATTAGE/LAMPS DIMENSIONS 10º SpotTM132-SP20W, 39W or 70W T4/T4.5 G8.5 Bi-Pin23º Narrow FloodTM132-NFL20W, 39W or 70W T4/T4.5 G8.5 Bi-Pin32º FloodTM132-FL20W, 39W or 70W T4/T4.5 G8.5 Bi-Pin

5"

TM520, TM53 or TM570N MH 2 Ballast required. Must be ordered separately. TM520, TM53 or TM570N MH

3 1/4"4"

10º SpotTMP132-SP20W, 39W or 70W T4/T4.5 G8.5 Bi-Pin23º Narrow FloodTMP132-NFL20W, 39W or 70W T4/T4.5 G8.5 Bi-Pin32º FloodTMP132-FL20W, 39W or 70W T4/T4.5 G8.5 Bi-Pin

3 1/4"20"

2 Ballast or MH 2 Monopoint required. Must be ordered separately.

5"

MH 2 Ballasts TM520-20W B ALLAST TM539-39W B ALLAST and Monopoints TM570N-70W B ALLAST TM520, TM53 and TM570N are available in white, black or silver finishes. See page 40for a full description.

6 5/8"2 3/8"2"1 3/4" 8 7/8"2 3/8"2"1 3/4"

See page 41 for monopointmounting option For complete catalog number, specify finish when ordering fixture - ordering example: TM132-SP- BL See website for details, www.junolightinggroup.com
