MH

2

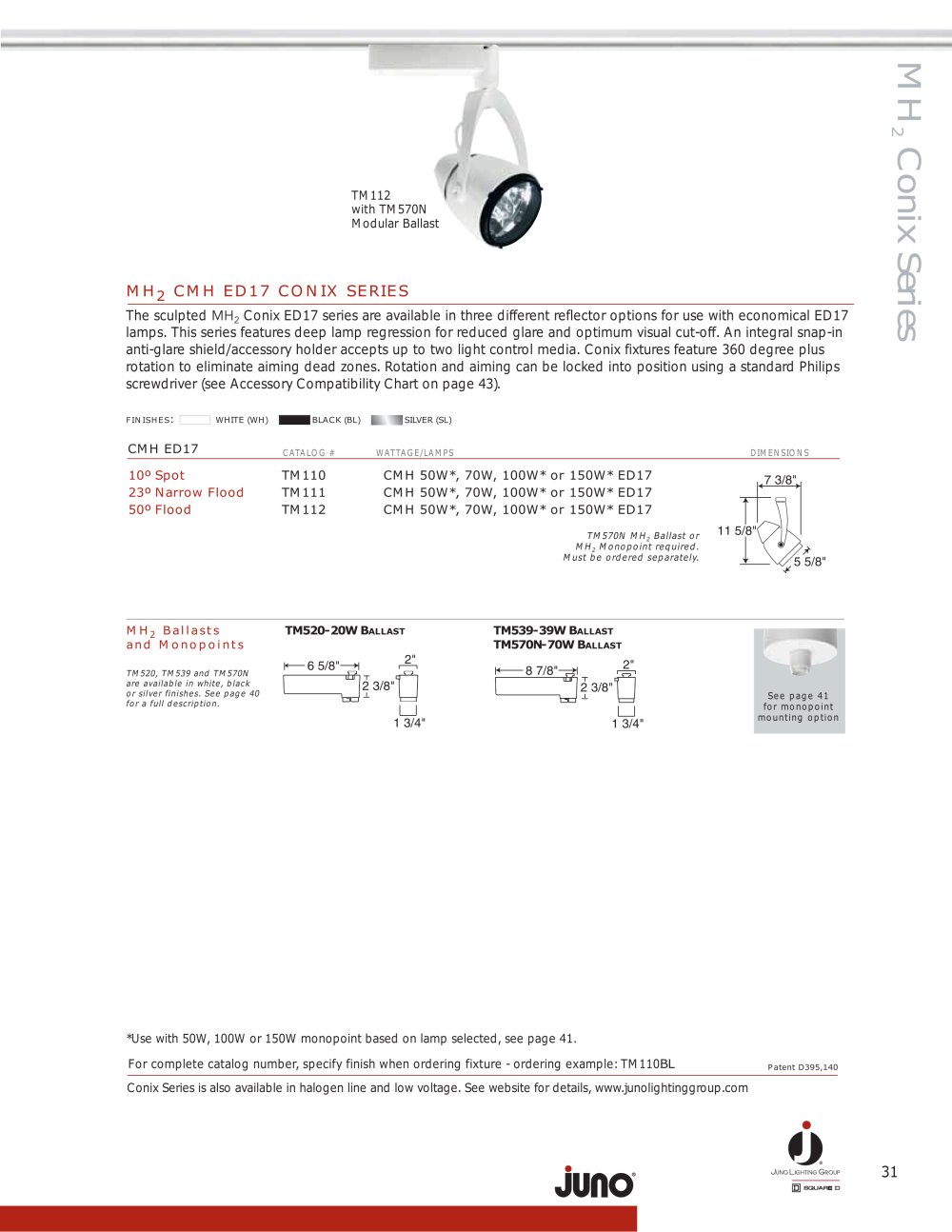

CMH ED17 CONIX SERIES

The sculpted (see Accessory Compatibility Chart on page 43). MH

Conix ED17 series are available in three different reflector options for use with economical ED17lamps. This series features deep lamp regression for reduced glare and optimum visual cut-off. An integral snap-in anti-glare shield/accessory holder accepts up to two light control media. Conix fixtures feature 360 degree plus rotation to eliminate aiming dead zones. Rotation and aiming can be locked into position using a standard Philipsscrewdriver

FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH ED17
CATALOG#WATTAGE/LAMPS DIMENSIONS 10º SpotTM110CMH 50W, 70W, 100W or 150W ED1723º Narrow FloodTM111CMH 50W, 70W, 100W or 150W ED1750º FloodTM112CMH 50W, 70W, 100W or 150W ED17

7 3/8"11 5/8"5 5/8"

TM570N MH 2 Ballast or MH 2 Monopoint required. Must be ordered separately. MH 2 Ballasts TM520-20W B ALLAST TM539-39W B ALLAST and Monopoints TM570N-70W B ALLAST TM520, TM53 and TM570N are available in white, black or silver finishes. See page 40for a full description.

6 5/8"2 3/8"2"1 3/4" 8 7/8"2 3/8"2"1 3/4"

See page 41 for monopointmounting option Use with 50W, 100W or 150W monopoint based on lamp selected, see page 41. For complete catalog number, specify finish when ordering fixture - ordering example: TM110 BL
Patent D395,140 Conix Series is also available in halogen line and low voltage. See website for details, www.junolightinggroup.com

31
