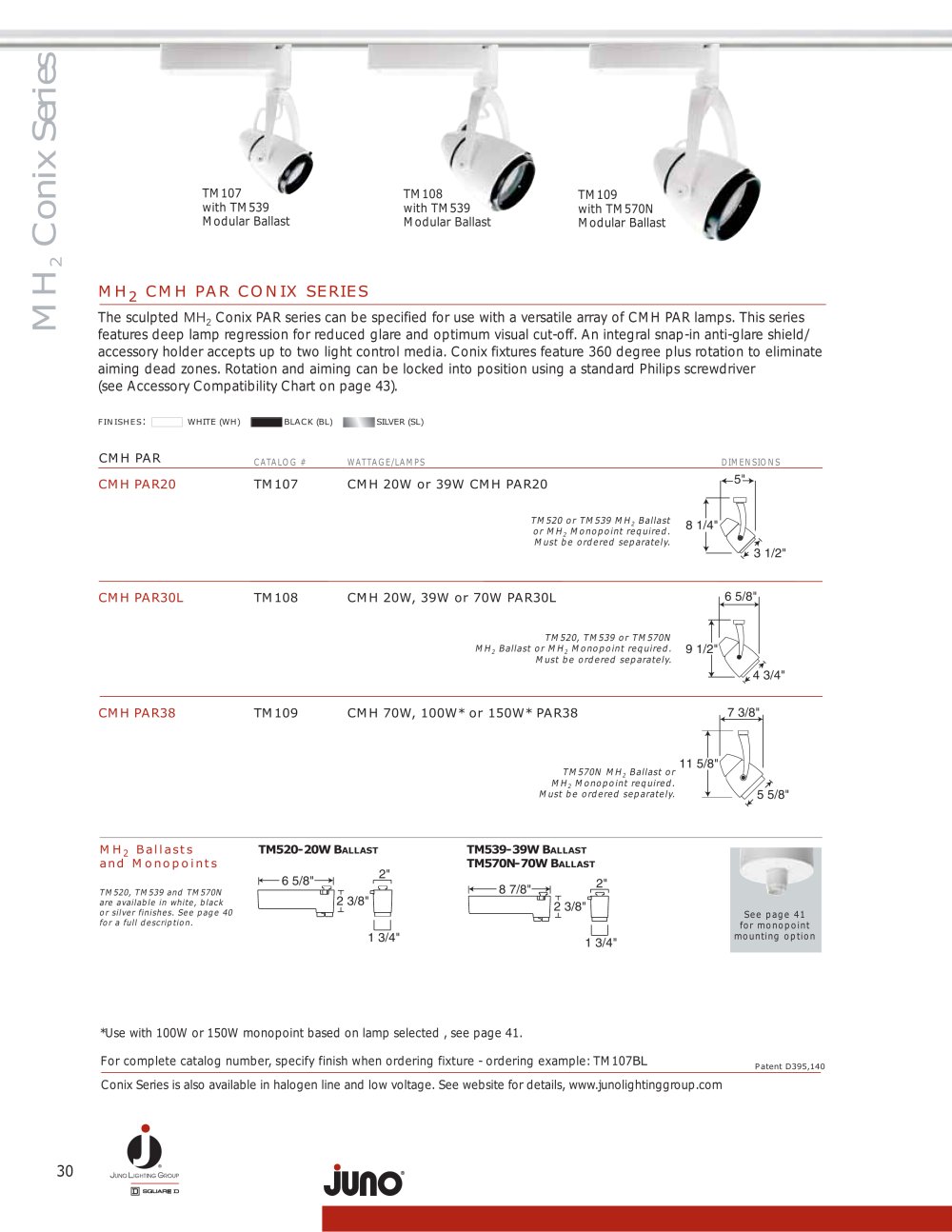

TM107with TM539 Modular allast TM109 with TM570 Modular allastTM108with TM539 Modular allast

Conix Series 2

MH 2 CMH PAR CONIX SERIES The sculpted MH

2

Conix PAR series can be specified for use with a versatile array of CMH PAR lamps. This seriesfeatures deep lamp regression for reduced glare and optimum visual cut-off. An integral snap-in anti-glare shield/accessory holder accepts up to two light control media. Conix fixtures feature 360 degree plus rotation to eliminateaiming dead zones. Rotation and aiming can be locked into position using a standard Philips screwdriver

MH

(see Accessory Compatibility Chart on page 43).

FINISHES

:

WHITE (WH)BLACK (BL)SILVER (SL)

CMH PAR

CATALOG#WATTAGE/LAMPS DIMENSIONS

CMHPAR20TM107CMH20W or 39W CMH PAR20CMHPAR30LTM108CMH20W, 39W or 70W PAR30LCMHPAR38TM109CMH70W, 100W or150W PAR38

5"3 1/2"8 1/4"

TM520 or TM53 MH
2 Ballastor MH
2 Monopoint required. Must be ordered separately. TM520, TM53 or TM570N MH

6 5/8"9 1/2"4 3/4"

2 Ballast or MH
2 Monopoint required. Must be ordered separately. TM570N MH

7 3/8"11 5/8"5 5/8"

2 Ballast or MH
2 Monopoint required. Must be ordered separately.

MH

2

Ballasts TM520-20W B

ALLAST

TM539-39W B

ALLAST

and Monopoints TM570N-70W B

ALLAST

6 5/8"2 3/8"2"1 3/4"

TM520, TM53 and TM570N are available in white, black or silver finishes. See page 40for a full description.

8 7/8"2 3/8"2"1 3/4"

See page 41 for monopointmounting option

Use with 100W or 150W monopoint based on lamp selected , see page 41. For complete catalog number, specify finish when ordering fixture - ordering example: TM107 BL

Patent D395,140

Conix Series is also available in halogen line and low voltage. See website for details, www.junolightinggroup.com

30
