MH

2

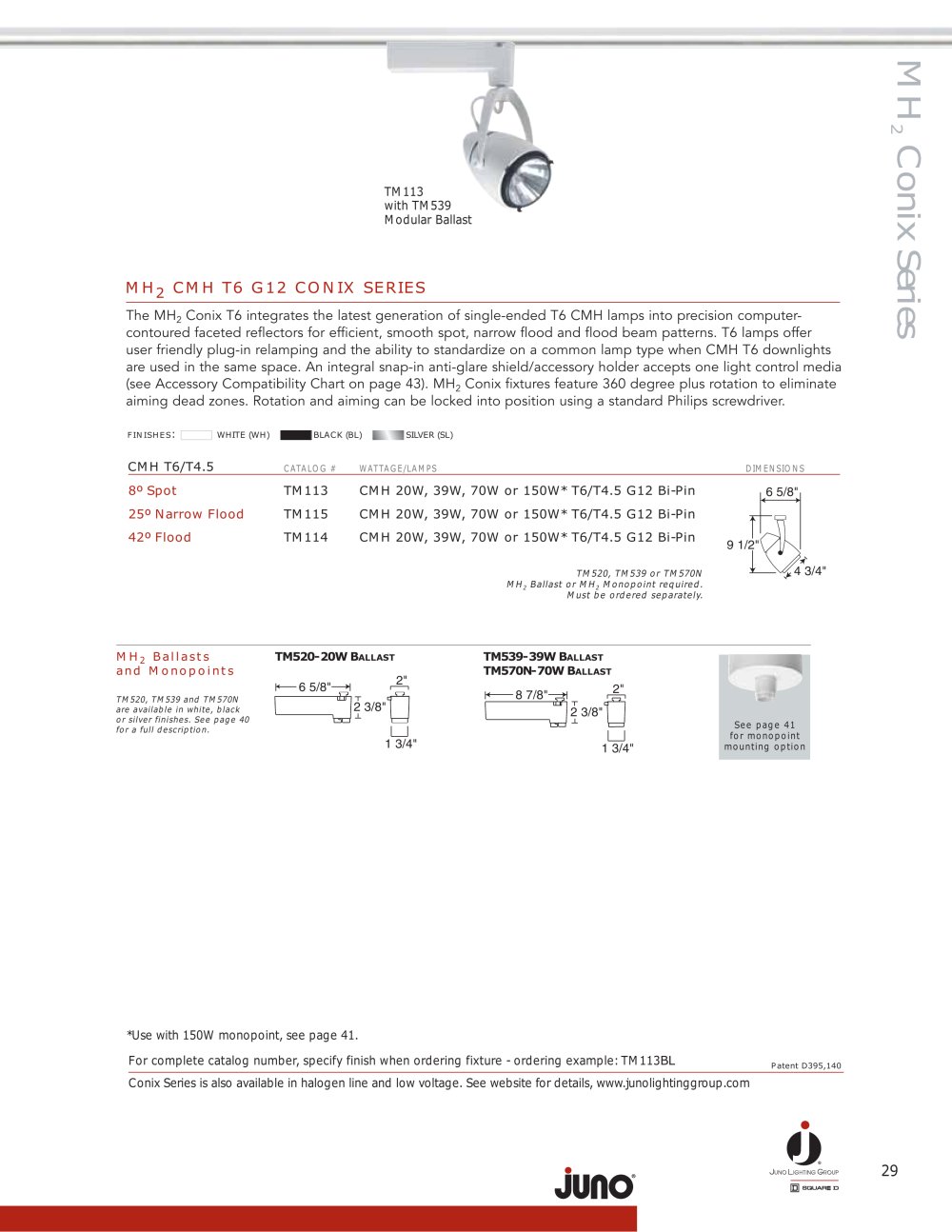

CMHT6 G12 CONIX SERIES

The MH

Conix T6 integrates the latest generation of single-ended T6 CMH lamps into precision computer-contoured faceted reflectors for efficient, smooth spot, narrow flood and flood beam patterns. T6 lamps offer user friendly plug-in relamping and the ability to standardize on a common lamp type when CMH T6 downlights are used in the same space.An integral snap-in anti-glare shield/accessory holder accepts one light control media (see Accessory Compatibility Chart on page 43). MH

Conix fixtures feature 360 degree plus rotation to eliminateaiming dead zones. Rotation and aiming can be locked into position using a standard Philips screwdriver.

FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH T6/T4.5
CATALOG#WATTAGE/LAMPS DIMENSIONS 8º SpotTM113CMH 20W, 39W, 70W or 150W T6/T4.5 G12 Bi-Pin25º Narrow FloodTM115CMH 20W, 39W, 70W or 150W T6/T4.5 G12 Bi-Pin42º FloodTM114CMH 20W, 39W, 70W or 150W T6/T4.5 G12 Bi-Pin

6 5/8"9 1/2"4 3/4"

TM520, TM53 or TM570N MH 2 Ballast or MH 2 Monopoint required. Must be ordered separately. MH 2 Ballasts TM520-20W B ALLAST TM539-39W B ALLAST and Monopoints TM570N-70W B ALLAST

6 5/8"2 3/8"2"1 3/4"

TM520, TM53 and TM570N are available in white, black or silver finishes. See page 40for a full description.

8 7/8"2 3/8"2"1 3/4"

See page 41 for monopointmounting option Use with 150W monopoint, see page 41. For complete catalog number, specify finish when ordering fixture - ordering example: TM113 BL
Patent D395,140 Conix Series is also available in halogen line and low voltage. See website for details, www.junolightinggroup.com

29
