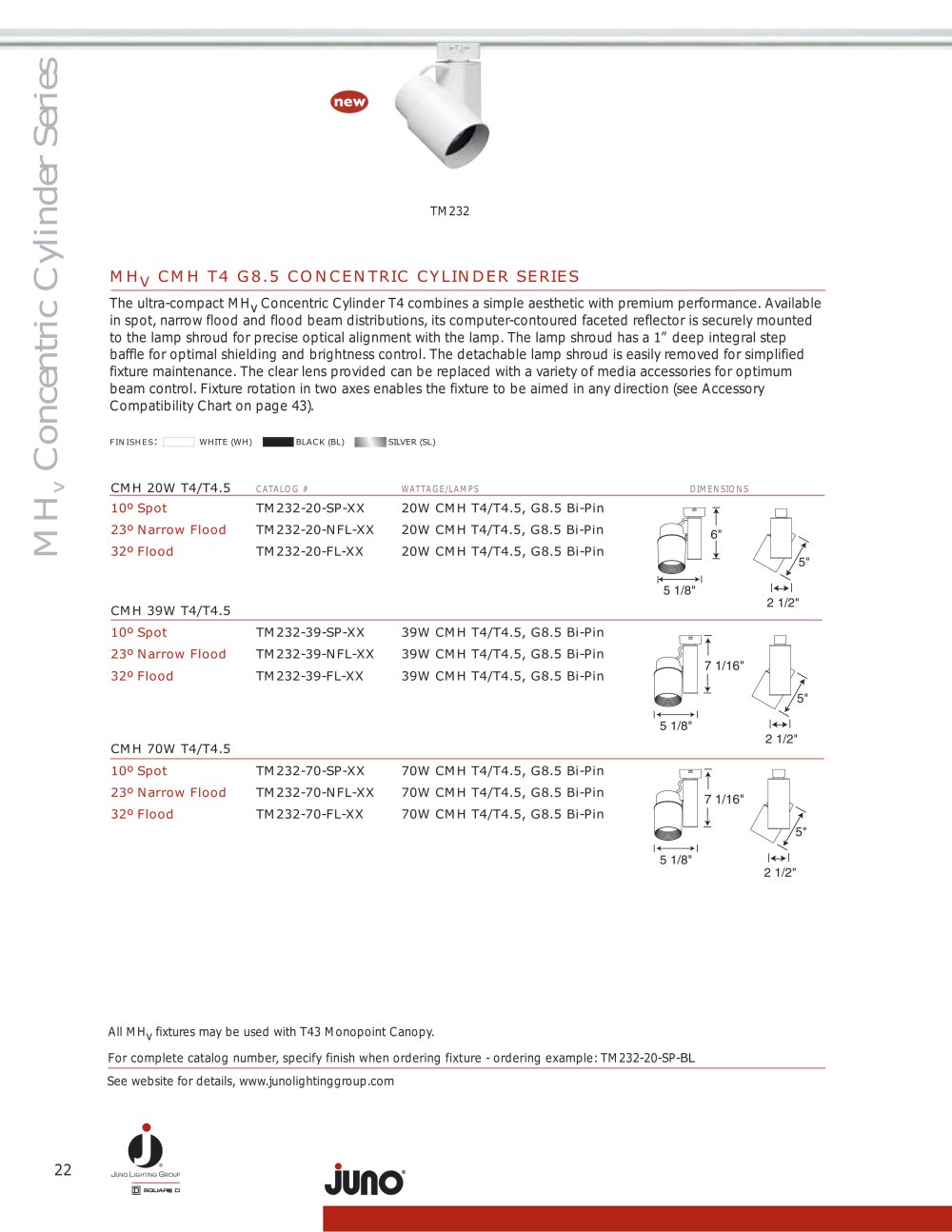

CMH T4 G8.5 CONCENTRIC CYLINDER SERIES

The ultra-compact MHvConcentric Cylinder T4 combines a simple aesthetic with premium performance. Availablein spot, narrow flood and flood beam distributions, its computer-contoured faceted reflector is securely mounted to the lamp shroud for precise optical alignment with the lamp. The lamp shroud has a 1” deep integral step baffle for optimal shielding and brightness control. The detachable lamp shroud is easily removed for simplifiedfixture maintenance. The clear lens provided can be replaced with a variety of media accessories for optimumbeam control. Fixture rotation in two axes enables the fixture to be aimed in any direction (see Accessory Compatibility Chart on page 43).

FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) Concentric Cylinder Series v CMH 20W T4/T4.5 CATALOG#WATTAGE/LAMPS DIMENSIONS 10º SpotTM232-20-SP-XX20W CMH T4/T4.5, G8.5 Bi-Pin23º Narrow FloodTM232-20-NFL-XX20W CMHT4/T4.5, G8.5 Bi-Pin32º FloodTM232-20-FL-XX20W CMH T4/T4.5, G8.5 Bi-PinCMH 39W T4/T4.510º SpotTM232-39-SP-XX39W CMH T4/T4.5, G8.5 Bi-Pin23º Narrow FloodTM232-39-NFL-XX39W CMH T4/T4.5, G8.5 Bi-Pin32º FloodTM232-39-FL-XX39W CMH T4/T4.5, G8.5 Bi-PinCMH 70W T4/T4.510º SpotTM232-70-SP-XX70W CMH T4/T4.5, G8.5 Bi-Pin23º Narrow FloodTM232-70-NFL-XX70W CMH T4/T4.5, G8.5 Bi-Pin32º FloodTM232-70-FL-XX70W CMH T4/T4.5, G8.5 Bi-Pin MH 5" 5 1/8"6" 2 1/2"

7 1/16"

5" 5 1/8" 2 1/2"

7 1/16"

5" 5 1/8" 2 1/2"
All MHvfixtures may be used with T43 Monopoint Canopy. For complete catalog number, specify finish when ordering fixture - ordering example: TM232-20-SP- BL See website for details, www.junolightinggroup.com
