MH

V

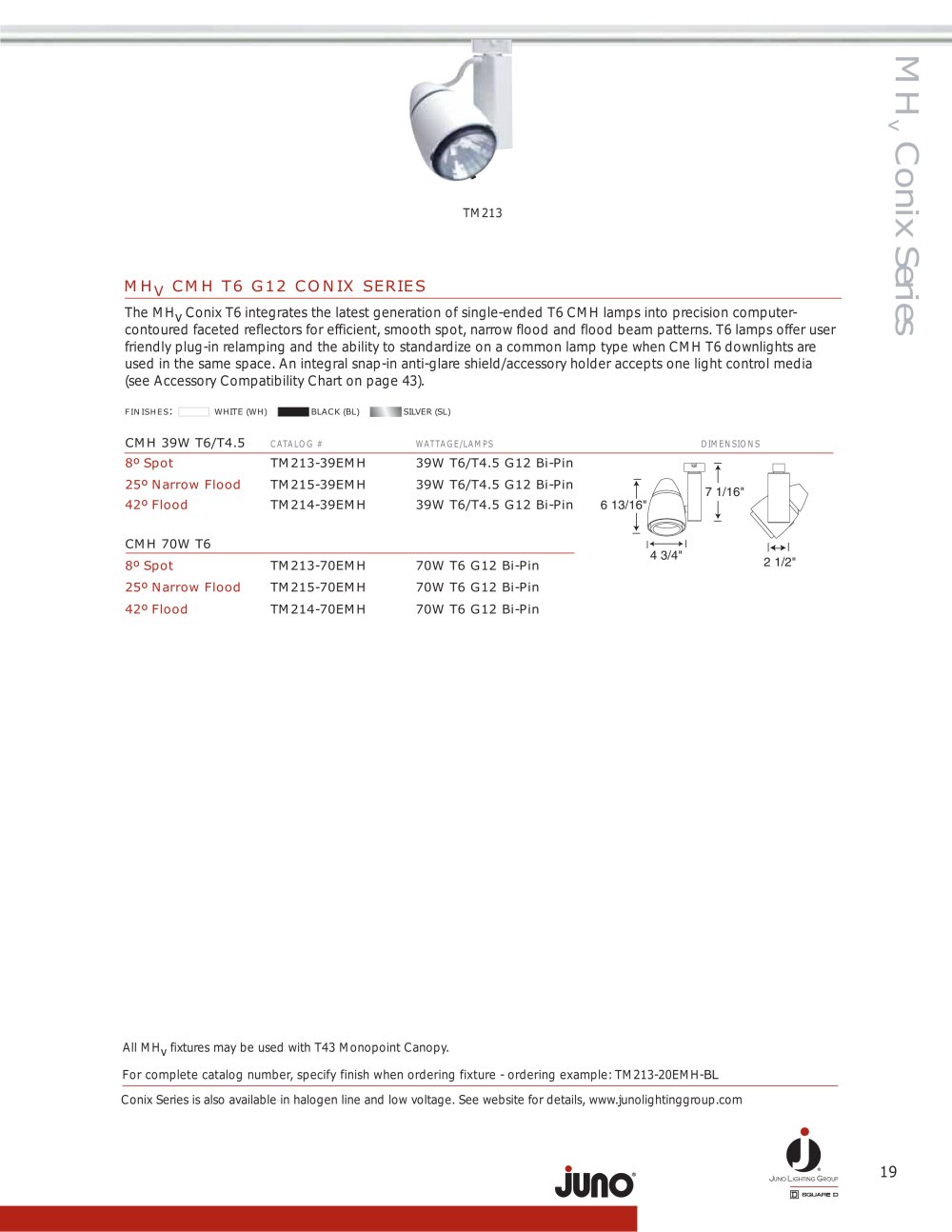

CMH T6 G12 CONIX SERIES

The MHvConix T6 integrates the latest generation of single-ended T6 CMH lamps into precision computer-contoured faceted reflectors for efficient, smooth spot, narrow flood and flood beam patterns. T6 lamps offer userfriendly plug-in relamping and the ability to standardize on a common lamp type whenCMH T6 downlights areused in the same space.An integral snap-in anti-glare shield/accessory holder accepts one light control media (see Accessory Compatibility Chart on page 43).

FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH 39W T6/T4.5
CATALOG#WATTAGE/LAMPS DIMENSIONS 8º SpotTM213-39EMH39W T6/T4.5 G12 Bi-Pin25º Narrow FloodTM215-39EMH39W T6/T4.5 G12 Bi-Pin42º FloodTM214-39EMH39W T6/T4.5 G12 Bi-PinCMH 70W T6 8º SpotTM213-70EMH70W T6 G12 Bi-Pin25º Narrow FloodTM215-70EMH70W T6 G12 Bi-Pin42º FloodTM214-70EMH70W T6 G12 Bi-Pin

6 13/16"4 3/4"7 1/16" 2 1/2"

All MHvfixtures may be used with T43 Monopoint Canopy. For complete catalog number, specify finish when ordering fixture - ordering example: TM213-20EMH- BL Conix Series is also available in halogen line and low voltage. See website for details, www.junolightinggroup.com

19
