MH

V

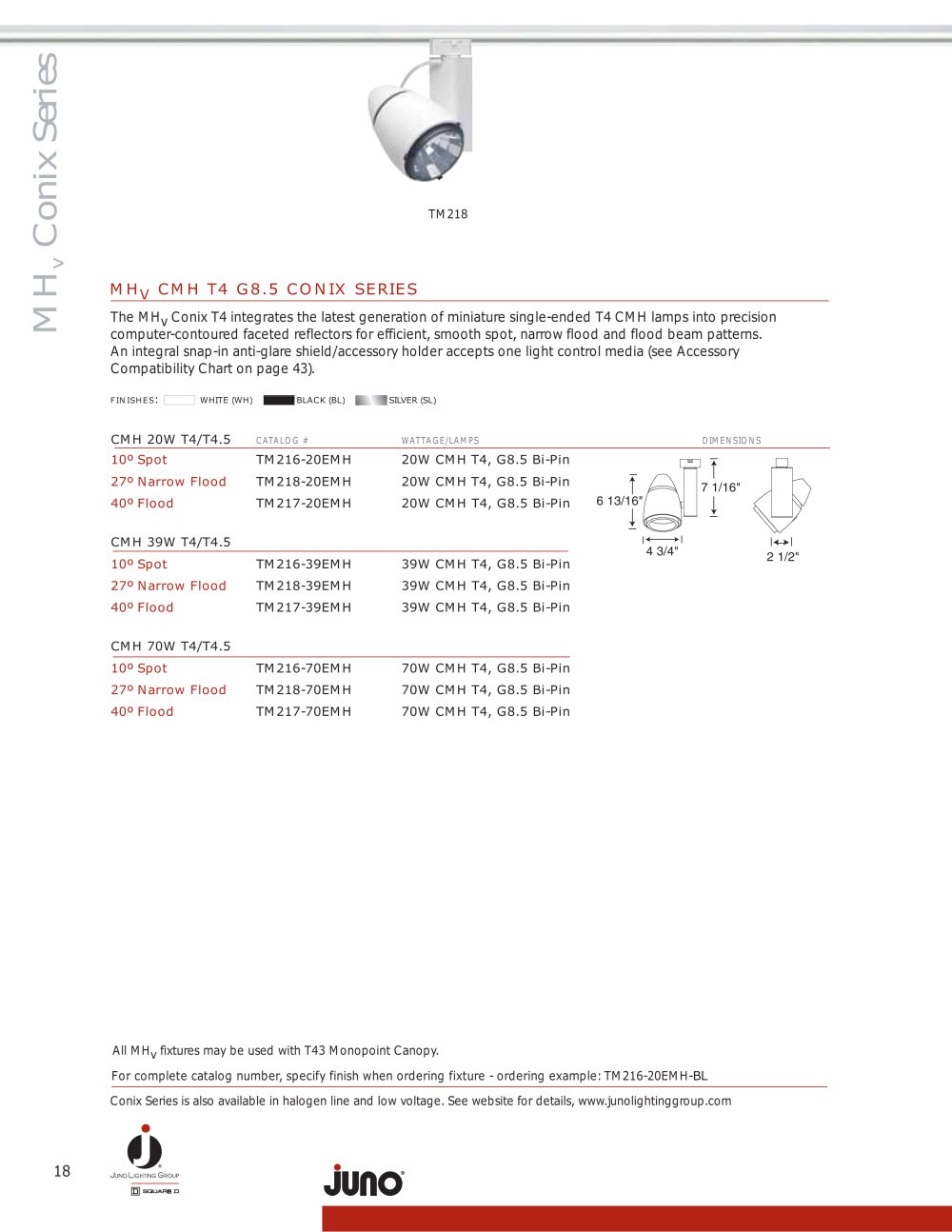

CMHT4 G8.5 CONIX SERIES

The MHvConix T4 integrates the latest generation of miniature single-ended T4 CMH lamps into precision computer-contoured faceted reflectors for efficient, smooth spot, narrow flood and flood beam patterns. An integral snap-in anti-glare shield/accessory holder accepts one light control media(see Accessory Compatibility Chart on page 43).

MH FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH 20W T4/T4.5
CATALOG#WATTAGE/LAMPS DIMENSIONS 10º SpotTM216-20EMH20W CMHT4, G8.5 Bi-Pin27º Narrow FloodTM218-20EMH20W CMHT4, G8.5 Bi-Pin40º FloodTM217-20EMH20W CMH T4, G8.5 Bi-PinCMH 39W T4/T4.510º SpotTM216-39EMH39W CMH T4, G8.5 Bi-Pin27º Narrow FloodTM218-39EMH39W CMH T4, G8.5 Bi-Pin40º FloodTM217-39EMH39W CMH T4, G8.5 Bi-PinCMH 70W T4/T4.510º SpotTM216-70EMH70W CMH T4, G8.5 Bi-Pin27º Narrow FloodTM218-70EMH70W CMH T4, G8.5 Bi-Pin40º FloodTM217-70EMH70W CMH T4, G8.5 Bi-Pin

6 13/16"4 3/4"7 1/16" 2 1/2"

All MHvfixtures may be used with T43 Monopoint Canopy. For complete catalog number, specify finish when ordering fixture - ordering example: TM216-20EMH- BL Conix Series is also available in halogen line and low voltage. See website for details, www.junolightinggroup.com

18
