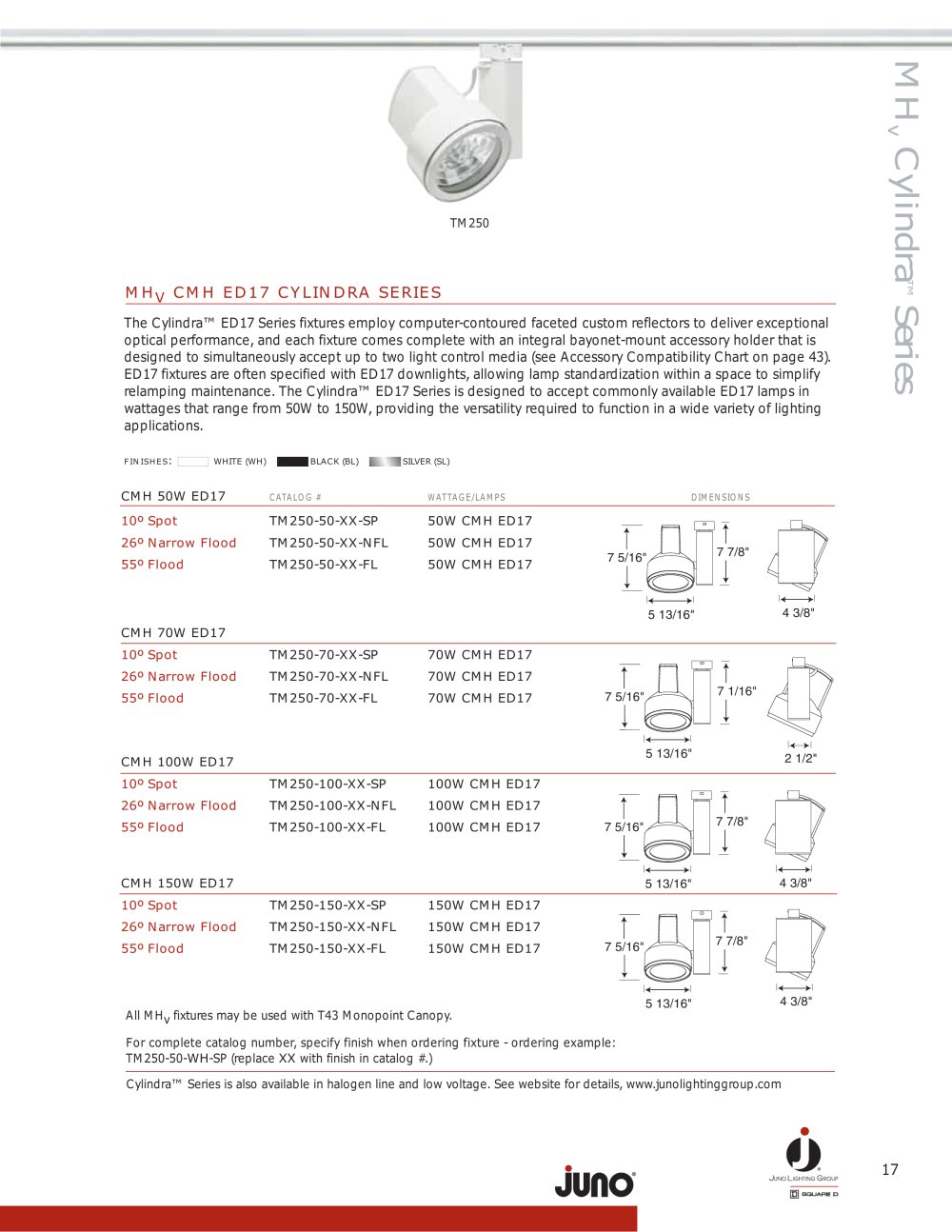

CMH ED17 CYLINDRASERIES

The Cylindra™ ED17 Series fixtures employ computer-contoured faceted custom reflectors to deliver exceptionaloptical performance, and each fixture comes complete with an integral bayonet-mount accessory holder that is designed to simultaneously accept up to two light control media (see Accessory Compatibility Chart on page 43). ED17 fixtures are often specified with ED17 downlights, allowing lamp standardization within a space to simplify relamping maintenance. The Cylindra™ ED17 Series is designed to accept commonly available ED17 lamps inwattages that range from 50W to 150W, providing the versatility required to function in a wide variety of lightingapplications.

FINISHES : WHITE (WH)BLACK (BL)SILVER (SL) CMH 50W ED17 CATALOG#WATTAGE/LAMPS DIMENSIONS 10º SpotTM250-50-XX-SP50W CMH ED17 26º Narrow FloodTM250-50-XX-NFL50W CMH ED1755º FloodTM250-50-XX-FL50W CMH ED17 CMH 70W ED1710º SpotTM250-70-XX-SP70W CMH ED17 26º Narrow FloodTM250-70-XX-NFL70W CMH ED1755º FloodTM250-70-XX-FL70W CMH ED17CMH 100W ED1710º SpotTM250-100-XX-SP100W CMH ED17 26º Narrow FloodTM250-100-XX-NFL100W CMH ED1755º FloodTM250-100-XX-FL100W CMH ED17CMH 150W ED17 10º SpotTM250-150-XX-SP150W CMH ED17 26º Narrow FloodTM250-150-XX-NFL150W CMH ED17 55º FloodTM250-150-XX-FL150W CMH ED17 7 5/16"5 13/16" 7 7/8" 4 3/8" 7 5/16"5 13/16" 7 1/16" 2 1/2" 7 5/16"5 13/16" 7 7/8" 4 3/8" 7 5/16"5 13/16" 7 7/8" 4 3/8"
All MHvfixtures may be used with T43 Monopoint Canopy. For complete catalog number, specify finish when ordering fixture - ordering example: TM250-50- WH -SP (replace XX with finish in catalog .) Cylindra™ Series is also available in halogen line and low voltage. See website for details, www.junolightinggroup.com
