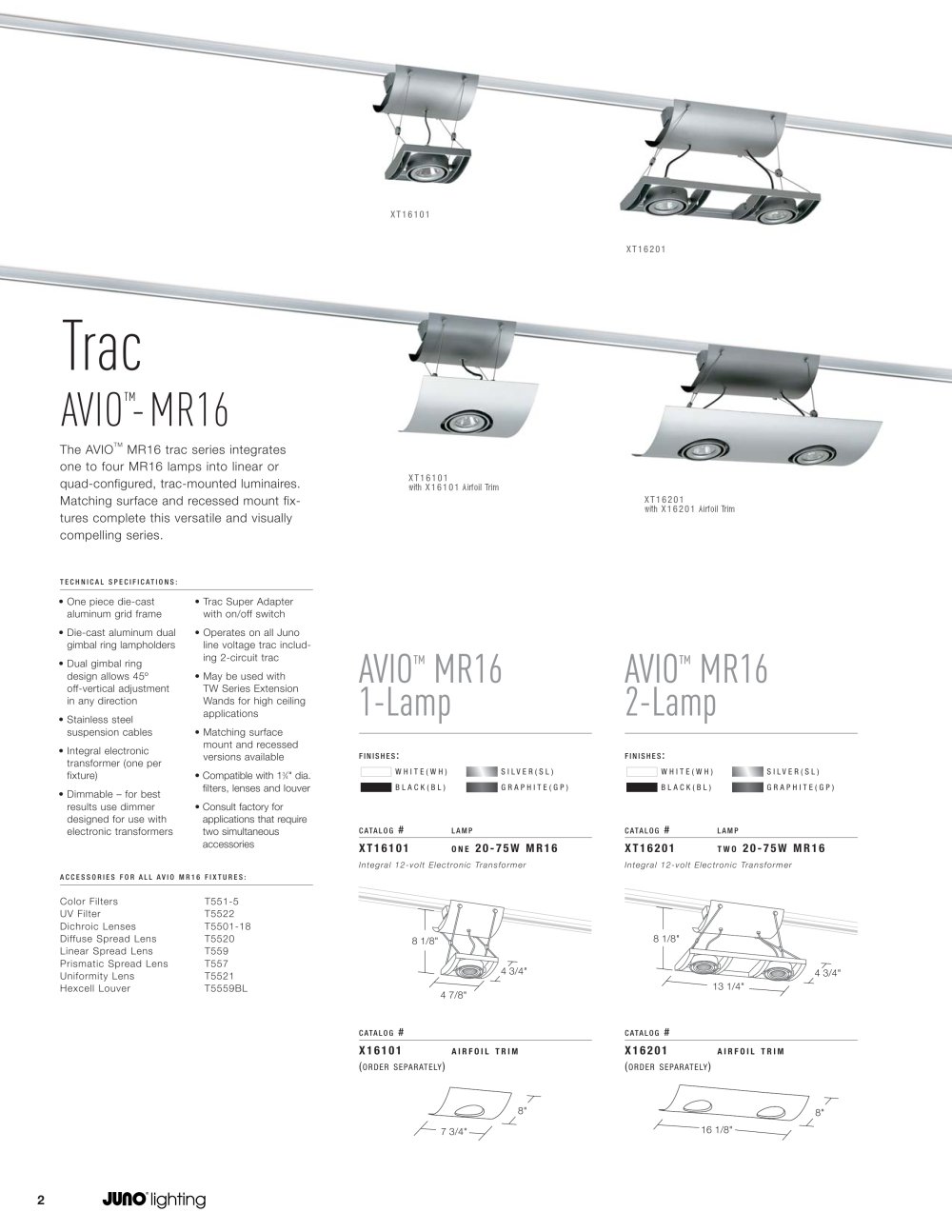

Trac

TM The AVIO

AVIO

MR16 trac series integrates one to four MR16 lamps into linear or quad-configured, trac-mounted luminaires. Matching surface and recessed mount fix- tures complete this versatile and visually compelling series.

-MR16

with X16101 AirfoilTrim with X16201 AirfoilTrim TECHNICAL SPECIFICATIONS: • One piece die-cast aluminum grid frame• Die-cast aluminum dual gimbal ring lampholders• Dual gimbal ring design allows 45º off-vertical adjustment in any direction• Stainless steel suspension cables• Integral electronictransformer (one per fixture)• Dimmable – for bestresults use dimmer designed for use with electronic transformers • Trac Super Adapter with on/off switch• Operates on all Juno line voltage trac includ- ing 2-circuit trac• May be used with TW Series Extension Wands for high ceiling applications• Matching surface mount and recessed versions available• Compatible with 1

AVIO

TM

MR16 AVIO

TM

MR16 1-Lamp 2-Lamp

FINISHES : FINISHES : 3 â„ 4 " dia.filters, lenses and louver• Consult factory for applications that require two simultaneous accessories WHITE(WH)SILVER(SL) BLACK(BL)GRAPHITE(GP) WHITE(WH)SILVER(SL)BLACK(BL)GRAPHITE(GP) CATALOG # LAMP CATALOG # LAMP XT16101
ONE 20-75W MR16 XT16201
TWO 20-75W MR16
Integral 12-volt Electronic Transformer Integral 12-volt Electronic Transformer ACCESSORIES FOR ALL AVIO MR16 FIXTURES: Color FiltersT551-5UV FilterT5522 Dichroic LensesT5501-18 Diffuse Spread LensT5520 Linear Spread LensT559 Prismatic Spread LensT557 Uniformity LensT5521 Hexcell LouverT5559BL 8 1/8"4 7/8"4 3/4" 8 1/8"13 1/4"4 3/4" CATALOG # CATALOG # X16101
AIRFOILTRIM X16201
AIRFOILTRIM (
ORDERSEPARATELY ) (
ORDERSEPARATELY )
8" 7 3/4"8" 16 1/8"

2
