Recessed

AVIO

TM The AVIO

MR16 recessed series integrates one to four MR16 lamps into linear or quad- configured recessed luminaires. Matching trac and surface mount fixtures complete this versatile and visually compelling series.

-MR16

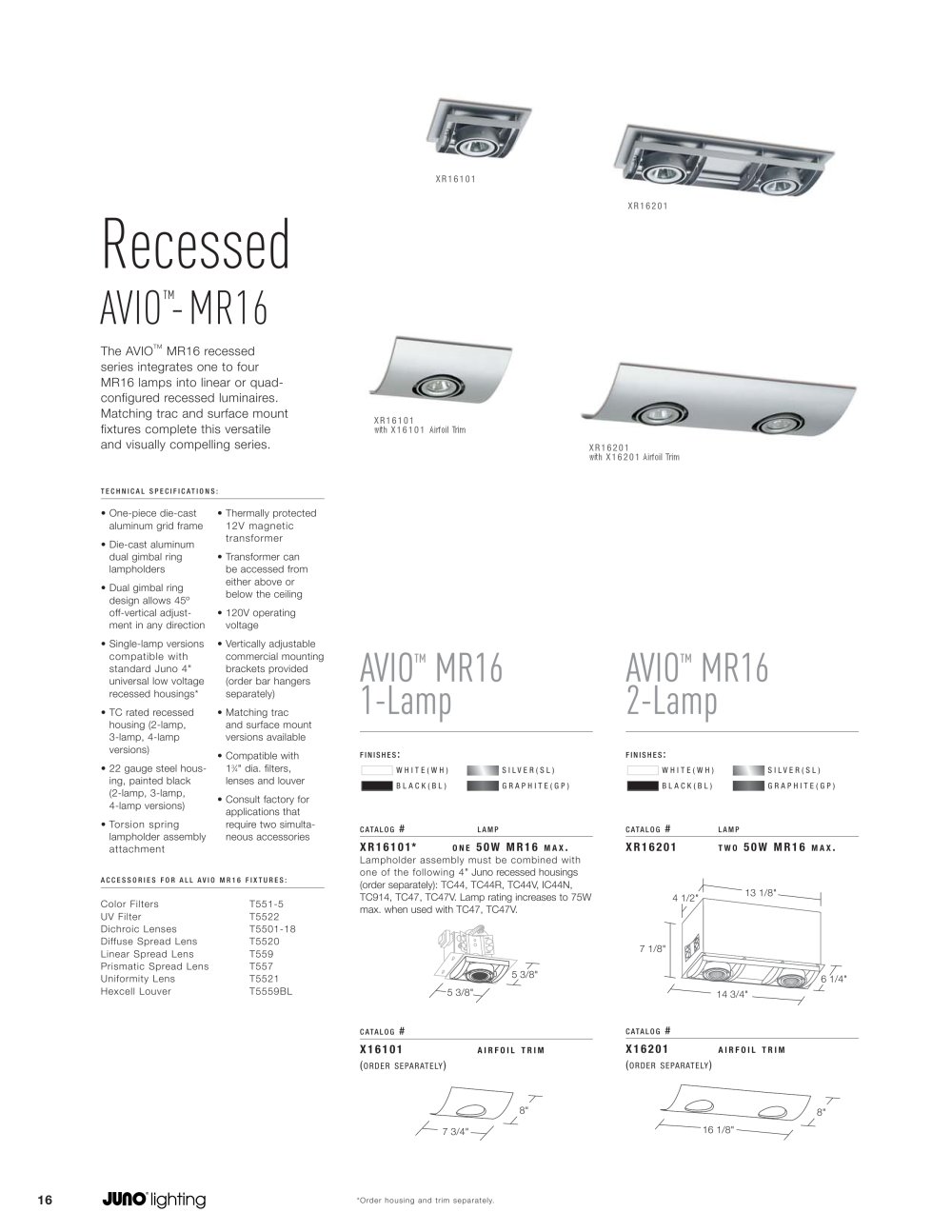

with X16101 AirfoilTrim with X16201 AirfoilTrim TECHNICAL SPECIFICATIONS: • One-piece die-cast aluminum grid frame• Die-cast aluminumdual gimbal ring lampholders• Dual gimbal ringdesign allows 45º off-vertical adjust-ment in any direction• Single-lamp versionscompatible with standard Juno 4"universal low voltage recessed housings*• TC rated recessedhousing (2-lamp, 3-lamp, 4-lamp versions)• 22 gauge steel hous-ing, painted black (2-lamp, 3-lamp, 4-lamp versions)• Torsion springlampholder assembly attachment • Thermally protected12V magnetic transformer• Transformer can be accessed from either above or below the ceiling• 120V operating voltage• Vertically adjustablecommercial mounting brackets provided(order bar hangersseparately)• Matching trac and surface mount versions available• Compatible with 1

AVIO

TM

MR16 AVIO

TM

MR16 1-Lamp 2-Lamp

FINISHES : FINISHES : 3 â„ 4 " dia. filters, lenses and louver• Consult factory for applications that require two simulta- neous accessories WHITE(WH)SILVER(SL) BLACK(BL)GRAPHITE(GP) WHITE(WH)SILVER(SL)BLACK(BL)GRAPHITE(GP) CATALOG # LAMP CATALOG # LAMP XR16101*
ONE 50W MR16
MAX . XR16201
TWO 50W MR16
MAX .
Lampholder assembly must be combined withone of the following 4 ACCESSORIES FOR ALL AVIO MR16 FIXTURES: " Juno recessed housings(order separately): TC44, TC44R, TC44V, IC44N,TC914, TC47, TC47V. Lamp rating increases to 75Wmax. when used with TC47, TC47V. Color FiltersT551-5UV FilterT5522 Dichroic LensesT5501-18 Diffuse Spread LensT5520 Linear Spread LensT559 Prismatic Spread LensT557 Uniformity LensT5521 Hexcell LouverT5559BL 4 1/2" 13 1/8"7 1/8" 5 3/8" 6 1/4" 5 3/8" 14 3/4" CATALOG # CATALOG # X16101
AIRFOILTRIM X16201
AIRFOILTRIM (
ORDERSEPARATELY ) (
ORDERSEPARATELY )
8" 7 3/4"8" 16 1/8"

16

*Order housing and trim separately.
