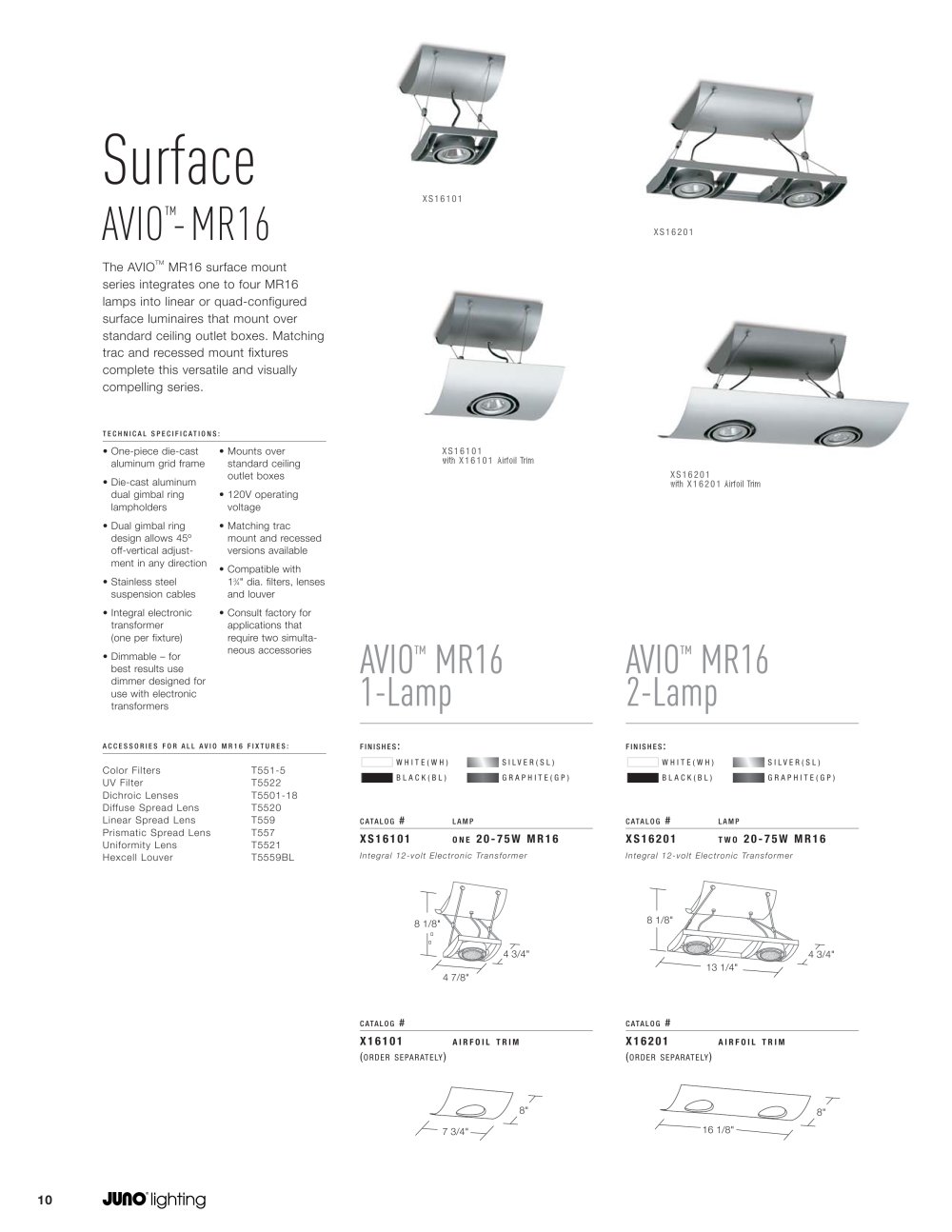

Surface

XS16101 XS16101

AVIO

TM

-MR16

XS16201 XS16201

The AVIO

TM

MR16 surface mount series integrates one to four MR16 lamps into linear or quad-configured surface luminaires that mount over standard ceiling outlet boxes. Matching trac and recessed mount fixtures complete this versatile and visually compelling series.

TECHNICAL SPECIFICATIONS: • One-piece die-cast aluminum grid frame• Die-cast aluminumdual gimbal ring lampholders• Dual gimbal ringdesign allows 45º off-vertical adjust-ment in any direction• Stainless steel suspension cables• Integral electronictransformer (one per fixture)• Dimmable – for best results use dimmer designed for use with electronic transformers • Mounts over standard ceiling outlet boxes• 120V operating voltage• Matching trac mount and recessed versions available• Compatible with 1 with X16101 AirfoilTrim with X16201 AirfoilTrim 3 â�„ 4 " dia. filters, lensesand louver• Consult factory for applications that require two simulta- neous accessories

AVIO

TM

MR16 AVIO

TM

MR16 1-Lamp 2-Lamp

ACCESSORIES FOR ALL AVIO MR16 FIXTURES: FINISHES : FINISHES : WHITE(WH)SILVER(SL) BLACK(BL)GRAPHITE(GP) WHITE(WH)SILVER(SL)BLACK(BL)GRAPHITE(GP) Color FiltersT551-5UV FilterT5522 Dichroic LensesT5501-18 Diffuse Spread LensT5520 Linear Spread LensT559 Prismatic Spread LensT557 Uniformity LensT5521 Hexcell LouverT5559BL CATALOG # LAMP CATALOG # LAMP XS16101
ONE 20-75W MR16 XS16201
TWO 20-75W MR16
Integral 12-volt Electronic Transformer Integral 12-volt Electronic Transformer 8 1/8"4 7/8"4 3/4" 8 1/8"13 1/4"4 3/4" CATALOG # CATALOG # X16101
AIRFOILTRIM X16201
AIRFOILTRIM (
ORDERSEPARATELY ) (
ORDERSEPARATELY )
8" 7 3/4"8" 16 1/8"
