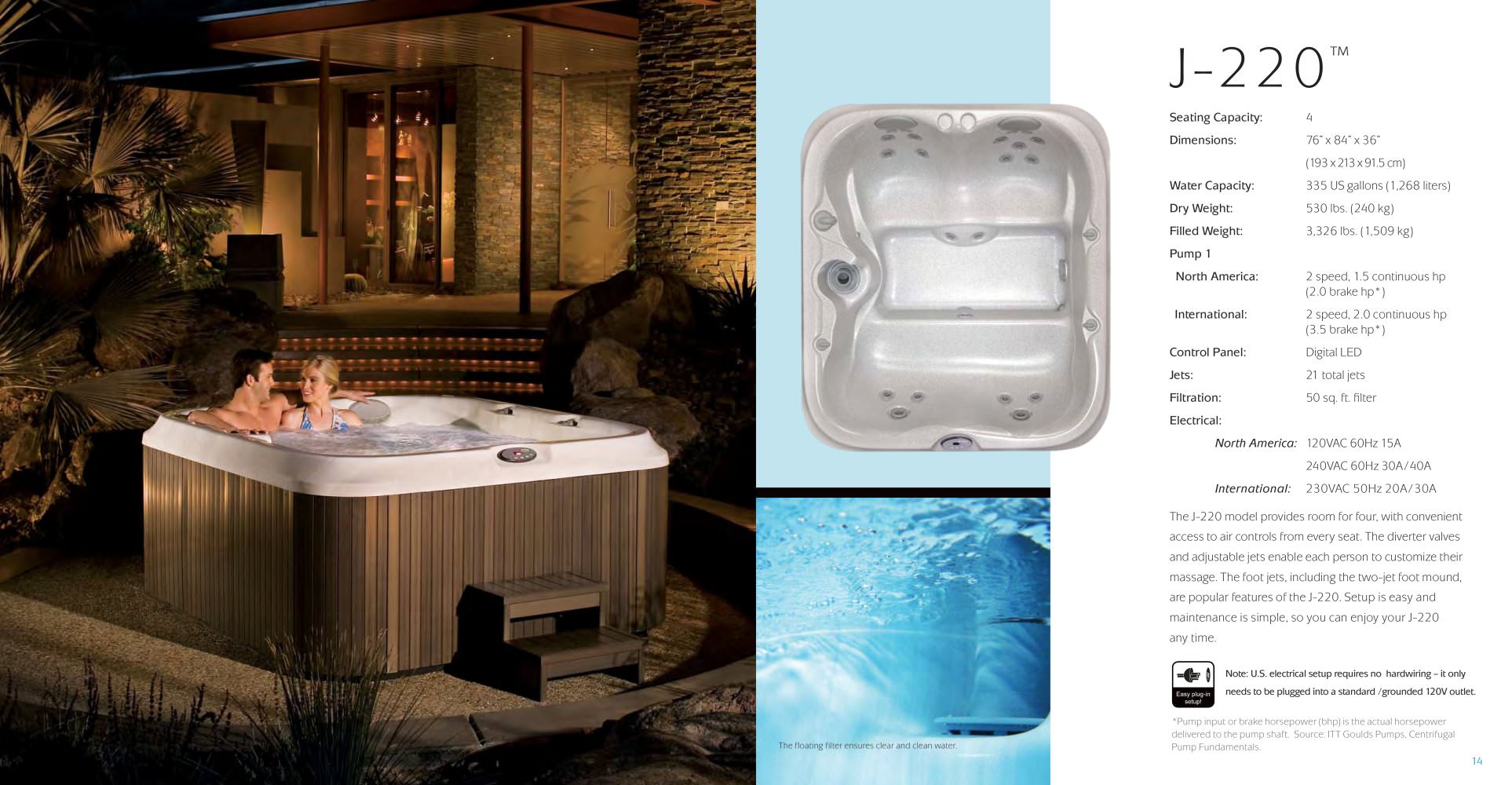

J-220
TM
Seating Capacity: Dimensions:
Water Capacity: Dry Weight: Filled Weight: Pump 1 North America:
International:
Control Panel furniture: Jets:
Filtration: Electrical:
North America:
International:
4
76" x 84" x 36"
(193 x 213 x 91.5 cm)
335 US gallons (1,268 liters)
530 lbs. (240 kg)
3,326 lbs. (1,509 kg)
2 speed, 1.5 continuous hp (2.0 brake hp*)
2 speed, 2.0 continuous hp (3.5 brake hp*)
Digital LED
21 total jets
50 sq. ft. filter
120VAC 60Hz 15A 240VAC 60Hz 30A/40A 2 30VAC 50Hz 20A/30A
The J-220 model provides room for four, with convenient access to air controls from every seat. The diverter valves and adjustable jets enable each person to customize their massage. The foot jets, including the two-jet foot mound, are popular features of the J-220. Setup is easy and maintenance is simple, so you can enjoy your J-220 any time.
Note: U.S. electrical setup requires no hardwiring - it only needs to be plugged into a standard /grounded 120V outlet.
Easy plug-in setup!
*Pump input or brake horsepower (bhp) is the actual horsepower delivered to the pump shaft. Source: ITT Goulds Pumps, Centrifugal Pump Fundamentals.
