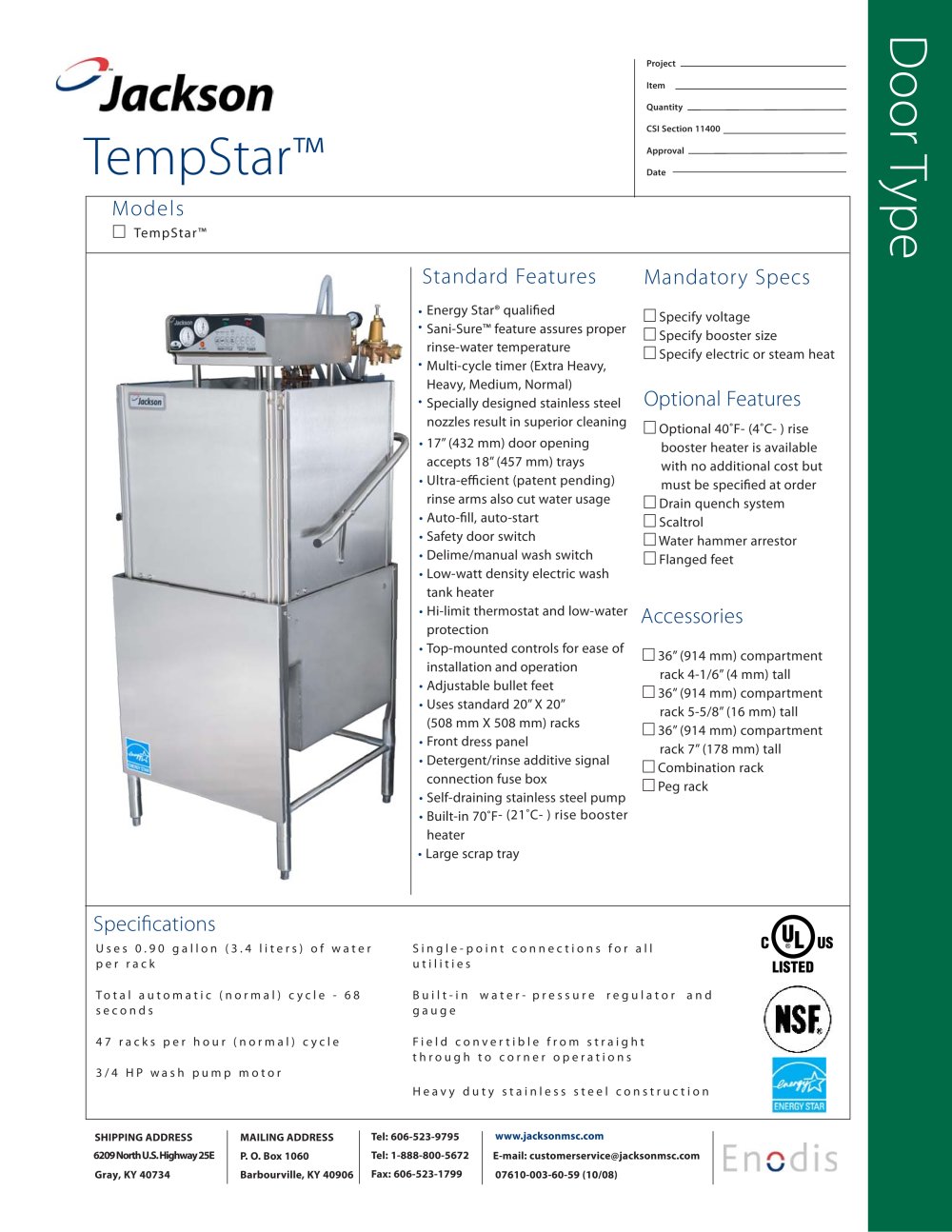

Jackson - 19840
/ 2
See other catalogues for Jackson
Text version of the page
Project . Item _
o r
"D CD
Jackson
TempStar™
Quantity _
CSI Section 11400 _
Approval _
Date -
Models
□ TempStar™
Standard Features
• Energy Star® qualified
• Sani-Sure™ feature assures proper rinse-water temperature
• Multi-cycle timer (Extra Heavy, Heavy, Medium, Normal)
• Specially designed stainless steel nozzles result in superior cleaning
• 17" (432 mm) building door opening accepts 18" (457 mm) trays
• Ultra-efficient (patent pending) rinse arms also cut water usage
• Auto-fill, auto-start
• Safety door switch
• Delime/manual wash switch
• Low-watt density electric wash tank heater
• Hi-limit thermostat and low-water protection
• Top-mounted controls for ease of installation and operation
• Adjustable bullet feet
• Uses standard 20" X 20" (508 mm X 508 mm) racks
• Front dress panel
• Detergent/rinse additive signal connection fuse box
• Self-draining stainless steel pump
• Built-in 70°F- (21°C- ) rise booster heater
• Large scrap tray
Mandatory Specs
□ Specify voltage
□ Specify booster size
□ Specify electric or steam heat
Optional Features
□ Optional 40°F- (4°C- ) rise booster heater is available with no additional cost but must be specified at order
□ Drain quench system
□ Scaltrol
□ Water hammer arrestor
□ Flanged feet
Accessories
□ 36" (914 mm) compartment rack 4-1/6" (4 mm) tall
□ 36" (914 mm) compartment rack 5-5/8" (16 mm) tall
□ 36" (914 mm) compartment rack 7" (178 mm) tall
□ Combination rack
□ Peg rack
Specifications
Uses 0.90 gallon (3.4 liters) of water per rack
Total automatic (normal) cycle - 68
seconds
47 racks per hour (normal) cycle 3/4 HP wash pump motor
Single-point connections for all utilities
Built-in water- pressure regulator and gauge
Field convertible from straight through to corner operations
Heavy duty stainless steel construction
www.jacksonmsc.com
E-mail: customerservice@jacksonmsc.com
07610-003-60-59 (10/08)
Tel: 606-523-9795 Tel: 1-888-800-5672
Fax: 606-523-1799
SHIPPING ADDRESS 6209 North U.S. Highway 25E Gray, KY 40734
MAILING ADDRESS
P. O. Box 1060 Barbourville, KY 40906
Enodis
