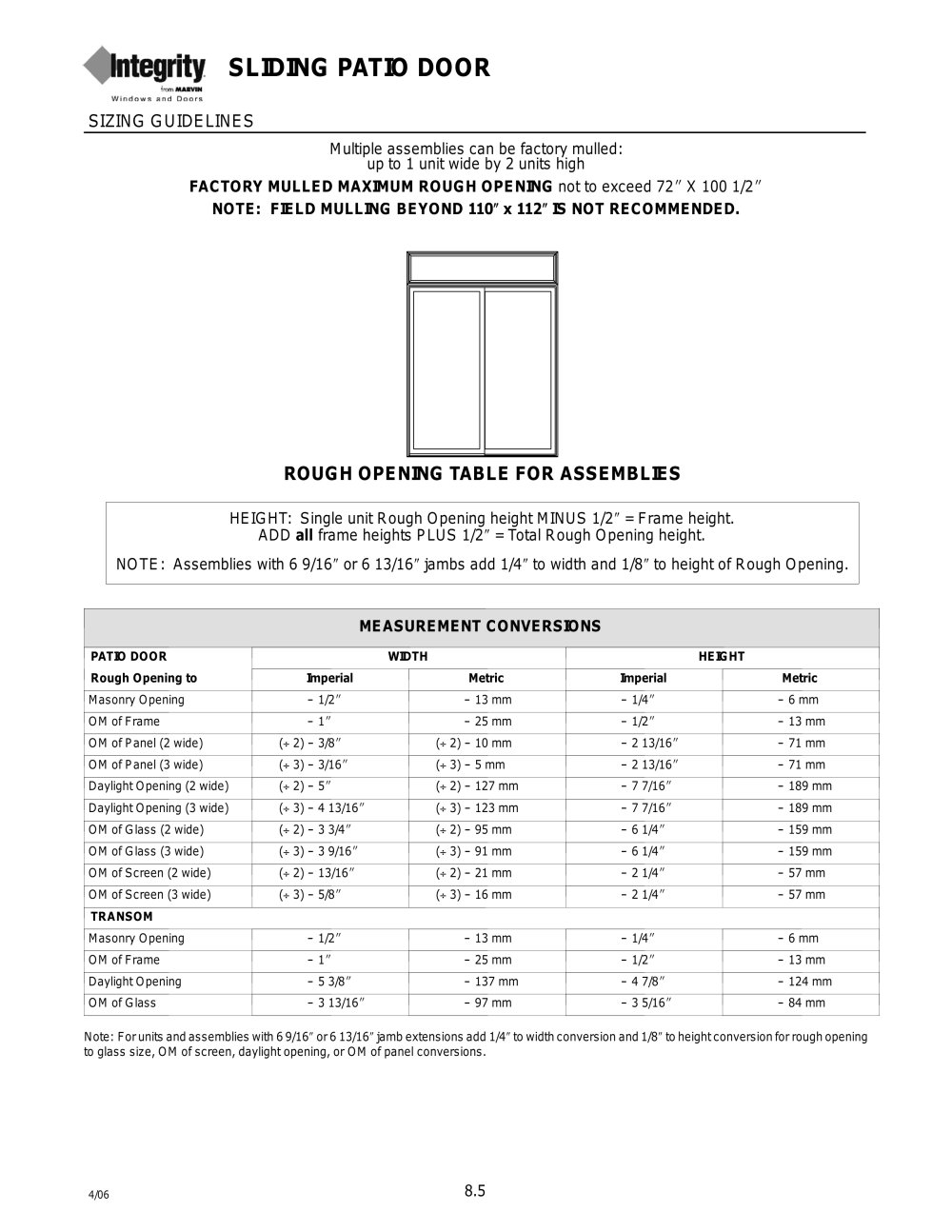

INTEGRITY - 646, 19861

/ 14

See other catalogues for INTEGRITY

Text version of the page

Integrity SLIDING PATIO DOOR

iranJUWH

Windows unci Doors supplier

SIZING GUIDELINES_

Multiple assemblies can be factory mulled: up to 1 unit wide by 2 units high

FACTORY MULLED MAXIMUM ROUGH OPENING not to exceed 72" X 100 1/2"

NOTE: FIELD MULLING BEYOND 110" x112" IS NOT RECOMMENDED.

ROUGH OPENING TABLE FOR ASSEMBLIES

HEIGHT: Single unit Rough Opening height MINUS 1/2" = Frame height. ADD all frame heights PLUS 1/2" = Total Rough Opening height.

NOTE: Assemblies with 6 9/16" or 6 13/16" jambs add 1/4" to width and 1/8" to height of Rough Opening.


	MEASUREMENT CONVERSIONS
	PATIO DOOR Rough Opening to	WIDTH		HEIGHT
	PATIO DOOR Rough Opening to	Imperial	Metric	Imperial	Metric
	Masonry Opening	- 1/2"	- 13 mm	- 1/4"	- 6 mm
	OM of Frame	- 1"	- 25 mm	- 1/2"	- 13 mm
	OM of Panel (2 wide)	(+ 2) - 3/8"	(+ 2) - 10 mm	- 2 13/16"	- 71 mm
	OM of Panel (3 wide)	(+ 3)- 3/16"	(+ 3) - 5 mm	- 2 13/16"	- 71 mm
	Daylight Opening (2 wide)	(₊ 2) - 5"	(+ 2)- 127 mm	- 7 7/16"	- 189 mm
	Daylight Opening (3 wide)	(+ 3)- 4 13/16"	(+ 3)- 123 mm	- 7 7/16"	- 189 mm
	OM of Glass (2 wide)	(+ 2) - 3 3/4"	(+ 2) - 95 mm	- 6 1/4"	- 159 mm
	OM of Glass (3 wide)	(+ 3)- 3 9/16"	(+ 3) - 91 mm	- 6 1/4"	- 159 mm
	OM of Screen (2 wide)	(+ 2)- 13/16"	(+ 2) - 21 mm	- 2 1/4"	- 57 mm
	OM of Screen (3 wide)	(+ 3) - 5/8"	(+ 3) - 16 mm	- 2 1/4"	- 57 mm
	TRANSOM
	Masonry Opening	- 1/2"	- 13 mm	- 1/4"	- 6 mm
	OM of Frame	- 1"	- 25 mm	- 1/2"	- 13 mm
	Daylight Opening	- 5 3/8"	- 137 mm	- 4 7/8"	- 124 mm
	OM of Glass	- 3 13/16"	- 97 mm	- 3 5/16"	- 84 mm

Note: For units and assemblies with 69/16" or 6 13/16" jamb extensions add 1/4" to width conversion and 1/8" to height conversion for rough opening

to glass size, OM of screen, daylight opening, or OM of panel conversions.

8.5

4/06
