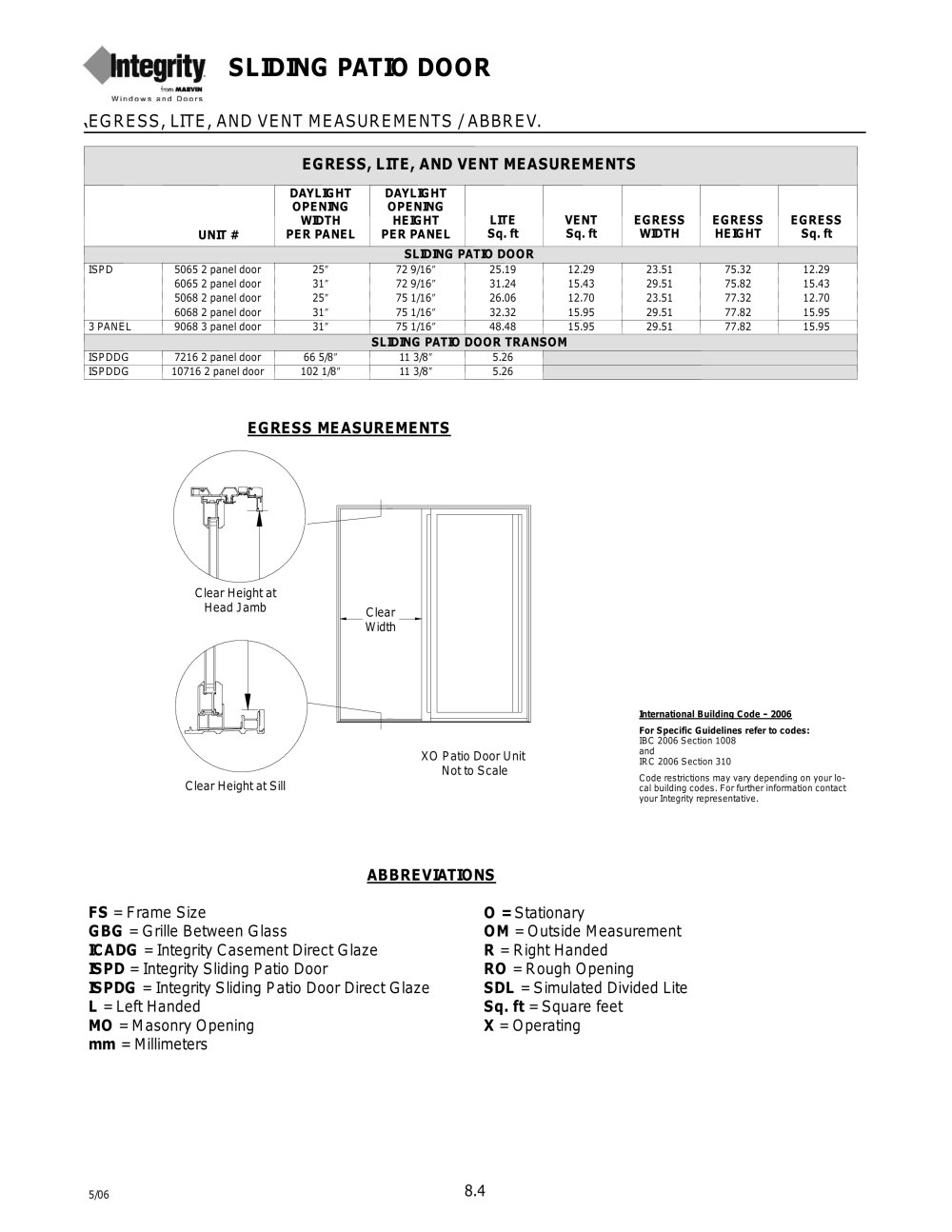

| | | .EGRESS, LITE, AND VENT MEASUREMENTS / ABBREV. | | |
| | | |
| | | | | | | | | | | | | | | | | EGRESS, LITE, AND VENT MEASUREMENTS | | | | | | DAYLIGHT | DAYLIGHT | | | | | | | | | | | OPENING | OPENING | | | | | | | | | | | WIDTH | HEIGHT | LITE | VENT | EGRESS | EGRESS | EGRESS | | | | | UNIT # | | PER PANEL | Sq.ft | Sq. ft | WIDTH | HEIGHT | Sq. ft | | | | SLIDING PATIO DOOR | | | | ISPD | 5065 2 panel door | 25" | 72 9/16" | 25.19 | 12.29 | 23.51 | 75.32 | 12.29 | | | | | 6065 2 panel door | 31" | 72 9/16" | 31.24 | 15.43 | 29.51 | 75.82 | 15.43 | | | | | 5068 2 panel door | 25" | 75 1/16" | 26.06 | 12.70 | 23.51 | 77.32 | 12.70 | | | | | 6068 2 panel door | 31" | 75 1/16" | 32.32 | 15.95 | 29.51 | 77.82 | 15.95 | | | | 3 PANEL | 9068 3 panel door | 31" | 75 1/16" | 48.48 | 15.95 | 29.51 | 77.82 | 15.95 | | | | SLIDING PATIO DOOR TRANSOM | | | | ISPDDG | 7216 2 panel door | 66 5/8" | 11 3/8" | 5 26 | | | | | ISPDDG | 10716 2 panel door | 102 1/8" | 11 3/8" | 5.26 | | | | | | | | | | | | | | | | | |
| | | |
| | | EGRESS MEASUREMENTS | | |
| | | |
| | | International Building Code - 2006 For Specific Guidelines refer to codes: IBC 2006 Section 1008 and IRC 2006 Section 310 Code restrictions may vary depending on your local building codes. For further information contact your Integrity representative. | | |
| | | XO Patio Door Unit Not to Scale | | |
| | | |
| | | Clear Height at Sill | | |
| | | |
| | | |
| | | ABBREVIATIONS | | |
| | | |
| | | FS = Frame Size ICADG = Integrity Casement Direct Glaze ISPD = Integrity Sliding Patio Door ISPDG = Integrity Sliding Patio Door Direct Glaze L = Left Handed MO = Masonry Opening mm = Millimeters | | O=Stationary OM = Outside Measurement R = Right Handed RO = Rough Opening SDL = Simulated Divided Lite Sq. ft = Square feet X = Operating | | |
| | | |
| | | |
| | | 8.4 | | |
| | | 5/06 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | | | | | | | | |
