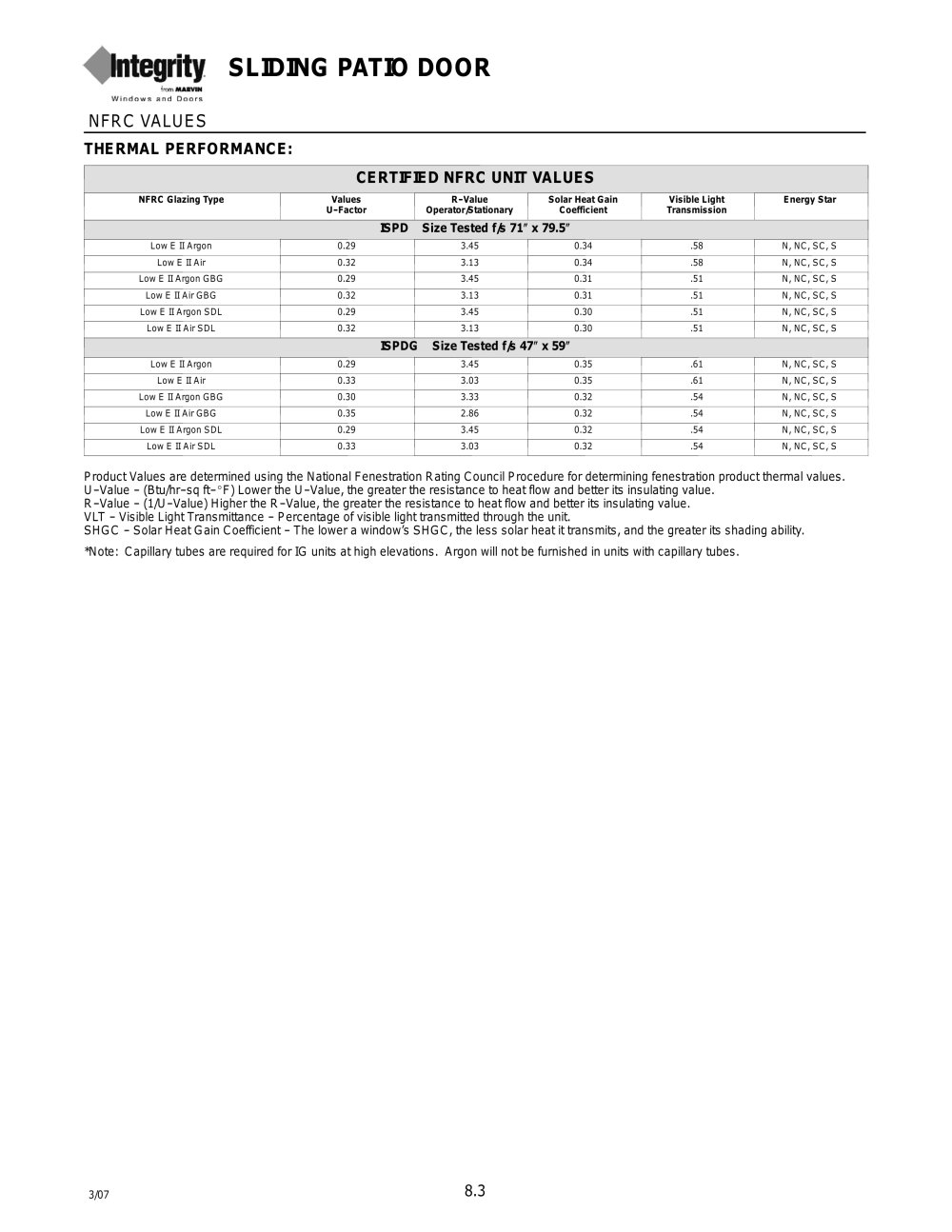

Integrity SLIDING PATIO DOOR MANUFACTURERS

iranJUWH

Windows and Doors manufacturer

NFRC VALUES

THERMAL PERFORMANCE:


CERTIFIED NFRC UNIT VALUES
NFRC Glazing Type	Values U-Factor	R-Value Operator/Stationary	Solar Heat Gain Coefficient	Visible Light Transmission	Energy Star
	ISPD	Size Tested f/s 71" x 79.5"
Low E II Argon	0.29	3.45	0.34	.58	N, NC, SC, S
Low E II Air	0.32	3.13	0.34	.58	N, NC, SC, S
Low E II Argon GBG	0.29	3.45	0.31	.51	N, NC, SC, S
LowE II Air GBG	0.32	3.13	0.31	.51	N, NC, SC, S
Low E II Argon SDL	0.29	3.45	0.30	.51	N, NC, SC, S
LowE II Air SDL	0.32	3.13	0.30	.51	N, NC, SC, S
ISPDG Size Tested f/s 47" x59"
Low E II Argon	0.29	3.45	0.35	.61	N, NC, SC, S
Low E II Air	0.33	3.03	0.35	.61	N, NC, SC, S
Low E II Argon GBG	0.30	3.33	0.32	.54	N, NC, SC, S
LowE II Air GBG	0.35	2.86	0.32	.54	N, NC, SC, S
Low E II Argon SDL	0.29	3.45	0.32	.54	N, NC, SC, S
LowE II Air SDL	0.33	3.03	0.32	.54	N, NC, SC, S

Product Values are determined using the National Fenestration Rating Council Procedure for determining fenestration product thermal values. U-Value - (Btu/hr-sq ft-°F) Lower the U-Value, the greater the resistance to heat flow and better its insulating value. R-Value - (1/U-Value) Higher the R-Value, the greater the resistance to heat flow and better its insulating value. VLT - Visible Light Transmittance - Percentage of visible light transmitted through the unit.

SHGC - Solar Heat Gain Coefficient - The lower a window's SHGC, the less solar heat it transmits, and the greater its shading ability. *Note: Capillary tubes are required for IG units at high elevations. Argon will not be furnished in units with capillary tubes.

8.3

3/07
