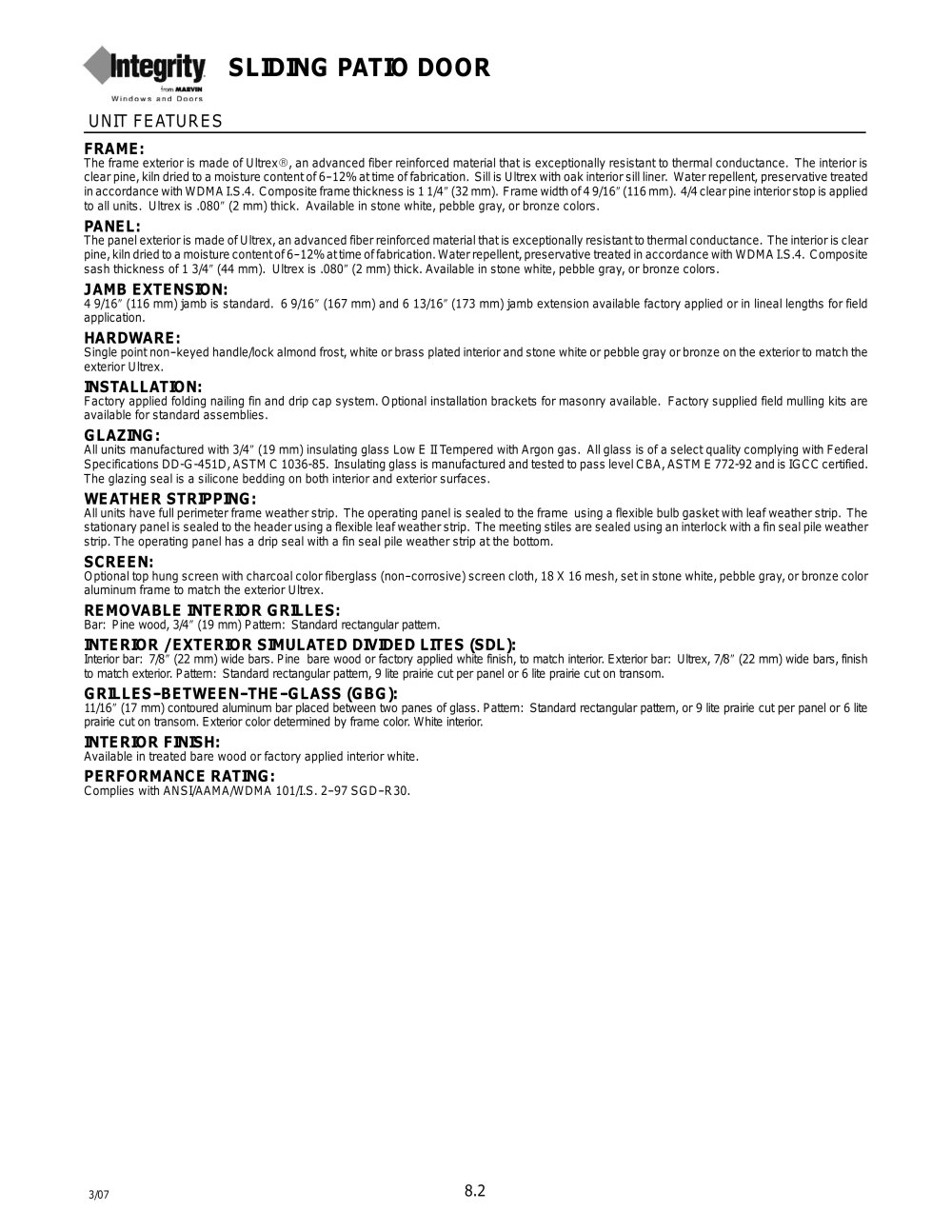

| FRAME: The frame exterior is made of Ultrex®, an advanced fiber reinforced material that is exceptionally resistant to thermal conductance. The interior is clear pine, kiln dried to a moisture content of 6-12% at time of fabrication. Sill is Ultrex with oak interior sill liner. Water repellent, preservative treated in accordance with WDMA I.S.4. Composite frame thickness is 1 1/4" (32 mm). Frame width of 49/16" (116 mm). 4/4 clear pine interior stop is applied to all units. Ultrex is .080" (2 mm) thick. Available in stone white, pebble gray, or bronze colors. PANEL: The panel exterior is made of Ultrex, an advanced fiber reinforced material that is exceptionally resistant to thermal conductance. The interior is clear pine, kiln dried to a moisture content of 6-12% at time of fabrication. Water repellent, preservative treated in accordance with WDMA I.S.4. Composite sash thickness of 1 3/4" (44 mm). Ultrex is .080" (2 mm) thick. Available in stone white, pebble gray, or bronze colors. JAMB EXTENSION: 4 9/16" (116 mm) jamb is standard. 6 9/16" (167 mm) and 6 13/16" (173 mm) jamb extension available factory applied or in lineal lengths for field application. HARDWARE: Single point non -keyed handle/lock almond frost, white or brass plated interior and stone white or pebble gray or bronze on the exterior to match the exterior Ultrex. INSTALLATION: Factory applied folding nailing fin and drip cap system. Optional installation brackets for masonry available. Factory supplied field mulling kits are available for standard assemblies. GLAZING: All units manufactured with 3/4" (19 mm) insulating glass Low E II Tempered with Argon gas. All glass is of a select quality complying with Federal Specifications DD-G-451D, ASTM C 1036-85. Insulating glass is manufactured and tested to pass level CBA, ASTM E 772-92 and is IGCC certified. The glazing seal is a silicone bedding on both interior and exterior surfaces. WEATHER STRIPPING: All units have full perimeter frame weather strip. The operating panel is sealed to the frame using a flexible bulb gasket with leaf weather strip. The stationary panel is sealed to the header using a flexible leaf weather strip. The meeting stiles are sealed using an interlock with a fin seal pile weather strip. The operating panel has a drip seal with a fin seal pile weather strip at the bottom. SCREEN: Optional top hung screen with charcoal color fiberglass (non -corrosive) screen cloth, 18 X 16 mesh, set in stone white, pebble gray, or bronze color aluminum frame to match the exterior Ultrex. REMOVABLE INTERIOR GRILLES: Bar: Pine wood, 3/4" (19 mm) Pattern: Standard rectangular pattern. INTERIOR / EXTERIOR SIMULATED DIVIDED LITES (SDL): Interior bar: 7/8" (22 mm) wide bars. Pine bare wood or factory applied white finish, to match interior. Exterior bar: Ultrex, 7/8" (22 mm) wide bars, finish to match exterior. Pattern: Standard rectangular pattern, 9 lite prairie cut per panel or 6 lite prairie cut on transom. GRILLES-BETWEEN-THE-GLASS (GBG): 11/16" (17 mm) contoured aluminum bar placed between two panes of glass. Pattern: Standard rectangular pattern, or 9 lite prairie cut per panel or 6 lite prairie cut on transom. Exterior color determined by frame color. White interior. INTERIOR FINISH: Available in treated bare wood or factory applied interior white. PERFORMANCE RATING: Complies with ANSI/AAMA/WDMA 101/I.S. 2-97 SGD-R30. |
