| | | Integrity wood ultrex double hung | | |
| | | |
| | | | | |
| | | |

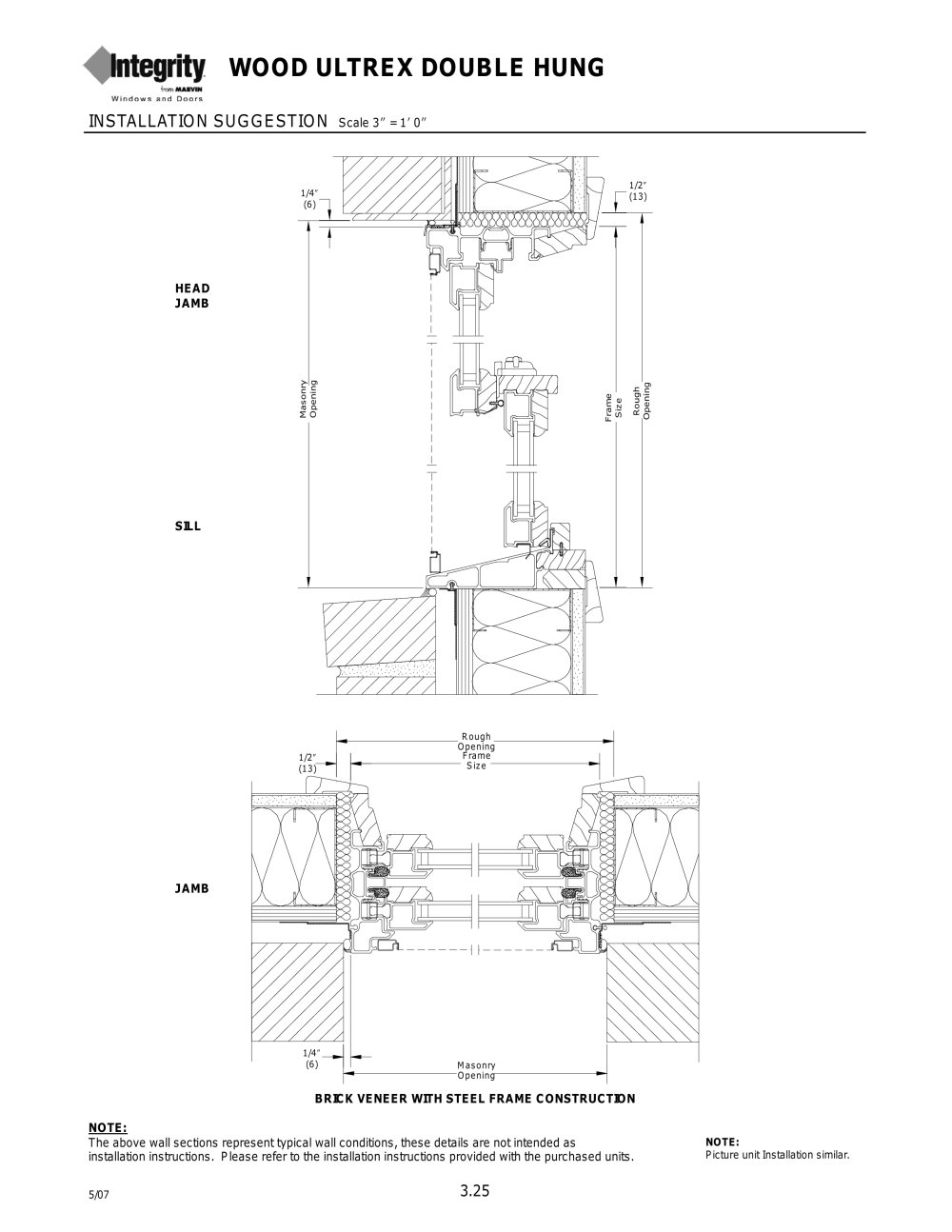

| | | INSTALLATION SUGGESTION Scale3" = 1'0" | | |
| | | |
| | | AMB | | |
| | | |
| | | BRIC VENEER WITH STEEL FRAME CONSTRUCTION | | |
| | | |
| | | NOTE: The above wall sections represent typical wall conditions, these details are not intended as installation instructions. Please refer to the installation instructions provided with the purchased units. | | |
| | | NOTE: Picture unit Installation similar. | | |
| | | |
| | | |
| | | 3.25 | | |
| | | 5/07 | | |
| | | |
| | | |
| | | | | | | | | | | | | | | | | | | | |
