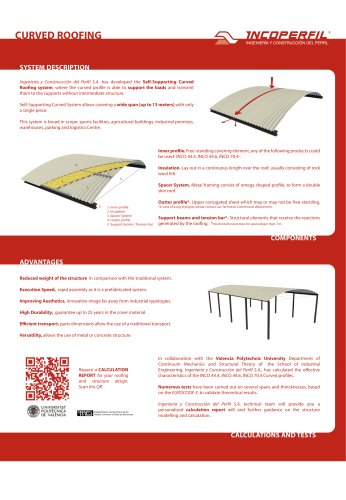

INGENIERÍA Y CONSTRUCCIÓN DEL PERFIL
Ingeniería y Construction del Perfil S.A. has developed the Self-Supporting Curved
Roofing system, where the curved profile is able to support the loads and transmit
them to the supports without intermediate structure.
Self-Supporting Curved System allows covering a wide span (up to 13 meters) with only
a single piece.
This system is broad in scope: sports facilities, agricultural buildings, industrial premises,
warehouses, parking and logistics Centre.
5- 1. Inner profile
3. Spacer System
4. Outter profile
Inner profile. Free-standing covering element, any of the following products could
be used- INCO 44.4, INCO 44.6, INCO 70.4-.
Insulation. Lay out in a continuous length over the roof, usually consisting of rock
Spacer System. Metal framing consist of omega shaped profile, to form a double
Outter profile*. Upper corrugated sheet which may or may not be free-standing.
*/n case of using skylights, please contact our Technical-Commercial department.
Support beams and tension bar*. Structural elements that receive the reactions
5. Support beams/Tension bar generated by the roofing. ^Horizontal tension bars for spans larger than 7 r
Reduced weight of the structure in comparison with the traditional system.
Execution Speed, rapid assembly as it is a prefabricated system.
Improving Aesthetics, innovative image far away from industrial typologies.
High Durability, guarantee up to 25 years in the cover material.
Efficient transport, parts dimensions allow the use of a traditional transport.
Versatility, allows the use of metal or concrete structure.
Request a CALCULATION
REPORT for your roofing
and structure design.
Scan this QR.
In collaboration with the Valencia Polytechnic University Department of
Continuum Mechanics and Structural Theory of the School of Industrial
Engineering, Ingeniería y Construcción del Perfil S.A., has calculated the effective
characteristics of the INCO 44.4, INCO 44.6, INCO 70.4 Curved profiles.
Numerous tests have been carried out on several spans and thincknesses, based
on the EUROCODE-3, to validate theoretical results.
Ingeniería y Construcción del Perfil S.A. technical team will provide you a
personalized calculation report will and further guidance on the structure
modelling and calculation.
