HXMT4 - 6 Pages
www.honeywellvideo.com FEATURES
Multiplexer Operations Spot MonitorDisplay View Mode
Zoom ModeFunctional Operations

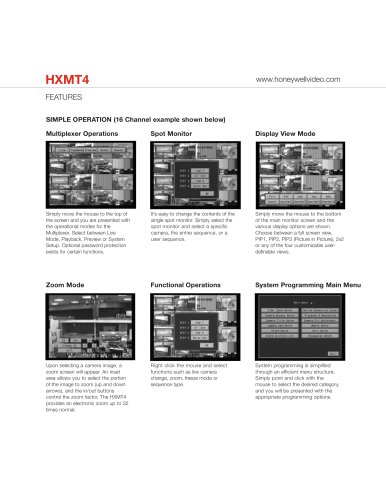

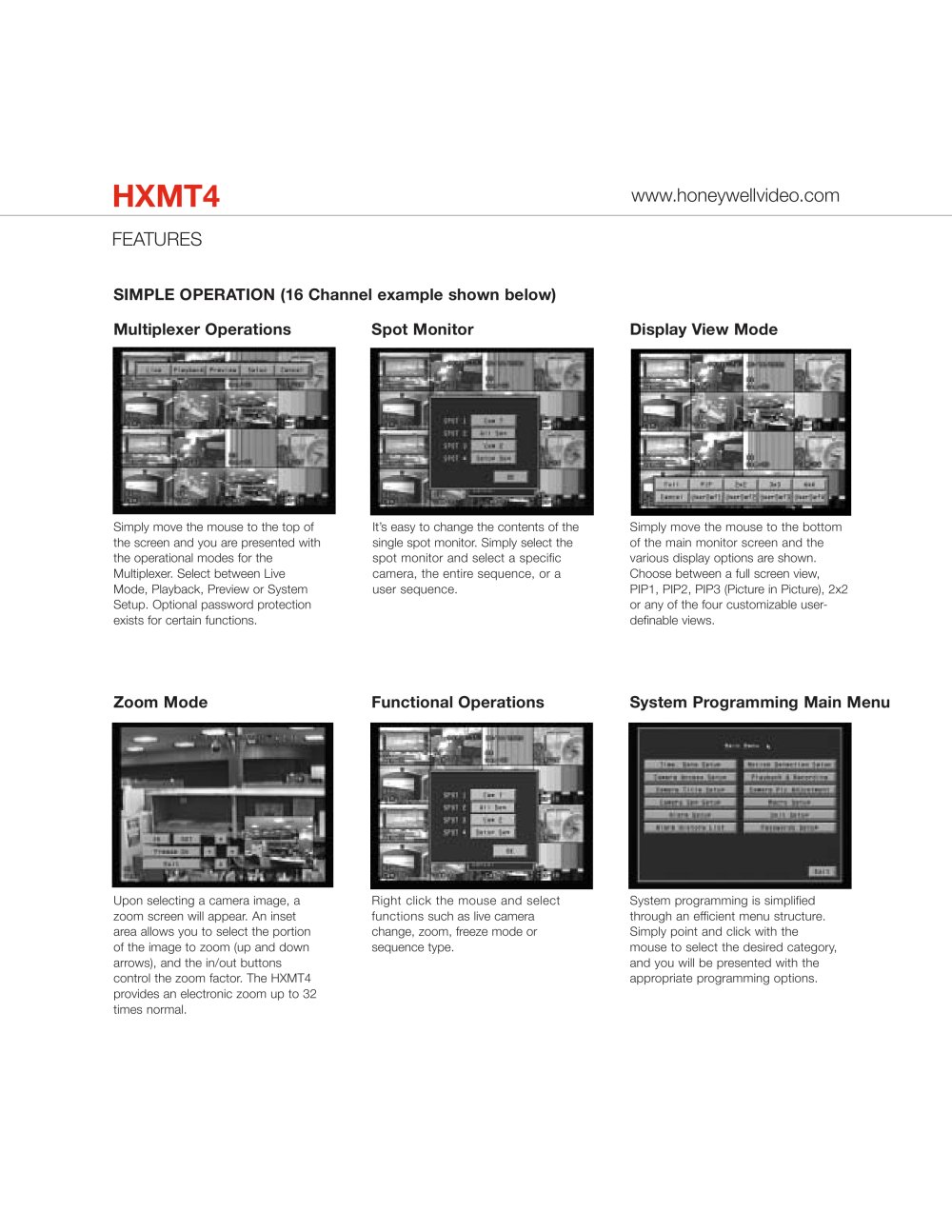

SIMPLE OPERATION (16 Channel example shown below)
Simply move the mouse to the top ofthe screen and you are presented with
the operational modes for the
Multiplexer. Select between Live
Mode, Playback, Preview or System
Setup. Optional password protection
exists for certain functions.
Upon selecting a camera image, azoom screen will appear. An inset
area allows you to select the portion
of the image to zoom (up and down
arrows), and the in/out buttons
control the zoom factor. The HXMT4
provides an electronic zoom up to 32
times normal. Its easy to change the contents of the
single spot monitor. Simply select the
spot monitor and select a specific
camera, the entire sequence, or a
user sequence.Simply move the mouse to the bottomof the main monitor screen and the
various display options are shown.Choose between a full screen view,
PIP1, PIP2, PIP3 (Picture in Picture), 2x2
or any of the four customizable user-
definable views. >
System Programming Main Menu
Right click the mouse and select
functionssuch as live camerachange, zoom, freeze mode or
sequence type. System programming is simplified
through an efficient menu structure.
Simply point and click with the
mouse to select the desired category,
and you will be presented with the
appropriate programming options. >
-
