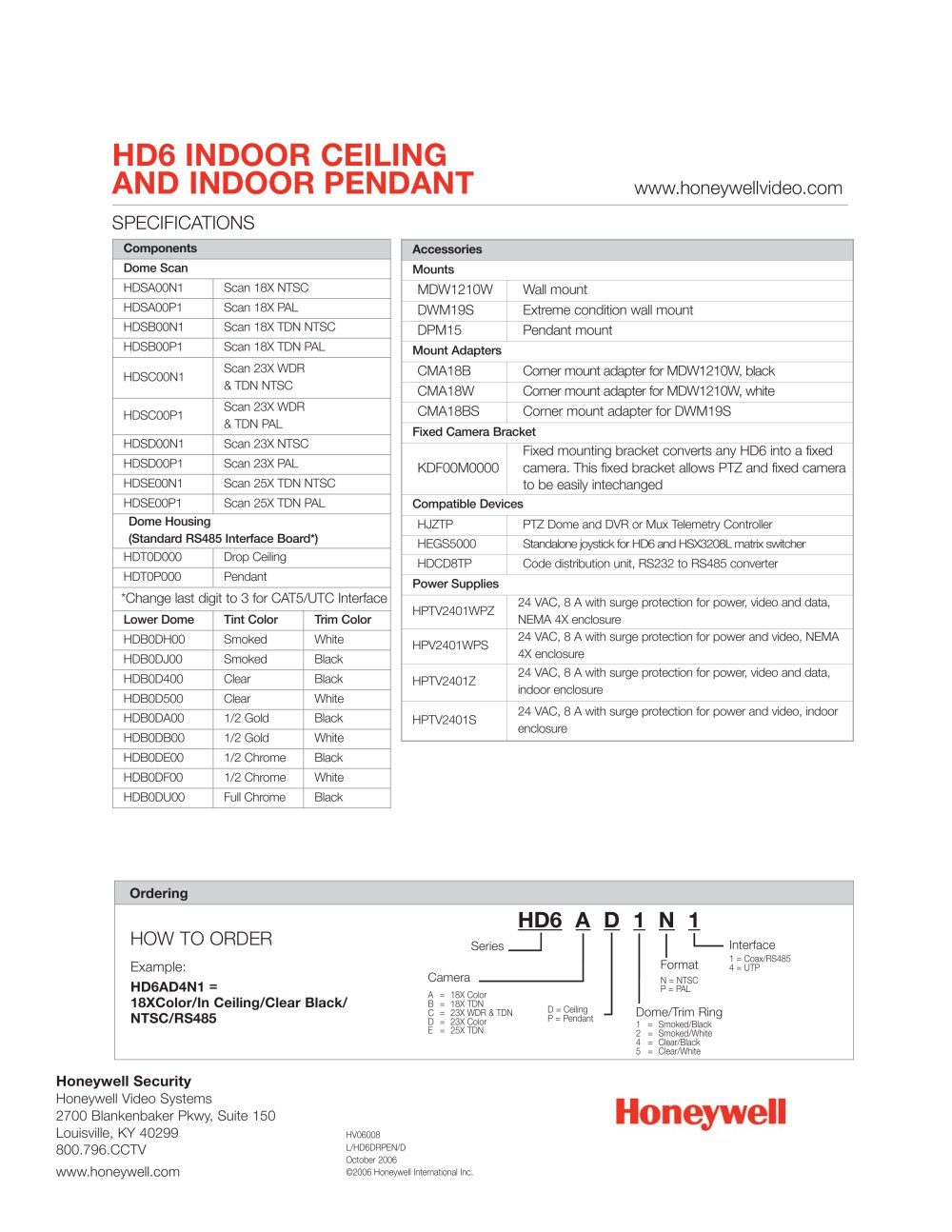

HD6 INDOOR CEILING AND INDOOR PENDANT

www.honeywellvideo.com

SPECIFICATIONS

Components
Dome Scan
HDSA00N1	Scan 18X NTSC
HDSA00P1	Scan 18X PAL
HDSB00N1	Scan 18X TDN NTSC
HDSB00P1	Scan 18X TDN PAL
HDSC00N1	Scan 23X WDR & TDN NTSC
HDSC00P1	Scan 23X WDR & TDN PAL
HDSD00N1	Scan 23X NTSC
HDSD00P1	Scan 23X PAL
HDSE00N1	Scan 25X TDN NTSC
HDSE00P1	Scan 25X TDN PAL
Dome Housing *(Standard RS485 Interface Board)**
HDT0D000	Drop Ceiling
HDT0P000	Pendant
*Change last digit to 3 for CAT5/UTC Interface
Lower Dome	Tint Color	Trim Color
HDB0DH00	Smoked	White
HDB0DJ00	Smoked	Black
HDB0D400	Clear	Black
HDB0D500	Clear	White
HDB0DA00	1/2 Gold	Black
HDB0DB00	1/2 Gold	White
HDB0DE00	1/2 Chrome	Black
HDB0DF00	1/2 Chrome	White
HDB0DU00	Full Chrome	Black

Accessories
Mounts
MDW1210W	Wall mount
DWM19S	Extreme condition wall mount
DPM15	Pendant mount
Mount Adapters
CMA18B	Corner mount adapter for MDW1210W, black
CMA18W	Corner mount adapter for MDW1210W, white
CMA18BS	Corner mount adapter for DWM19S
Fixed Camera Bracket
KDF00M0000	Fixed mounting bracket converts any HD6 into a fixed camera. This fixed bracket allows PTZ and fixed camera to be easily intechanged
Compatible Devices
HJZTP	PTZ Dome and DVR or Mux Telemetry Controller
HEGS5000	Standalone joystick for HD6 and HSX3208L matrx switcher
HDCD8TP	Code distribution unit, RS232 to RS485 converter
Power Supplies
HPTV2401WPZ	24 VAC, 8 A with surge protection for power, video and data, NEMA 4X enclosure
HPV2401WPS	24 VAC, 8 A with surge protection for power and video, NEMA 4X enclosure
HPTV2401Z	24 VAC, 8 A with surge protection for power, video and data, indoor enclosure
HPTV2401S	24 VAC, 8 A with surge protection for power and video, indoor enclosure

Ordering

HD6 AD1N1

HOW TO ORDER

Example: HD6AD4N1=

18XColor/In Ceiling/Clear Black/ NTSC/RS485

Interface

1 = Coax/RS485 4 = UTP

Series.

Format

N = NTSC

P = PAL

Dome/Trim Ring

1 = Smoked/Black

2 = Smoked/White

4 = Clear/Black

5 = Clear/White

Camera

A = 18X Color

B = 18X TDN

C = 23X WDR & TDN

D = 23X Color

E = 25X TDN

D = Ceiling P = Pendant
