HD6 Series - 4 Pages

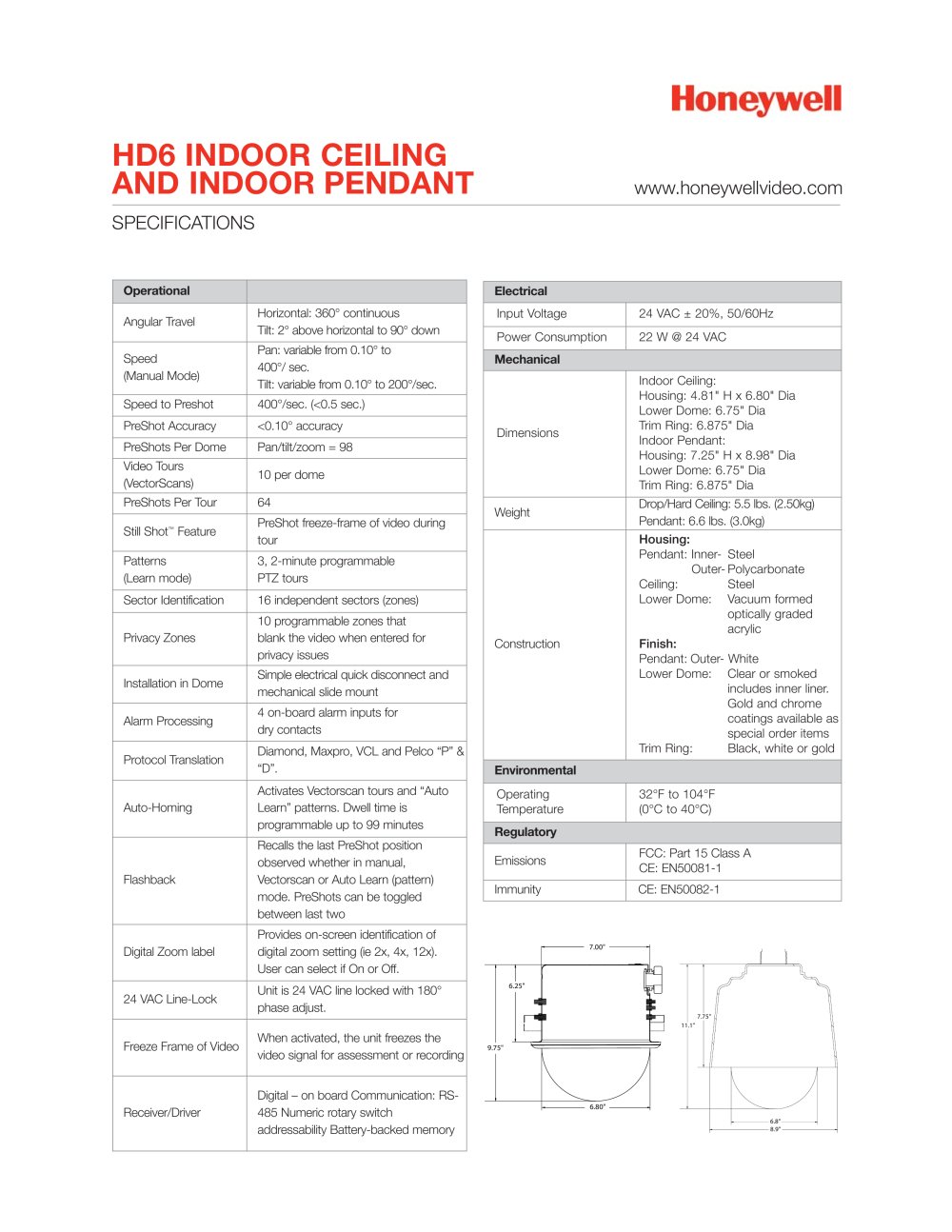

www.honeywellvideo.com SPECIFICATIONS
Operational Electrical Angular Travel Horizontal: 360continuousTilt: 2аabove horizontal to 90down Input Voltage 24 VAC б20%, 50/60Hz Power Consumption 22 W @ 24 VAC Speed (Manual Mode) Pan: variable from 0.10to 400а/ sec. Tilt: variable from 0.10to 200а/sec. Mechanical Indoor Ceiling:Housing: 4.81" H x 6.80" Dia
Lower Dome: 6.75" Dia
Trim Ring: 6.875" Dia
Indoor Pendant:
Housing: 7.25" H x 8.98" Dia
Lower Dome: 6.75" Dia
Trim Ring: 6.875" Dia Speed to Preshot 400/sec. (<0.5 sec.) PreShot Accuracy <0.10аaccuracy Dimensions PreShots Per Dome Pan/tilt/zoom = 98 Video Tours
(VectorScans) 10 per dome PreShots Per Tour 64 Weight Drop/Hard Ceiling: 5.5 lbs. (2.50kg)Pendant: 6.6 lbs. (3.0kg) Still Shot >
Feature PreShot freeze-frame of video during
tour Housing: Patterns (Learn mode) 3, 2-minute programmable PTZ tours Pendant: Inner-SteelOuter-PolycarbonateCeiling:Steel
Lower Dome:Vacuum formedoptically graded
acrylic Pendant:Outer- White
Lower Dome:Clear or smokedincludes inner liner.
Gold and chrome
coatings available as
special order itemsTrim Ring:Black, white or gold Finish: Sector Identification 16 independent sectors (zones) 10 programmable zones that blank the video when entered for
privacy issues Privacy Zones Construction Installation in Dome Simple electrical quick disconnectand
mechanical slide mount Alarm Processing 4 on-board alarm inputs for dry contacts Protocol Translation Diamond, Maxpro, VCL and Pelco ٓP &
ԓD. Environmental Activates Vectorscan tours and ԓAuto
Learn patterns. Dwell time is
programmable up to 99 minutes Operating Temperature 32F to 104F (0аC to 40C) Auto-Homing Regulatory Recalls the last PreShot position
observed whether in manual,
Vectorscan or Auto Learn (pattern)
mode. PreShots can be toggled
between last two Emissions FCC: Part 15 Class A
CE: EN50081-1 Flashback Immunity CE: EN50082-1 Provides on-screen identification of
digital zoom setting (ie 2x, 4x, 12x).
User can select if On or Off. Digital Zoom label >
6.25"9.75"6.80"
7.00" 24 VAC Line-Lock Unit is 24 VAC line locked with 180а
phase adjust. Freeze Frame of Video When activated, the unit freezes the
video signal for assessment or recording Digital on board Communication: RS-
485 Numeric rotary switch
addressability Battery-backed memory Receiver/Driver >
6.8"8.9"
7.75"11.1" size="-2">
-
P. 1
HD6 INDOORCEILING AND INDOORPENDANT www.honeywellvideo.com HIGH SPEED PTZ DOME SYSTEM The HD6 Indoor Ceiling and Indoor Pendant is a high speed dome... -
P. 2
HD6 INDOORCEILING AND INDOORPENDANT www.honeywellvideo.com SPECIFICATIONS CAMERA HD6A HD6B HD6C HD6D HD6E Image Sensor 1/4" type EXviewHAD CCD 1/4" type... -
P. 3
-
P. 4
HD6 INDOOR CEILING AND INDOOR PENDANT www.honeywellvideo.com SPECIFICATIONS Components Dome Scan HDSA00N1 Scan 18X NTSC...
