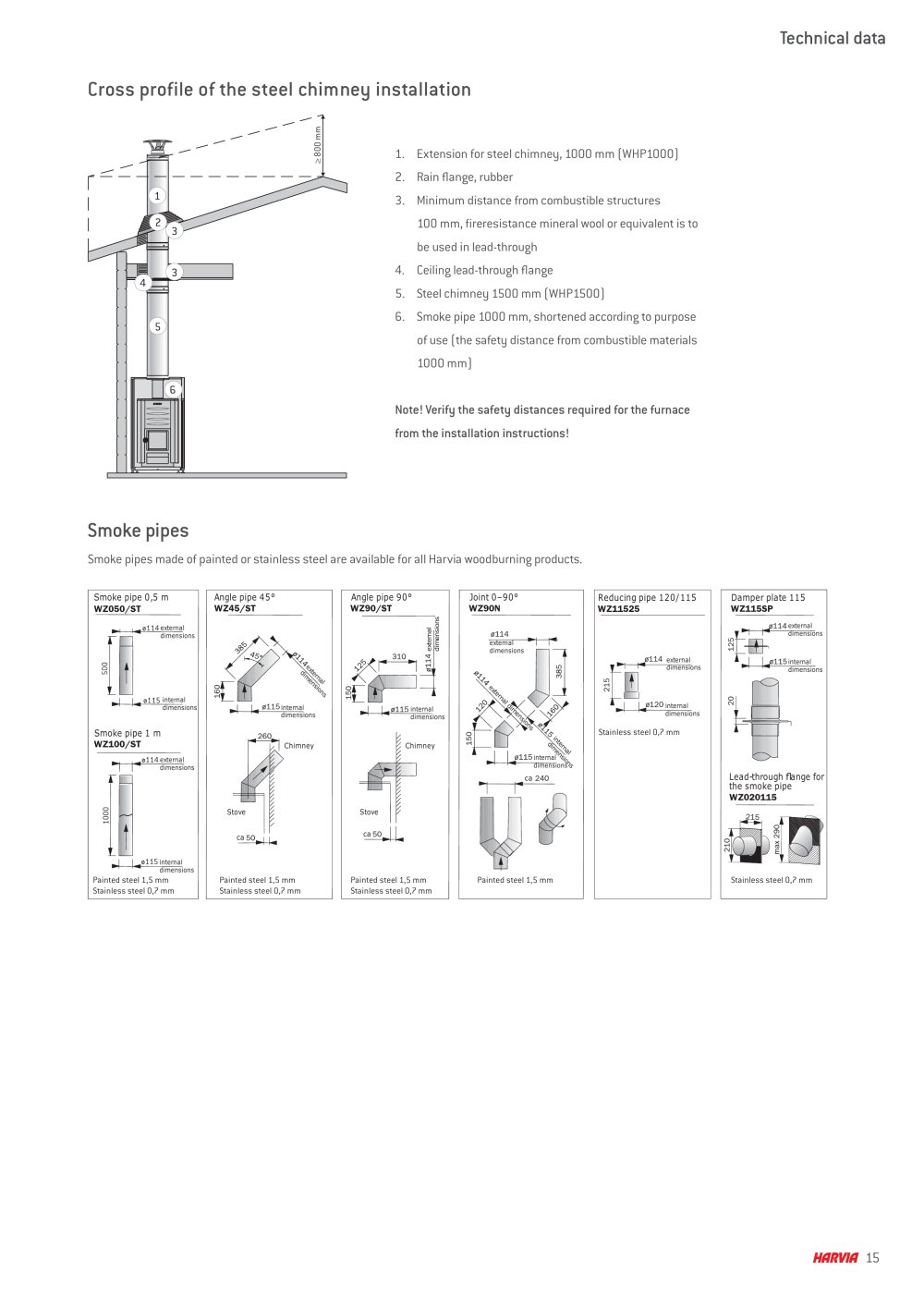

Technical data

Cross profile of the steel chimney installation

≥ 800 mm

1. Extension for steel chimney, 1000 mm (WHP1000)2. Rain fl ange, rubber 3. Minimum distance from combustible structures 100 mm, fi reresistance mineral wool or equivalent is to be used in lead-through4. Ceiling suppliers lead-through fl ange 5. Steel chimney 1500 mm (WHP1500) 6. Smoke pipe furniture 1000 mm, shortened according to purpose of use (the safety distance from combustible materials 1000 mm) Note! Verify the safety distances required for the furnace from the installation instructions!

Smoke pipes

Smoke pipes made of painted or stainless steel are available for all Harvia woodburning products.

Smoke pipe 0,5 mAngle pipe 45°Angle pipe 90°Joint 0–90°Reducing pipe 120/115Damper plate 115
external dimensionsinternal dimensions external dimensions external dimensionsinternal dimensions external dimensionsinternal dimensions external dimensions external dimensions internal dimensions internal dimensions external dimensions Smoke pipe 1 m
internal dimensions Stainless steel 0,7 mm
ChimneyChimneyStoveStovecaca external dimensions internal dimensions internal dimensions ca Lead-through fl ange for the smoke pipe Painted steel 1,5 mmStainless steel 0,7 mmPainted steel 1,5 mmStainless steel 0,7 mmPainted steel 1,5 mmStainless steel 0,7 mmPainted steel 1,5 mmStainless steel 0,7 mm

15
