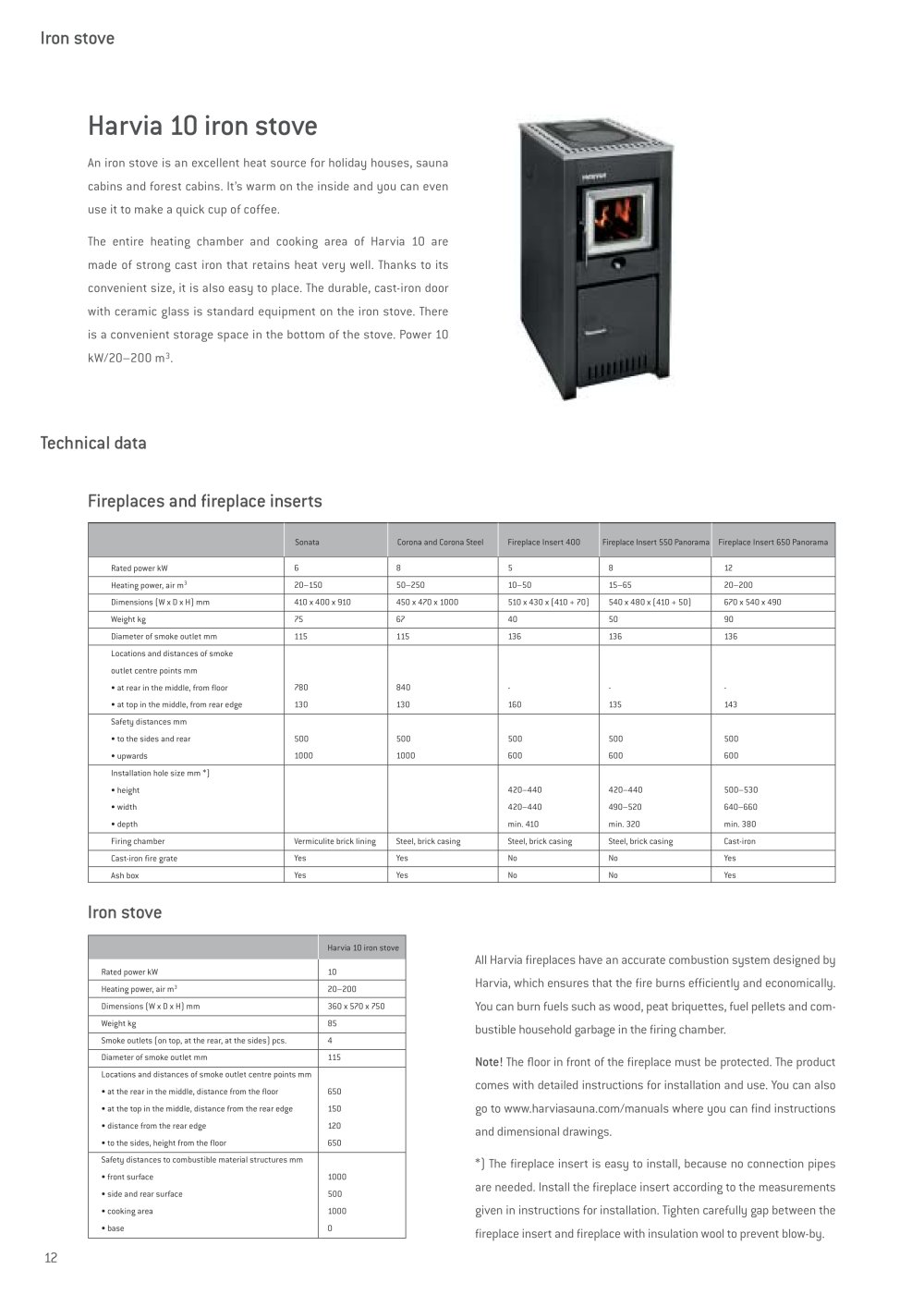

Iron design stove

Harvia 10 iron stove

An iron stove is an excellent heat source for holiday houses, design sauna cabins and forest cabins. It's warm on the inside and you can even use it to make a quick cup of coffee.

The entire heater chamber and cooking area of Harvia 10 are made of strong cast iron that retains heat very well. Thanks to its convenient size, it is also easy to place. The durable, cast-iron contemporary door with ceramic glass is standard equipment on the iron stove. There is a convenient home storage space in the bottom of the stove. Power 10 kW/20-200 m³.

Technical data

Fireplaces furniture and home fireplace inserts


	Sonata	Corona and Corona Steel	Fireplace Insert 400	Fireplace Insert 550 Panorama	Fireplace Insert 650 Panorama
Rated power kW	6	8	5	8	12
Heating power, air m³	20-150	50-250	10-50	15-65	20-200
Dimensions (W x D x H) mm	410 x 400 x 910	450 x 470 x 1000	510 x 430 x (410 + 70)	540 x 480 x (410 + 50)	670 x 540 x 490
Weight kg	75	67	40	50	90
Diameter of smoke outlet mm	115	115	136	136	136
Locations and distances of smoke
outlet centre points mm
• at rear in the middle, from floor	780	840
• at top in the middle, from rear edge	130	130	160	135	143
Safety distances mm
• to the sides and rear	500	500	500	500	500
• upwards	1000	1000	600	600	600
Installation hole size mm *)
• height			420-440	420-440	500-530
• width			420-440	490-520	640-660
• depth			min. 410	min. 320	min. 380
Firing chamber	Vermiculite brick furniture lining	Steel, brick casing	Steel, brick casing	Steel, brick casing	Cast-iron
Cast-iron fire grate	Yes	Yes	No	No	Yes
Ash garden box	Yes	Yes	No	No	Yes

Iron stove


	Harvia 10 iron stove
	Rated power kW	10
	Heating power, air m³	20-200
	Dimensions (W x D x H) mm	360 x 570 x 750
	Weight kg	85
	Smoke outlets (on top, at the rear, at the sides) pcs.	4
	Diameter of smoke outlet mm	115
	Locations and distances of smoke outlet centre points mm
	• at the rear in the middle, distance from the floor	650
	• at the top in the middle, distance from the rear edge	150
	• distance from the rear edge	120
	• to the sides, height from the floor	650
	Safety distances to combustible material structures mm
	• front surface	1000
	• side and rear surface	500
	• cooking area	1000
	• base	0

All Harvia fireplaces have an accurate combustion system designed by Harvia, which ensures that the fire burns efficiently and economically. You can burn fuels such as wood, peat briquettes, fuel pellets and combustible household garbage in the firing chamber.

Note! The floor in front of the fireplace must be protected. The product comes with detailed instructions for installation and use. You can also go to www.harviasauna.com/manuals where you can find instructions and dimensional drawings.

*) The fireplace insert is easy to install, because no connection pipes are needed. Install the fireplace insert according to the measurements given in instructions for installation. Tighten carefully gap between the fireplace insert and fireplace with insulation wool to prevent blow-by.
