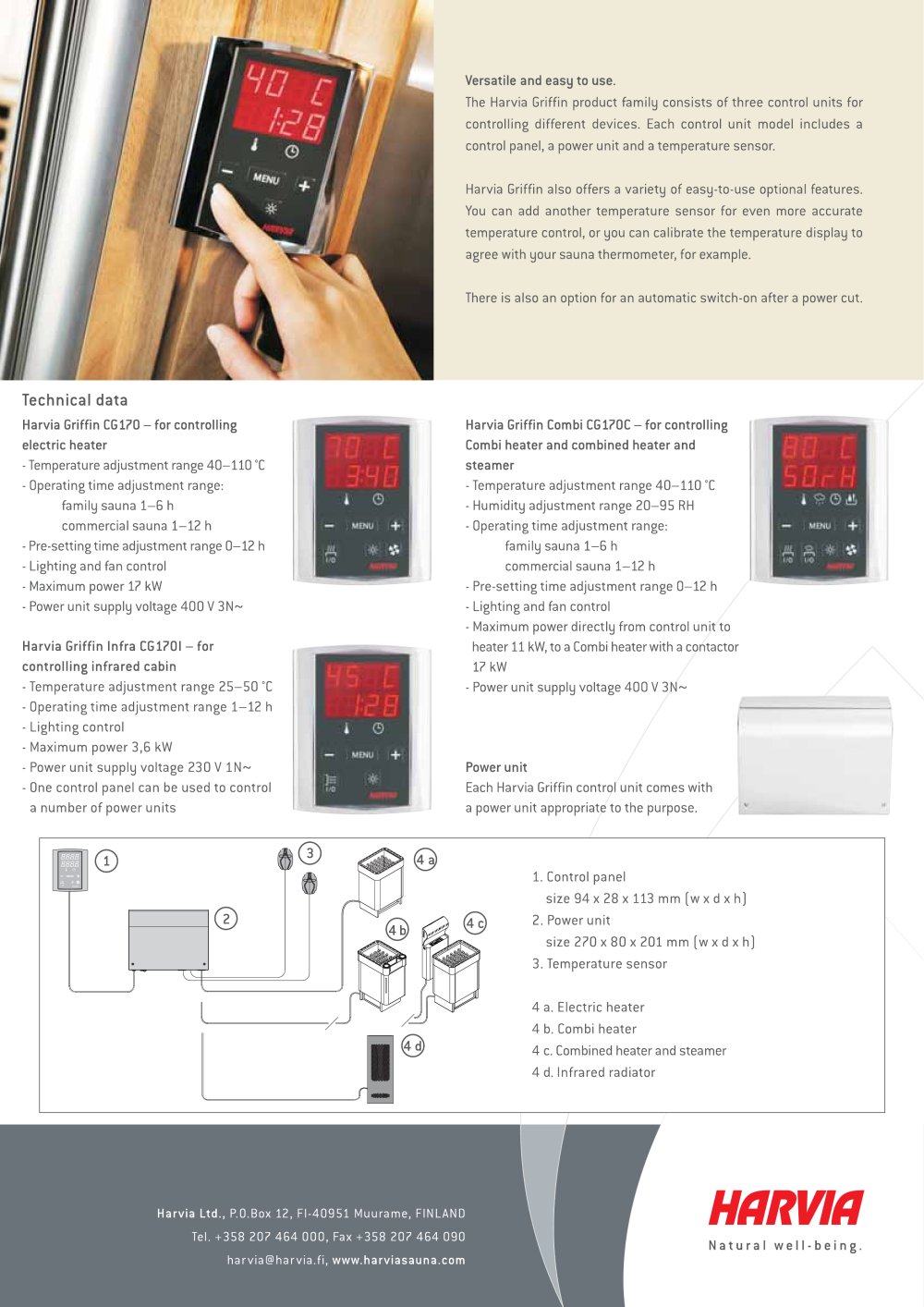

HARVIA - 101937, 118673, 23173, 19239, 28027, 27398

/ 2

See other catalogues for HARVIA

Text version of the page

Versatile and easy to use.

The Harvia Griffin product family consists of three control units for controlling different devices. Each control unit model includes a control architectural panel, a power unit and a temperature sensor.

Harvia Griffin also offers a variety of easy-to-use optional features. You can add another temperature sensor for even more accurate temperature control, or you can calibrate the temperature display to agree with your sauna supplier thermometer, for example.

There is also an option for an automatic switch-on after a power cut.

Technical data

Harvia Griffin CG 170 - for controlling modern electric heater

■ Temperature adjustment range 40-110 °C

■ Operating time adjustment range:

family sauna 1-6 h commercial sauna 1-12 h

- Pre-settingtime adjustment range 0-12 h

■ Lighting and fan furniture control

■ Maximum power 17 kW

■ Power unit supply voltage 400 V 3N~

Harvia Griffin Infra CG1P0I - for controlling infrared cabin

■ Temperature adjustment range 25-50 °C

- Operating time adjustment range 1-12 h

■ Lighting control

■ Maximum power 3,6 kW

■ Power unit supply voltage 230 V 1N~

- One control panel can be used to control a number of power units

Harvia Griffin Combi CG170C - for controlling Combi heater and combined heater and steamer

- Temperature adjustment range 40-110 °C

- Humidity adjustment range 20-95 RH

- Operating time adjustment range:

family sauna 1-6 h commercial sauna 1-12 h

- Pre-settingtime adjustment range 0-12 h

- Lighting and fan control

- Maximum power directly from control unit to heater 11 kW, to a Combi heater with a contactor l?kW

- Power unit supply voltage 400 V 3N~

— ttmu +

A A

Power unit

Each Harvia Griffin control unit comes with a power unit appropriate to the purpose.

1. Control panel

size 94 x 28 x 113 mm (w x d x h)

2. Power unit

size 270 x 80 x 201 mm (w x d x h]

3. Temperature sensor

4 a. Electric heater

4 b. Combi heater

4 c. Combined heater and steamer

4 d. Infrared heater

Harvia Ltd., P.O.Garden box 12, FI-40951 Muurame, FINLAND Tel. +358 20? 464 000, Fax +358 20? 464 090 harvia@harvia.fi, www.harviasauna.com
