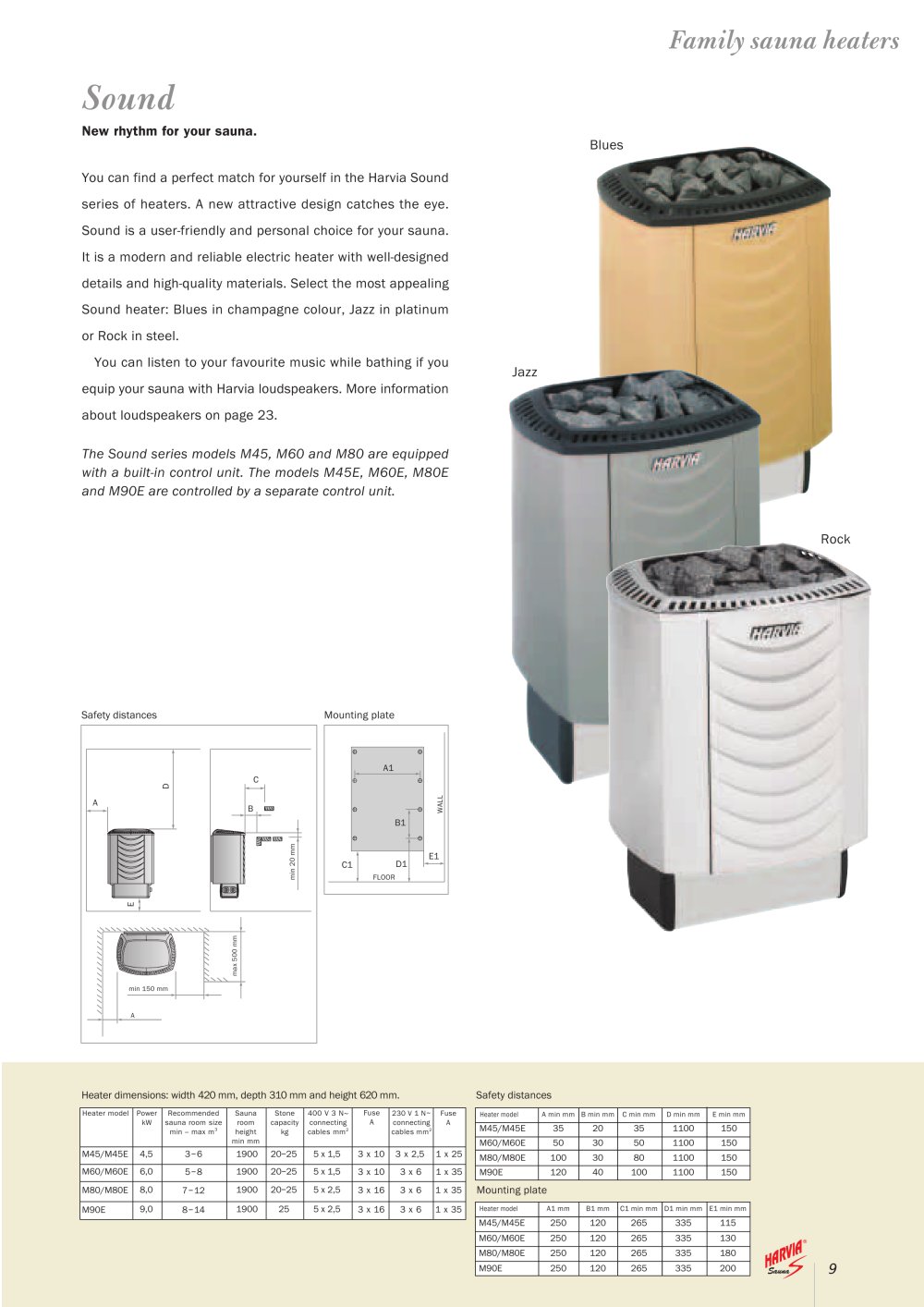

Family design sauna heaters

Sound

New rhythm for your sauna.

You can find a perfect match for yourself in the Harvia Sound series of heaters. A new attractive garden design catches the eye. Sound is a user-friendly and personal choice for your sauna. It is a modern and reliable contemporary electric heater with well-designed details and high-quality materials. Select the most appealing Sound heater: Blues in champagne colour, Jazz in platinum or Rock in steel.

You can listen to your favourite music while bathing if you equip your sauna with Harvia loudspeakers. More information about loudspeakers on page 23.

The Sound series models M45, M60 and M80 are equipped with a built-in control unit. The models M45E, M60E, M80E and M90E are controlled by a separate control unit.

Blues

Safety distances

Mounting plate

Heater dimensions: width 420 mm, depth 310 mm and height 620 mm.

Safety distances


Heater model	A min mm	B min mm	C min mm	D min mm	E min mm
M45/M45E	35	20	35	1100	150
M60/M60E	50	30	50	1100	150
M80/M80E	100	30	80	1100	150
M90E	120	40	100	1100	150


Heater model	Power kW	Recommended sauna room size min - max m³	Sauna room height min mm	Stone capacity kg	400 V 3 N~ connecting cables mm²	Fuse A	230 V 1 N~ connecting cables mm²	Fuse A
M45/M45E	4,5	3-6	1900	20-25	5 x 1,5	3 x 10	3 x 2,5	1 x 25
M60/M60E	6,0	5-8	1900	20-25	5 x 1,5	3 x 10	3 x 6	1 x 35
M80/M80E	8,0	7-12	1900	20-25	5 x 2,5	3 x 16	3 x 6	1 x 35
M90E	9,0	8-14	1900	25	5 x 2,5	3 x 16	3 x 6	1 x 35

Mounting plate


Heater model	A1 mm	B1 mm	C1 min mm	D1 min mm	E1 min mm
M45/M45E	250	120	265	335	115
M60/M60E	250	120	265	335	130
M80/M80E	250	120	265	335	180
M90E	250	120	265	335	200
