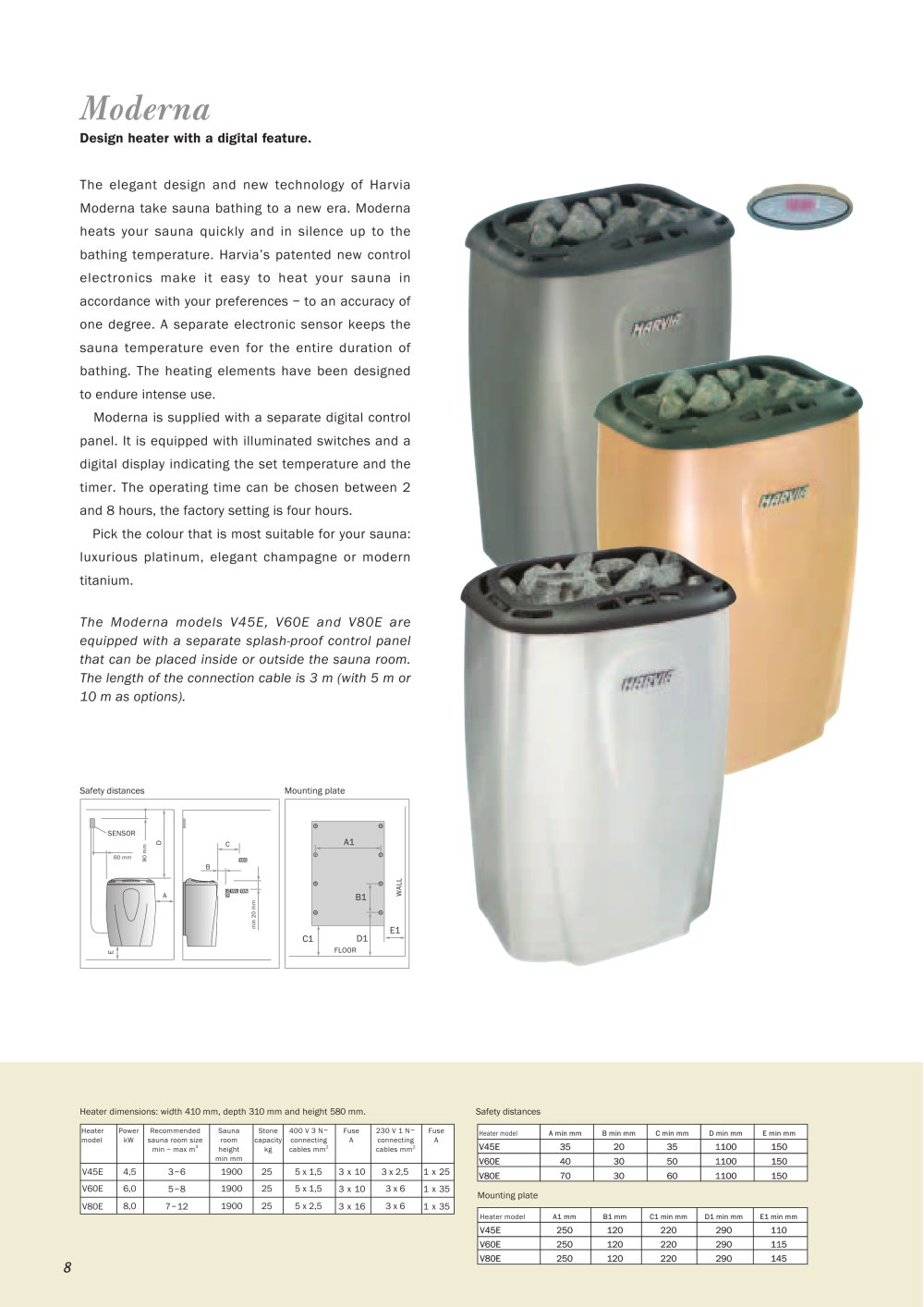

Moderna

Design heater with a digital feature.

The elegant design and new technology of Harvia Moderna take professional sauna bathing to a new era. Moderna heats your sauna quickly and in silence up to the bathing temperature. Harvia's patented new control electronics make it easy to heat your sauna in accordance with your preferences - to an accuracy of one degree. A separate electronic sensor keeps the sauna temperature even for the entire duration of bathing. The heater elements have been designed to endure intense use.

Moderna is supplied with a separate digital control architectural panel. It is equipped with illuminated modern switches and a digital modern display indicating the set temperature and the timer. The operating time can be chosen between 2 and 8 hours, the factory setting is four hours.

Pick the colour that is most suitable for your sauna: luxurious platinum, elegant champagne or modern titanium.

The Moderna models V45E, V60E and V80E are equipped with a separate splash-proof control panel that can be placed inside or outside the sauna room. The length of the connection cable is 3 m (with 5 m or 10 m as options).

Safety distances Mounting plate

SENSOR

Heater dimensions: width 410 mm, depth 310 mm and height 580 mm.

Safety distances


Heater model	A min mm	B min mm	C min mm	D min mm	E min mm
V45E	35	20	35	1100	150
V60E	40	30	50	1100	150
V80E	70	30	60	1100	150


Heater model	Power kW	Recommended sauna room size min - max m³	Sauna room height min mm	Stone capacity kg	400 V 3 N~ connecting cables mm²	Fuse A	230 V 1 N~ connecting cables mm²	Fuse A
V45E	4,5	3-6	1900	25	5 x 1,5	3 x10	3 x 2,5	1x25
V60E	6,0	5-8	1900	25	5 x 1,5	3 x 10	3 x 6	1 x 35
V80E	8,0	7-12	1900	25	5 x 2,5	3 x 16	3 x 6	1 x 35

Mounting plate


Heater model	A1 mm	B1 mm	C1 min mm	D1 min mm	E1 min mm
V45E	250	120	220	290	110
V60E	250	120	220	290	115
V80E	250	120	220	290	145
