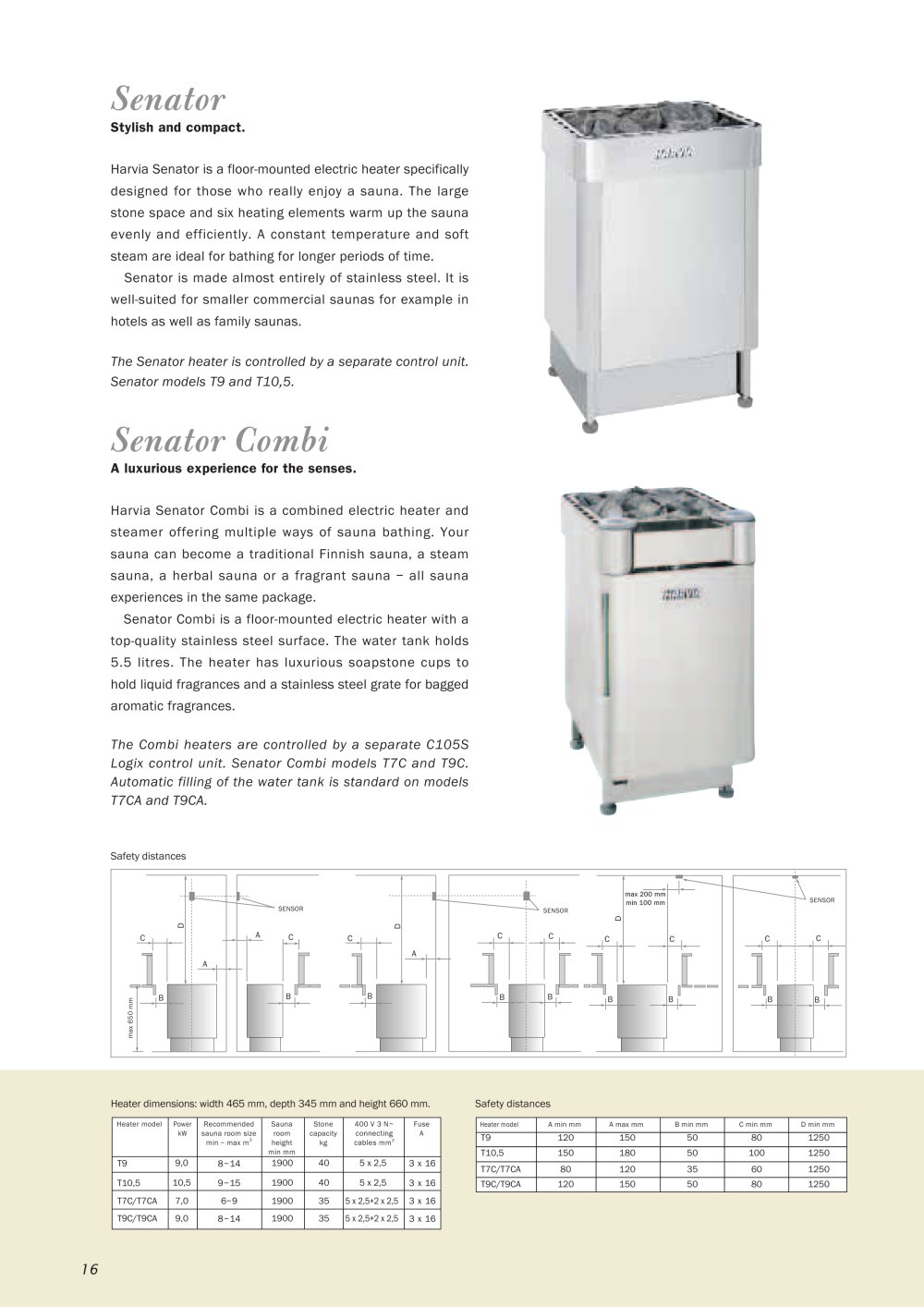

Senator

Stylish and compact.

Harvia Senator is a floor-mounted contemporary electric heater specifically designed for those who really enjoy a sauna. The large stone space and six heater elements warm up the sauna evenly and efficiently. A constant temperature and soft steam are ideal for bathing for longer periods of time.

Senator is made almost entirely of stainless steel. It is well-suited for smaller commercial saunas for example in hotels as well as family saunas.

The Senator heater is controlled by a separate control unit. Senator models T9 and T10,5.

Senator Combi

A luxurious experience for the senses.

Harvia Senator Combi is a combined electric heater and steamer offering multiple ways of sauna bathing. Your sauna can become a traditional Finnish sauna, a steam sauna, a herbal sauna or a fragrant sauna - all sauna experiences in the same package.

Senator Combi is a floor-mounted electric heater with a top-quality stainless steel surface. The water tank holds 5.5 litres. The heater has luxurious soapstone cups to hold liquid fragrances and a stainless steel grate for bagged aromatic fragrances.

The Combi heaters are controlled by a separate C105S Logix control unit. Senator Combi models T7C and T9C. Automatic filling of the water tank is standard on models

T7CA and T9CA.

Safety distances

SENSOR

A C

■

Safety distances

Heater dimensions: width 465 mm, depth 345 mm and height 660 mm.


Heater model	A min mm	A max mm	■ min mm	C min mm	D min mm
T9	120	150	50	80	1250
T10,5	150	180	50	100	1250
T7C/T7CA	80	120	35	60	1250
T9C/T9CA	120	150	50	80	1250


Heater model	Power kW	Recommended sauna room size min - max m³	Sauna room height min mm	Stone capacity kg	400 V 3 N~ connecting cables mm²	Fuse A
T9	9,0	8-14	1900	40	5 x 2,5	3 x 16
T10,5	10,5	9-15	1900	40	5 x 2,5	3 x16
T7C/T7CA	7,0	6-9	1900	35	5 x 2,5+2 x 2,5	3 x16
T9C/T9CA	9,0	8-14	1900	35	5 x 2,5+2 x 2,5	3 x 16
