Heaters for commercial home saunas

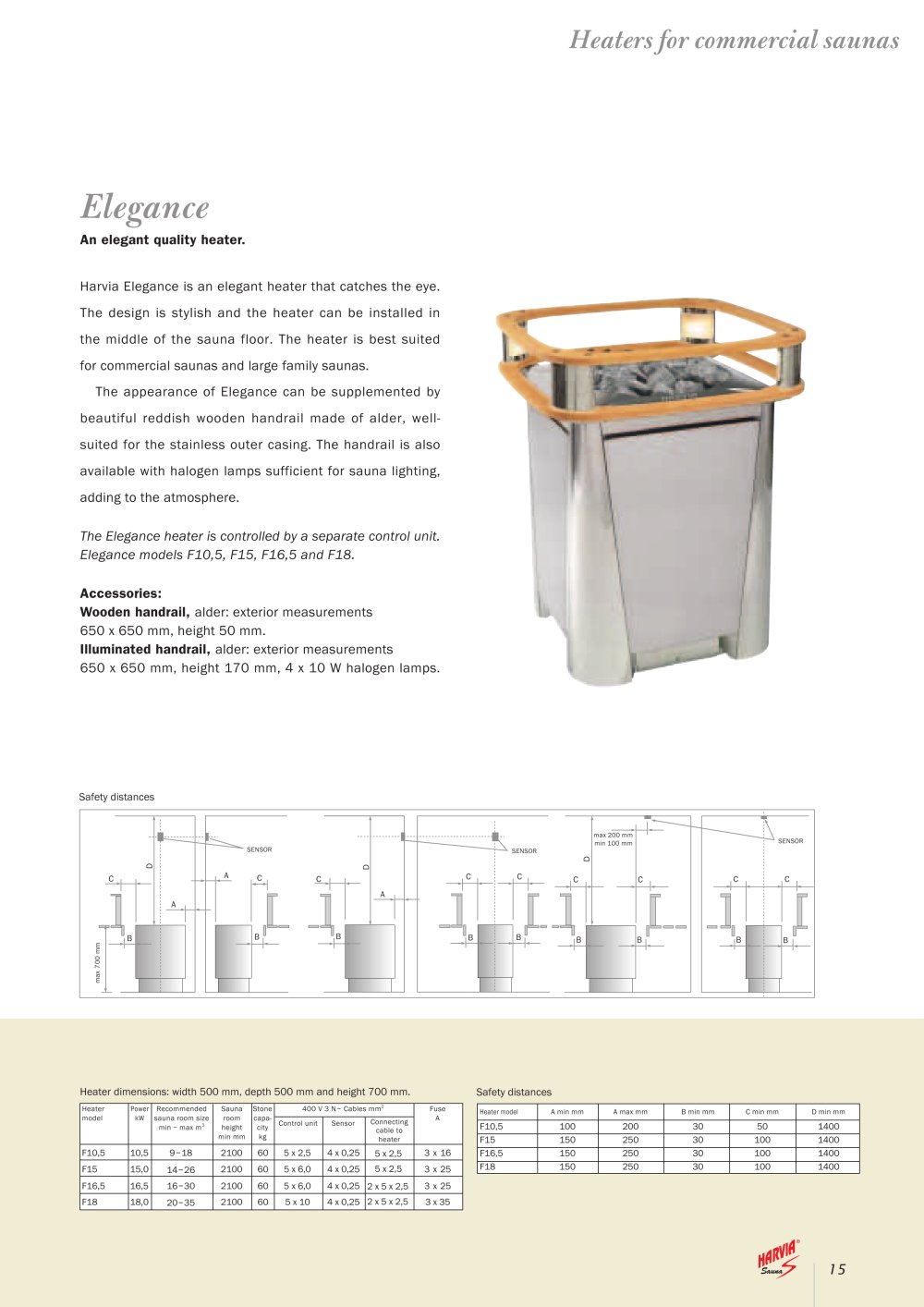

Elegance

An elegant quality heater.

Harvia Elegance is an elegant heater that catches the eye. The building design is stylish and the heater can be installed in the middle of the sauna floor. The heater is best suited for commercial saunas and large family saunas.

The appearance of Elegance can be supplemented by beautiful reddish wooden handrail made of alder, well-suited for the stainless outer casing. The handrail is also available with halogen design lamps sufficient for sauna lighting, adding to the atmosphere.

The Elegance heater is controlled by a separate control unit. Elegance models F10,5, F15, F16,5 and F18.

Accessories:

Wooden handrail, alder: exterior measurements

650 x 650 mm, height 50 mm.

Illuminated handrail, alder: exterior measurements

650 x 650 mm, height 170 mm, 4 x 10 W halogen lamps.

Safety distances

max 200 mm min 100 mm

SENSOR

A C

Heater dimensions: width 500 mm, depth 500 mm and height 700 mm.

Safety distances


Heater model	Power kW	Recommended sauna room size min - max m³	Sauna room height min mm	Stone capacity kg	400 V 3 N~ Cables mm²			Fuse A
Heater model	Power kW	Recommended sauna room size min - max m³	Sauna room height min mm	Stone capacity kg	Control unit	Sensor	Connecting cable to heater	Fuse A
F10,5	10,5	9-18	2100	60	5 x 2,5	4 x 0,25	5 x 2,5	3 x16
F15	15,0	14-26	2100	60	5 x 6,0	4 x 0,25	5 x 2,5	3 x 25
F16,5	16,5	16-30	2100	60	5 x 6,0	4 x 0,25	2 x 5 x 2,5	3 x25
F18	18,0	20-35	2100	60	5 x 10	4 x 0,25	2 x 5 x 2,5	3 x 35


Heater model	A min mm	A max mm	B min mm	C min mm	D min mm
F10,5	100	200	30	50	1400
F15	150	250	30	100	1400
F16,5	150	250	30	100	1400
F18	150	250	30	100	1400
