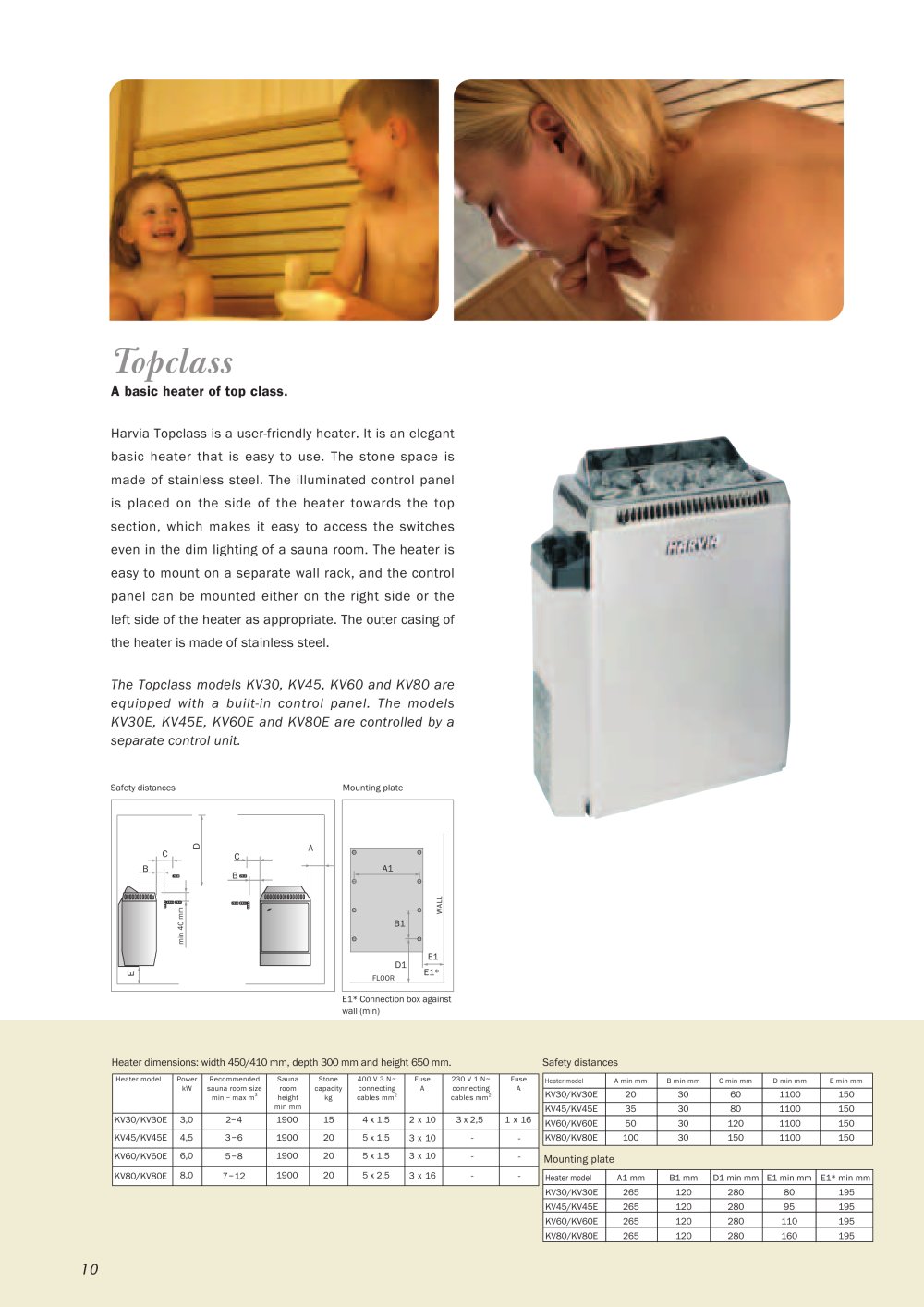

Topclass

A basic heater of top class.

Harvia Topclass is a user-friendly heater. It is an elegant basic heater that is easy to use. The stone space is made of stainless steel. The illuminated control building panel is placed on the side of the heater towards the top section, which makes it easy to access the design switches even in the dim lighting of a garden sauna room. The heater is easy to mount on a separate wall rack, and the control panel can be mounted either on the right side or the left side of the heater as appropriate. The outer casing of the heater is made of stainless steel.

The Topclass models KV30, KV45, KV60 and KV80 are equipped with a built-in control panel. The models KV30E, KV45E, KV60E and KV80E are controlled by a separate control unit.

Safety distances

Mounting plate

iélìflòlllionl

'iooonoi

^E1E1*

FLOOR

E1* Connection building box against wall (min]

Heater dimensions: width 450/410 mm, depth 300 mm and height 650 mm.

Safety distances


Heater model	Power kW	Recommended sauna room size min - max m³	Sauna room height min mm	Stone capacity kg	400 V 3 N~ connecting cables mm²	Fuse A	230 V 1 N~ connecting cables mm²	Fuse A	Heater model	A min mm	B min mm	C min mm	D min mm	E min mm
									KV30/KV30E	20	30	60	1100	150
									KV45/KV45E	35	30	80	1100	150
KV30/KV30E	3,0	2-4	1900	15	4 x 1,5	2 x 10	3 x 2,5	1 x 16	KV60/KV60E	50	30	120	1100	150
KV45/KV45E	4,5	3-6	1900	20	5 x 1,5	3 x10			KV80/KV80E	100	30	150	1100	150
KV60/KV60E	6,0	5-8	1900	20	5 x 1,5	3 x10			Mounting plate
KV80/KV80E	8,0	7-12	1900	20	5 x 2,5	3 x16			Heater model	A1 mm	B1 mm	D1 min mm	E1 min mm	E1* min mm
									KV30/KV30E	265	120	280	80	195
									KV45/KV45E	265	120	280	95	195
									KV60/KV60E	265	120	280	110	195
									KV80/KV80E	265	120	280	160	195
