CABLE MANAGEMENT - 28 Pages
24
www.hadleygroup.co.uk
CHANNEL200
41
22
Y
Y
X X
17.5

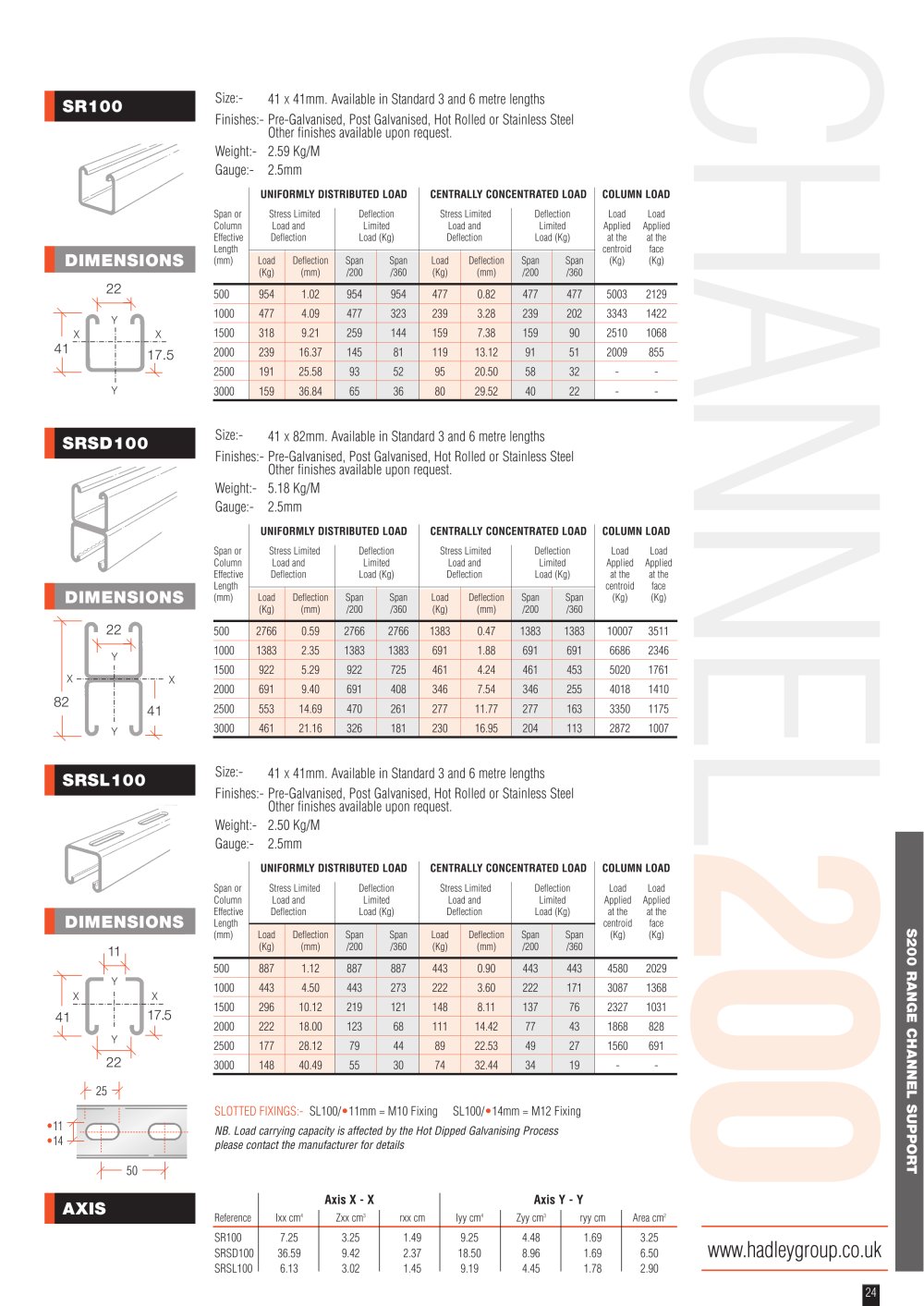

SR100
DIMENSIONS
82
22
Y
Y
X X
41
SRSD100
DIMENSIONS
41
22
11
Y
Y
X X
17.5
SRSL100
AXIS
DIMENSIONS
•11
•14
50
25
Span or Stress Limited Deflection Stress Limited Deflection Load Load
Column Load and Limited Load and Limited Applied Applied
Effective Deflection Load (Kg) Deflection Load (Kg) at the at the
Length centroid face
(mm) Load Deflection Span Span Load Deflection Span Span (Kg) (Kg)
(Kg) (mm) /200 /360 (Kg) (mm) /200 /360
500 954 1.02 954 954 477 0.82 477 477 5003 2129
1000 477 4.09 477 323 239 3.28 239 202 3343 1422
1500 318 9.21 259 144 159 7.38 159 90 2510 1068
2000 239 16.37 145 81 119 13.12 91 51 2009 855
2500 191 25.58 93 52 95 20.50 58 32 - -
3000 159 36.84 65 36 80 29.52 40 22 - -
UNIFORMLY DISTRIBUTED LOAD CENTRALLY CONCENTRATED LOAD COLUMN LOAD
Size:- 41 X 41mm. Available in Standard 3 and 6 metre lengths
Finishes:- Pre-Galvanised, Post Galvanised, Hot Rolled or Stainless Steel
Other finishes available upon request.
Weight:- 2.59 Kg/M
Gauge:- 2.5mm
Span or Stress Limited Deflection Stress Limited Deflection Load Load
Column Load and Limited Load and Limited Applied Applied
Effective Deflection Load (Kg) Deflection Load (Kg) at the at the
Length centroid face
(mm) Load Deflection Span Span Load Deflection Span Span (Kg) (Kg)
(Kg) (mm) /200 /360 (Kg) (mm) /200 /360
500 2766 0.59 2766 2766 1383 0.47 1383 1383 10007 3511
1000 1383 2.35 1383 1383 691 1.88 691 691 6686 2346
1500 922 5.29 922 725 461 4.24 461 453 5020 1761
2000 691 9.40 691 408 346 7.54 346 255 4018 1410
2500 553 14.69 470 261 277 11.77 277 163 3350 1175
3000 461 21.16 326 181 230 16.95 204 113 2872 1007
UNIFORMLY DISTRIBUTED LOAD CENTRALLY CONCENTRATED LOAD COLUMN LOAD
Size:- 41 X 82mm. Available in Standard 3 and 6 metre lengths
Finishes:- Pre-Galvanised, Post Galvanised, Hot Rolled or Stainless Steel
Other finishes available upon request.
Weight:- 5.18 Kg/M
Gauge:- 2.5mm
Span or Stress Limited Deflection Stress Limited Deflection Load Load
Column Load and Limited Load and Limited Applied Applied
Effective Deflection Load (Kg) Deflection Load (Kg) at the at the
Length centroid face
(mm) Load Deflection Span Span Load Deflection Span Span (Kg) (Kg)
(Kg) (mm) /200 /360 (Kg) (mm) /200 /360
500 887 1.12 887 887 443 0.90 443 443 4580 2029
1000 443 4.50 443 273 222 3.60 222 171 3087 1368
1500 296 10.12 219 121 148 8.11 137 76 2327 1031
2000 222 18.00 123 68 111 14.42 77 43 1868 828
2500 177 28.12 79 44 89 22.53 49 27 1560 691
3000 148 40.49 55 30 74 32.44 34 19 - -
UNIFORMLY DISTRIBUTED LOAD CENTRALLY CONCENTRATED LOAD COLUMN LOAD
Size:- 41 X 41mm. Available in Standard 3 and 6 metre lengths
Finishes:- Pre-Galvanised, Post Galvanised, Hot Rolled or Stainless Steel
Other finishes available upon request.
Weight:- 2.50 Kg/M
Gauge:- 2.5mm
Axis X - X Axis Y - Y
SLOTTED FIXINGS:- SL100/•11mm = M10 Fixing SL100/•14mm = M12 Fixing
NB. Load carrying capacity is affected by the Hot Dipped Galvanising Process
please contact the manufacturer for details
Reference Ixx cm4 Zxx cm3 rxx cm Iyy cm4 Zyy cm3 ryy cm Area cm2
SR100 7.25 3.25 1.49 9.25 4.48 1.69 3.25
SRSD100 36.59 9.42 2.37 18.50 8.96 1.69 6.50
SRSL100 6.13 3.02 1.45 9.19 4.45 1.78 2.90
S200 RANGE CHANNEL SUPPORT
-
