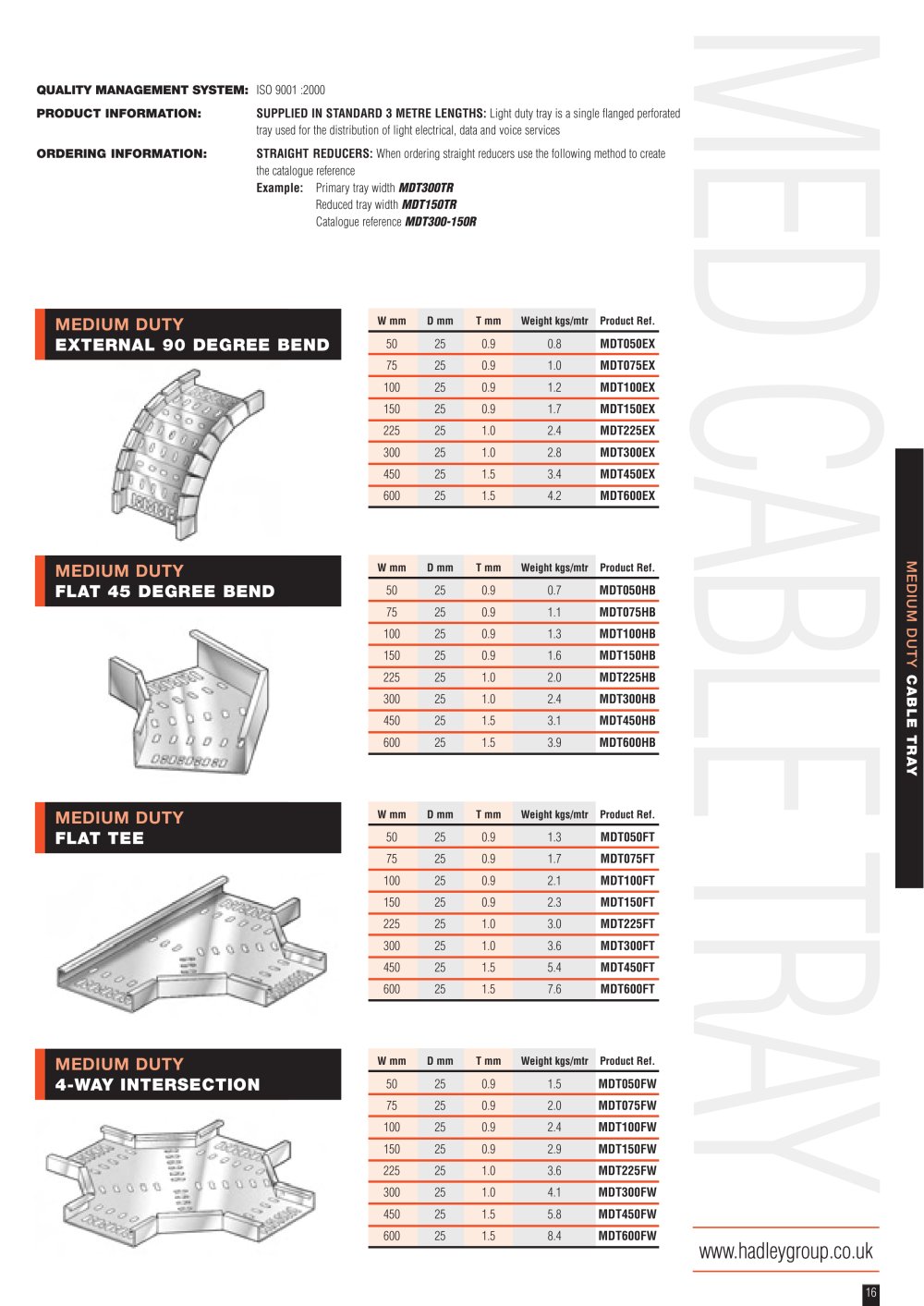

MEDIUM DUTY CABLE TRAY MED CABLE TRAY
QUALITY MANAGEMENT SYSTEM: ISO 9001 :2000
PRODUCT INFORMATION: SUPPLIED IN STANDARD 3 METRE LENGTHS: Light duty tray is a single flanged perforated
tray used for the distribution of light electrical, data and voice services
ORDERING INFORMATION: STRAIGHT REDUCERS: When ordering straight reducers use the following method to create
the catalogue reference
Example: Primary tray width MDT300TR
Reduced tray width MDT150TR
Catalogue reference MDT300-150R
W mm D mm T mm Weight kgs/mtr Product Ref.
50 25 0.9 0.8 MDT050EX
75 25 0.9 1.0 MDT075EX
100 25 0.9 1.2 MDT100EX
150 25 0.9 1.7 MDT150EX
225 25 1.0 2.4 MDT225EX
300 25 1.0 2.8 MDT300EX
450 25 1.5 3.4 MDT450EX
600 25 1.5 4.2 MDT600EX
MEDIUM DUTY
EXTERNAL 90 DEGREE BEND
W mm D mm T mm Weight kgs/mtr Product Ref.
50 25 0.9 0.7 MDT050HB
75 25 0.9 1.1 MDT075HB
100 25 0.9 1.3 MDT100HB
150 25 0.9 1.6 MDT150HB
225 25 1.0 2.0 MDT225HB
300 25 1.0 2.4 MDT300HB
450 25 1.5 3.1 MDT450HB
600 25 1.5 3.9 MDT600HB
MEDIUM DUTY
FLAT 45 DEGREE BEND
W mm D mm T mm Weight kgs/mtr Product Ref.
50 25 0.9 1.3 MDT050FT
75 25 0.9 1.7 MDT075FT
100 25 0.9 2.1 MDT100FT
150 25 0.9 2.3 MDT150FT
225 25 1.0 3.0 MDT225FT
300 25 1.0 3.6 MDT300FT
450 25 1.5 5.4 MDT450FT
600 25 1.5 7.6 MDT600FT
MEDIUM DUTY
FLAT TEE
W mm D mm T mm Weight kgs/mtr Product Ref.
50 25 0.9 1.5 MDT050FW
75 25 0.9 2.0 MDT075FW
100 25 0.9 2.4 MDT100FW
150 25 0.9 2.9 MDT150FW
225 25 1.0 3.6 MDT225FW
300 25 1.0 4.1 MDT300FW
450 25 1.5 5.8 MDT450FW
600 25 1.5 8.4 MDT600FW
MEDIUM DUTY
4-WAY INTERSECTION
-
