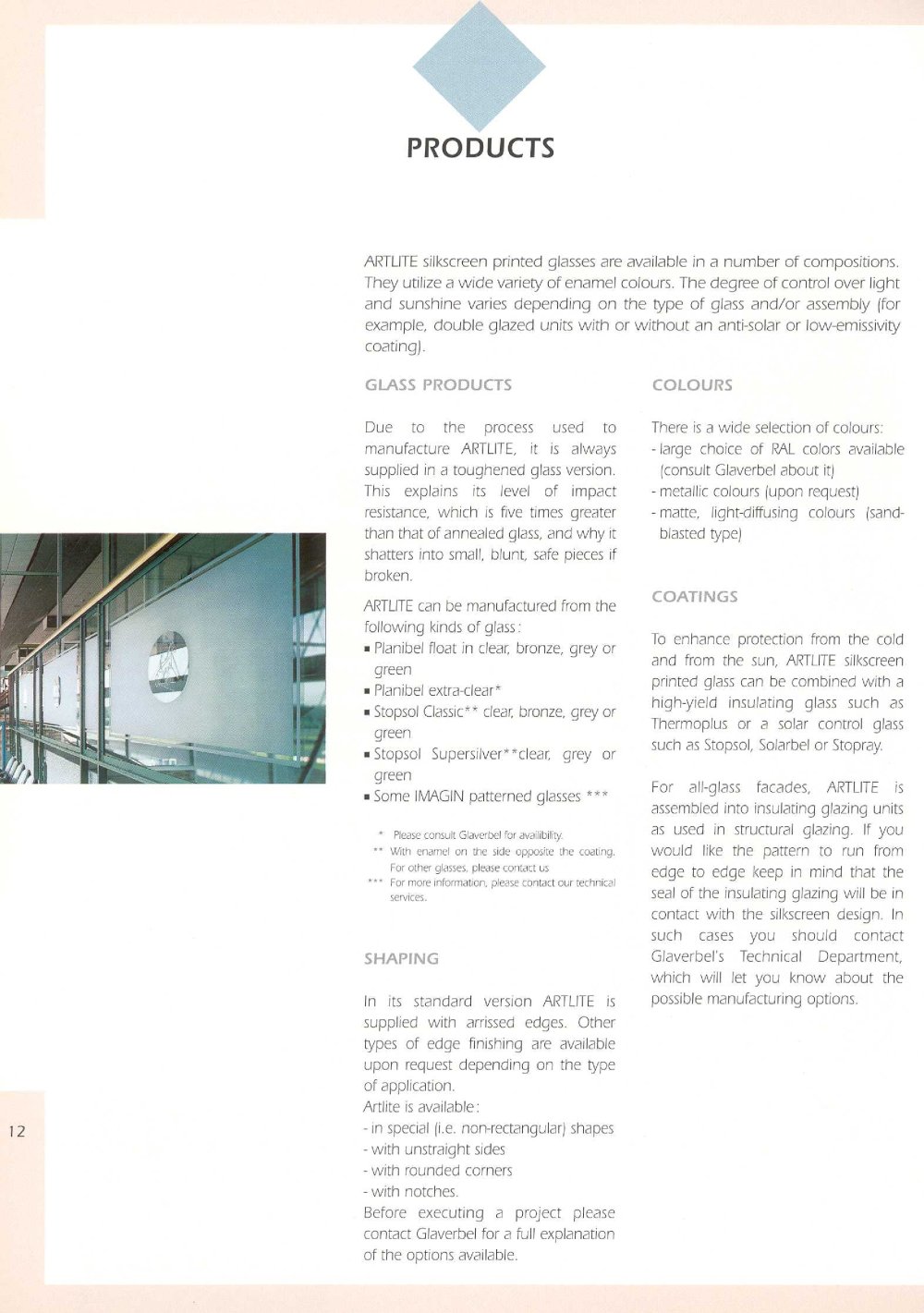

PRODUCTS
ARTLITE silkscreen printed glasses are available in a number of compositions. They utilize a wide variety of enamel colours. The degree of control over light and sunshine varies depending on the type of glass and/or assembly (for example, double glazed units with or without an anti-solar or low-emissivity coating).
GLASS PRODUCTS
COLOURS
Due to the process used to manufacture ARTLITE, it is always supplied in a toughened glass version. This explains its level of impact resistance, which is five times greater than that of annealed glass, and why it shatters into small, blunt, safe pieces if broken.
ARTLITE can be manufactured from the following kinds of glass:
■ Planibel float in clear; bronze, grey or green
■ Planibel extra-clear*
■ Stopsol Classic** clear, bronze, grey or green
■ Stopsol Supersilver**clear, grey or green
■ Some IMAGIN patterned glasses ***
* Please consult Glaverbel for availibility. ** With enamel on the side opposite the coating.
For other glasses, please contact us * * * For more information, please contact our technical services.
There is a wide selection of colours:
- large choice of RAL colors available (consult Glaverbel about it)
- metallic colours (upon request)
- matte, light-diffusing colours (sand­blasted type)
COATINGS
To enhance protection from the cold and from the sun, ARTLITE silkscreen printed glass can be combined with a high-yield insulating glass such as Thermoplus or a solar control glass such as Stopsol, Solarbel or Stopray.
For all-glass facades, ARTLITE is assembled into insulating glazing units as used in structural glazing. If you would like the pattern to run from edge to edge keep in mind that the seal of the insulating glazing will be in contact with the silkscreen contemporary design. In such cases you should contact Glaverbel's Technical Department, which will let you know about the possible manufacturing options.
SHAPING
In its standard version ARTLITE is supplied with arrissed edges. Other types of edge finishing are available upon request depending on the type of application. Artlite is available:
- in special (i.e. non-rectangular) shapes
- with unstraight sides
- with rounded corners
- with notches.
Before executing a project please contact Glaverbel for a full explanation of the options available.
12
