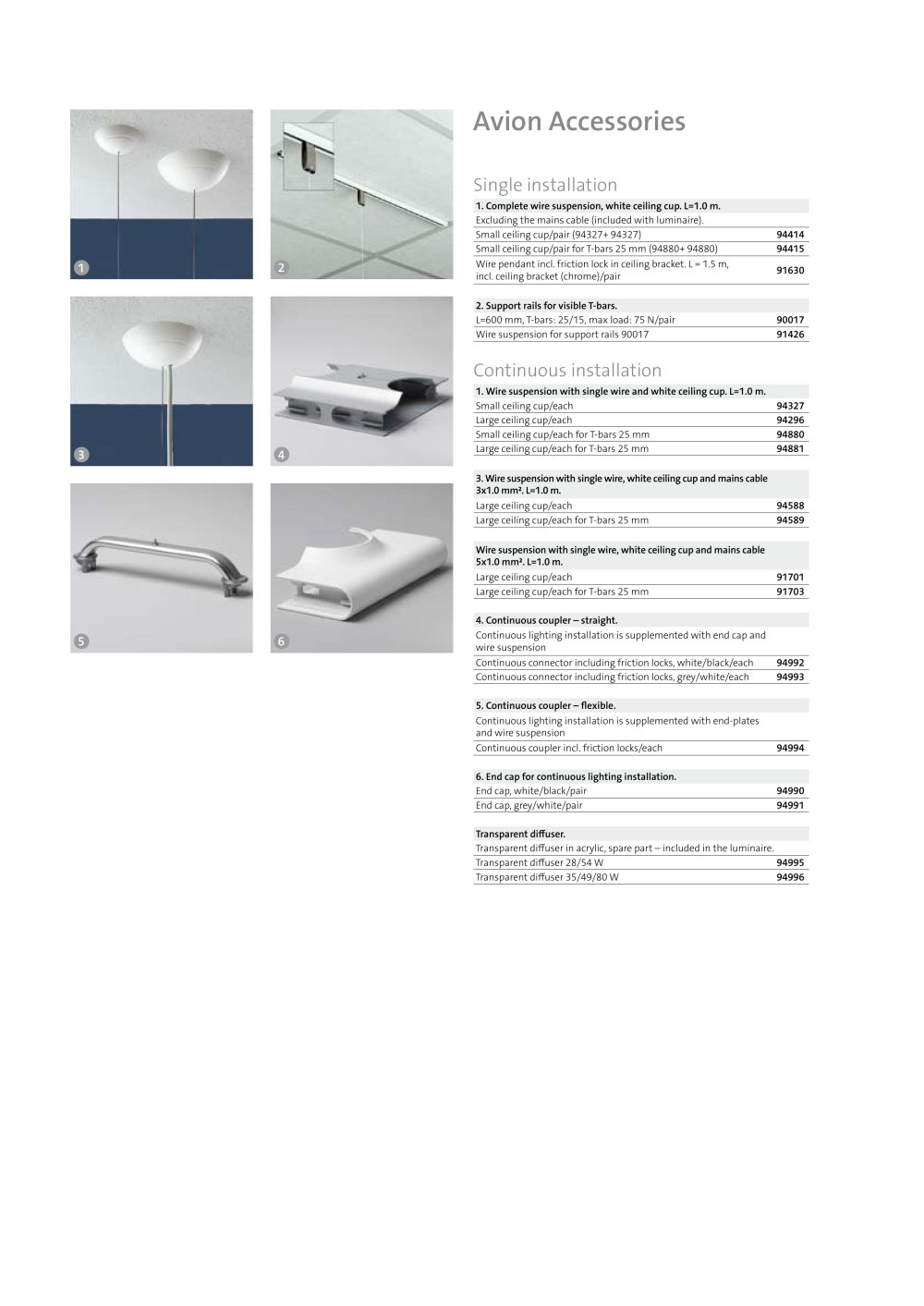

Avion Accessories
Single installation
1. Complete wire suspension, white ceiling cup. L=1.0 m.
Excluding the mains cable (included with luminaire).
Small ceiling cup/pair (94327+ 94327) 94414
Small ceiling cup/pair for T-bars 25 mm (94880+ 94880) 94415
Wire pendant incl. friction lock in ceiling bracket. L = 1.5 m,
incl. ceiling bracket (chrome)/pair 91630
2. Support rails for visible T-bars.
L=600 mm, T-bars: 25/15, max load: 75 N/pair 90017
Wire suspension for support rails 90017 91426
Continuous installation
1. Wire suspension with single wire and white ceiling cup. L=1.0 m.
Small ceiling cup/each 94327
Large ceiling cup/each 94296
Small ceiling cup/each for T-bars 25 mm 94880
Large ceiling cup/each for T-bars 25 mm 94881
3. Wire suspension with single wire, white ceiling cup and mains cable
3x1.0 mm². L=1.0 m.
Large ceiling cup/each 94588
Large ceiling cup/each for T-bars 25 mm 94589
Wire suspension with single wire, white ceiling cup and mains cable
5x1.0 mm². L=1.0 m.
Large ceiling cup/each 91701
Large ceiling cup/each for T-bars 25 mm 91703
4. Continuous coupler – straight.
Continuous lighting installation is supplemented with end cap and
wire suspension
Continuous connector including friction locks, white/black/each 94992
Continuous connector including friction locks, grey/white/each 94993
5. Continuous coupler – flexible.
Continuous lighting installation is supplemented with end-plates
and wire suspension
Continuous coupler incl. friction locks/each 94994
6. End cap for continuous lighting installation.
End cap, white/black/pair 94990
End cap, grey/white/pair 94991
Transparent diffuser.
Transparent diffuser in acrylic, spare part – included in the luminaire.
Transparent diffuser 28/54 W 94995
Transparent diffuser 35/49/80 W 94996
