Avion - 16 Pages

1x35 W, Beta 2x35 W, Beta 1x35 W, Lamell 2x35 W, Lamell
52
D²
D
D¹
D
D
D³
206
W D¹ D² D³ D D D
28 1200 1275 1350 1330 1460 1335
35 1500 1575 1650 1630 1760 1635
49 1500 1575 1650 1630 1760 1635
54 1200 1275 1350 1330 1460 1335
Installation
Wire pendant (single wire). Friction locks included
with luminaire. The luminaire is supplied in a balanced
design for single wires.
Connection
Single – the luminaire is equipped with a 2.4 m mains
cable 3x0.75 mm² and an earthed plug as standard. Luminaires
ordered with SwitchDim or DALI are equipped
with with 2.4 m mains cable 5x0.75 mm² excl. plug.
Continuous installation – 5-way snap-in terminal block
at each end and 3x1.5 mm² through-wiring as standard.
With dimming, 5-way snap-in terminal block, 1-phase
through-wiring possible.
Design
Body in extruded aluminium and ends in cast aluminium.
The luminaire is finished in a white/black (RAL 9003
structured/RAL 9005) or alu-grey/white (RAL 9006 structured/
RAL 9003) design. The top cover is transparent
acrylic plastic. Luminaires for continuous installation
require end caps – must be ordered separately.
Louvre
Beta – double parabolic reflector louvre with side and
cross blades of satin matt, metallised aluminium with
very good reflection characteristics (> 92 %), integrated
into a single unit.
Lamell – alu-grey enamelled sheet steel, cross blade
louvre.
Reflector
Reflector material of metallised aluminium with satin
matt surface.
Accessories
See accessories page.
Emergency lighting
Some variants available with emLED.

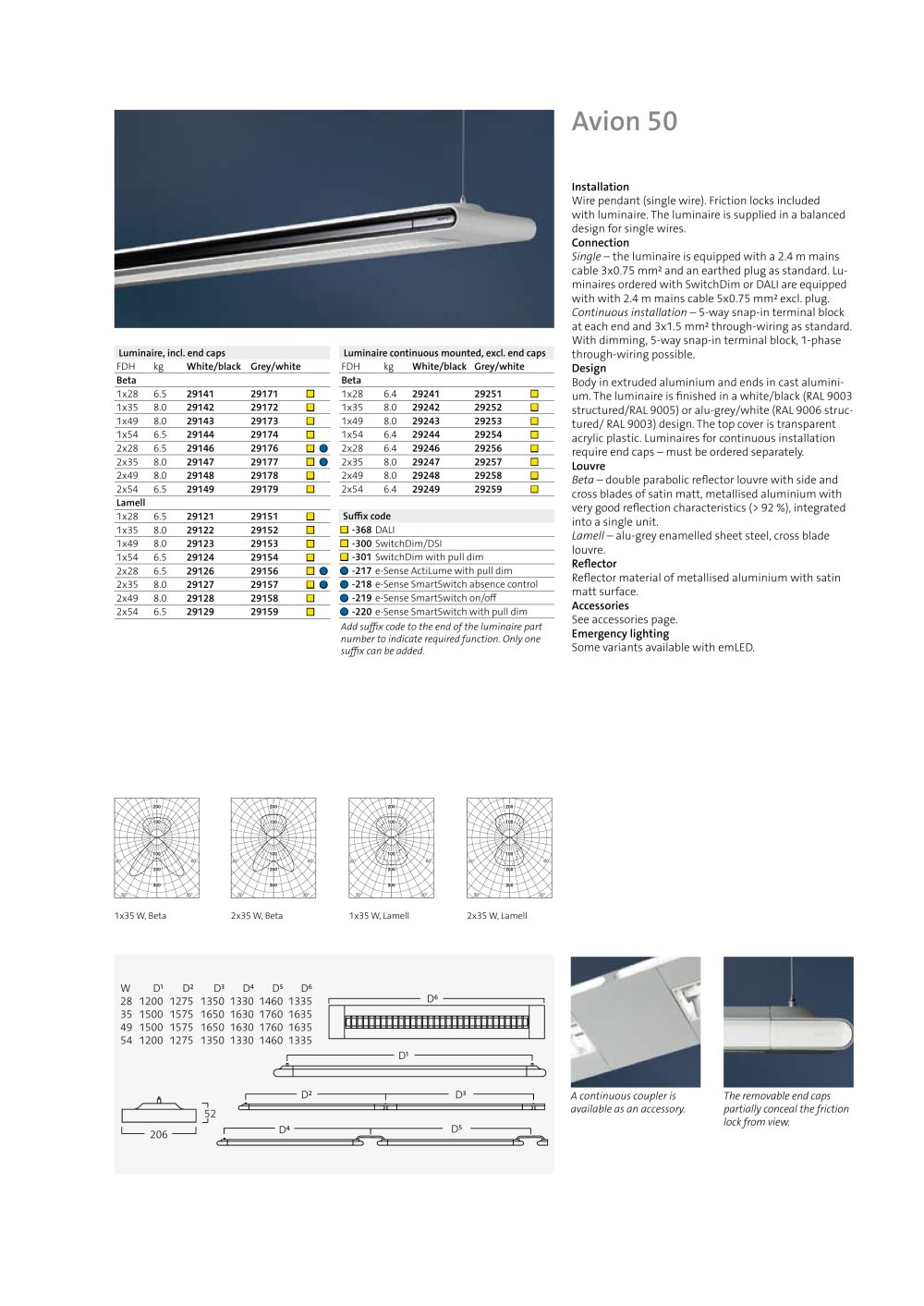

Avion 50
Luminaire, incl. end caps
FDH kg White/black Grey/white
Beta
1x28 6.5 29141 29171 ¡
1x35 8.0 29142 29172 ¡
1x49 8.0 29143 29173 ¡
1x54 6.5 29144 29174 ¡
2x28 6.5 29146 29176 ¡ œ
2x35 8.0 29147 29177 ¡ œ
2x49 8.0 29148 29178 ¡
2x54 6.5 29149 29179 ¡
Lamell
1x28 6.5 29121 29151 ¡
1x35 8.0 29122 29152 ¡
1x49 8.0 29123 29153 ¡
1x54 6.5 29124 29154 ¡
2x28 6.5 29126 29156 ¡ œ
2x35 8.0 29127 29157 ¡ œ
2x49 8.0 29128 29158 ¡
2x54 6.5 29129 29159 ¡
Luminaire continuous mounted, excl. end caps
FDH kg White/black Grey/white
Beta
1x28 6.4 29241 29251 ¡
1x35 8.0 29242 29252 ¡
1x49 8.0 29243 29253 ¡
1x54 6.4 29244 29254 ¡
2x28 6.4 29246 29256 ¡
2x35 8.0 29247 29257 ¡
2x49 8.0 29248 29258 ¡
2x54 6.4 29249 29259 ¡
Suffix code
¡ -368 DALI
¡ -300 SwitchDim/DSI
¡ -301 SwitchDim with pull dim
œ -217 e-Sense ActiLume with pull dim
œ -218 e-Sense SmartSwitch absence control
œ -219 e-Sense SmartSwitch on/off
œ -220 e-Sense SmartSwitch with pull dim
Add suffix code to the end of the luminaire part
number to indicate required function. Only one
suffix can be added.
A continuous coupler is
available as an accessory.
The removable end caps
partially conceal the friction
lock from view.
