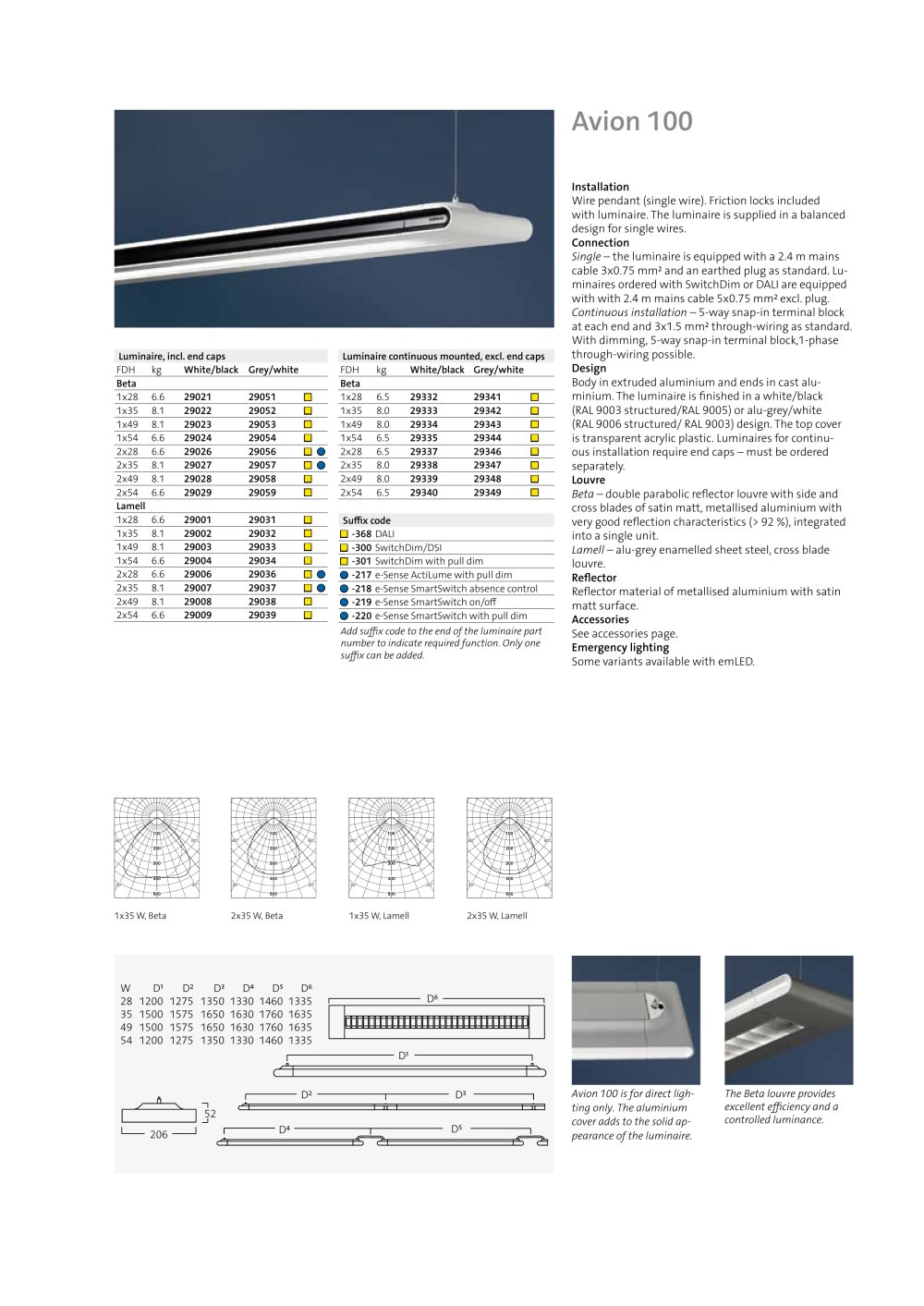

Avion - 16 Pages

1x35 W, Beta 2x35 W, Beta 1x35 W, Lamell 2x35 W, Lamell
52
D²
D
D¹
D
D
D³
206
W D¹ D² D³ D D D
28 1200 1275 1350 1330 1460 1335
35 1500 1575 1650 1630 1760 1635
49 1500 1575 1650 1630 1760 1635
54 1200 1275 1350 1330 1460 1335
Installation
Wire pendant (single wire). Friction locks included
with luminaire. The luminaire is supplied in a balanced
design for single wires.
Connection
Single –
the luminaire is equipped with a 2.4 m mains
cable 3x0.75 mm² and an earthed plug as standard. Luminaires
ordered with SwitchDim or DALI are equipped
with with 2.4 m mains cable 5x0.75 mm² excl. plug.
Continuous installation – 5-way snap-in terminal block
at each end and 3x1.5 mm² through-wiring as standard.
With dimming, 5-way snap-in terminal block,1-phase
through-wiring possible.
Design
Body in extruded aluminium and ends in cast aluminium.
The luminaire is finished in a white/black
(RAL 9003 structured/RAL 9005) or alu-grey/white
(RAL 9006 structured/ RAL 9003) design. The top cover
is transparent acrylic plastic. Luminaires for continuous
installation require end caps – must be ordered
separately.
Louvre
Beta – double parabolic reflector louvre with side and
cross blades of satin matt, metallised aluminium with
very good reflection characteristics (> 92 %), integrated
into a single unit.
Lamell – alu-grey enamelled sheet steel, cross blade
louvre.
Reflector
Reflector material of metallised aluminium with satin
matt surface.
Accessories
See accessories page.
Emergency lighting
Some variants available with emLED.
Avion 100
Luminaire, incl. end caps
FDH kg White/black Grey/white
Beta
1x28 6.6 29021 29051 ¡
1x35 8.1 29022 29052 ¡
1x49 8.1 29023 29053 ¡
1x54 6.6 29024 29054 ¡
2x28 6.6 29026 29056 ¡ œ
2x35 8.1 29027 29057 ¡ œ
2x49 8.1 29028 29058 ¡
2x54 6.6 29029 29059 ¡
Lamell
1x28 6.6 29001 29031 ¡
1x35 8.1 29002 29032 ¡
1x49 8.1 29003 29033 ¡
1x54 6.6 29004 29034 ¡
2x28 6.6 29006 29036 ¡ œ
2x35 8.1 29007 29037 ¡ œ
2x49 8.1 29008 29038 ¡
2x54 6.6 29009 29039 ¡
Suffix code
¡ -368 DALI
¡ -300 SwitchDim/DSI
¡ -301 SwitchDim with pull dim
œ -217 e-Sense ActiLume with pull dim
œ -218 e-Sense SmartSwitch absence control
œ -219 e-Sense SmartSwitch on/off
œ -220 e-Sense SmartSwitch with pull dim
Add suffix code to the end of the luminaire part
number to indicate required function. Only one
suffix can be added.
Luminaire continuous mounted, excl. end caps
FDH kg White/black Grey/white
Beta
1x28 6.5 29332 29341 ¡
1x35 8.0 29333 29342 ¡
1x49 8.0 29334 29343 ¡
1x54 6.5 29335 29344 ¡
2x28 6.5 29337 29346 ¡
2x35 8.0 29338 29347 ¡
2x49 8.0 29339 29348 ¡
2x54 6.5 29340 29349 ¡
Avion 100 is for direct lighting
only. The aluminium
cover adds to the solid appearance
of the luminaire.
The Beta louvre provides
excellent efficiency and a
controlled luminance.
