Pagoda - 2 Pages

  1. P. 1

  2. P. 2

Catalogue excerpts

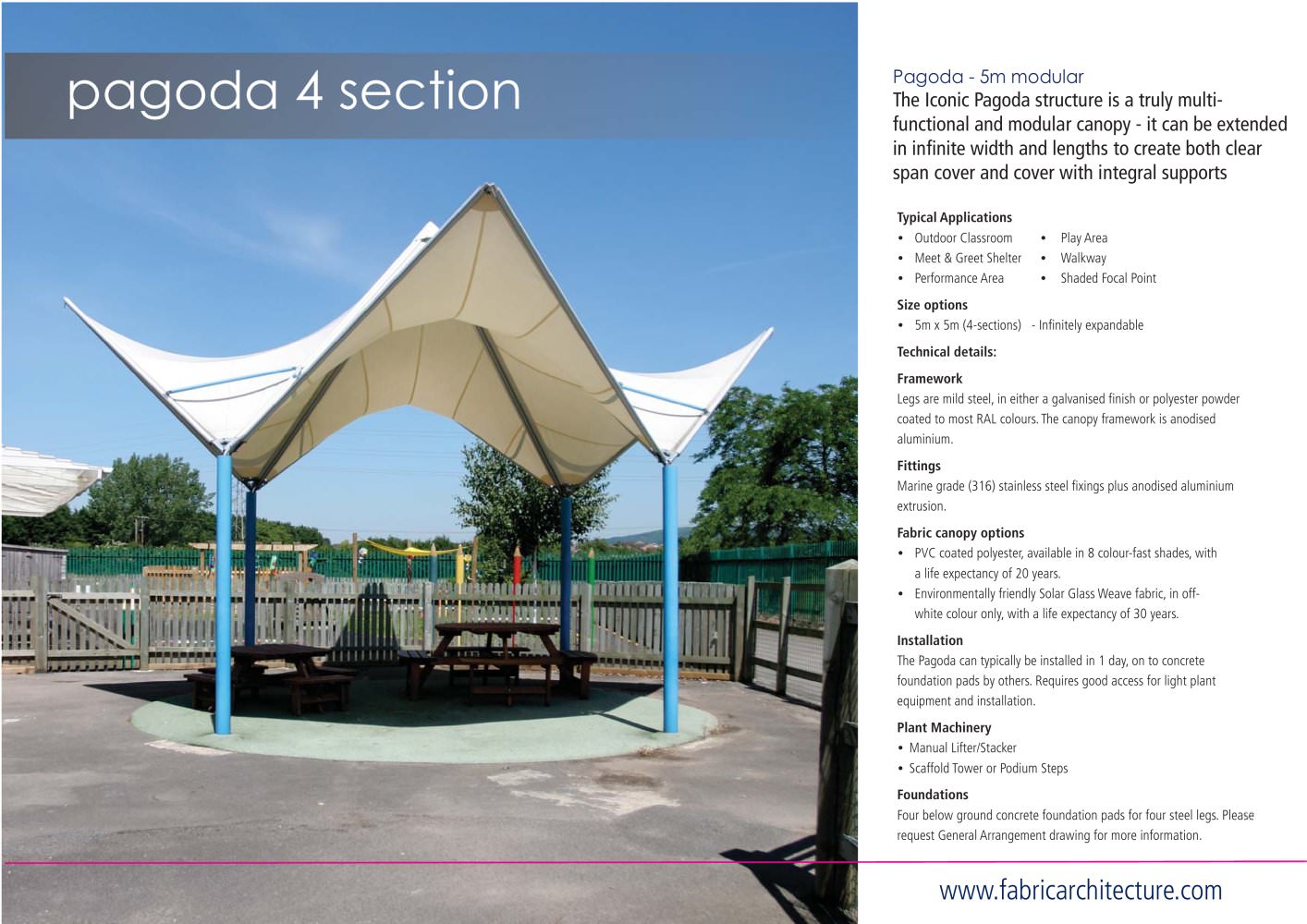

pagoda 4 section The Iconic Pagoda structure is a truly multi-functional and modular canopy - it can be extended in infinite width and lengths to create both clear span cover and cover with integral supports Pagoda - 5m modular Four below ground concrete foundation pads for four steel legs. Please request General Arrangement drawing for more information. Foundations ? ? The Pagoda can typically be installed in 1 day, on to concrete foundation pads by others. Requires good access for light plant equipment and installation. Plant Machinery Installation ? ? Fabric canopy options Technical details: Framework Marine grade (316) stainless steel fixings plus anodised aluminium extrusion. Legs are mild steel, in either a galvanised finish or polyester powder coated to most RAL colours. The canopy framework is anodised aluminium. Fittings ? Size options ? ? ? Typical Applications Scaffold Tower or Podium Steps Manual Lifter/Stacker Environmentally friendly Solar Glass Weave fabric, in off-white colour only, with a life expectancy of 30 years. PVC coated polyester, available in 8 colour-fast shades, with a life expectancy of 20 years. 5m x 5m (4-sections) - Infinitely expandable Performance Area Meet & Greet Shelter Outdoor Classroom www.fabricarchitecture.com ? ? ? Shaded Focal Point Walkway Play Area >

 Open the catalogue to page 1

fabric architecture Award winning canopy is striking and provides excellent shade and shelter Iconic Form Unit B4 Nexus, Gloucester Business Park, Hurricane Rd, Brockworth, Glos. GL3 4AG fabric architecture limited T All dimensions quoted are approximate. Our policy is one of continuous improvement. Whilst every effort has been made to achieve the degree of reliability and accuracy appropriate to a product ofthis kind, the right is reserved to make changes at any time, without notice, to prices, materials, specifications and models. In no circumstance will Fabric Architecture Ltd, its servants...

 Open the catalogue to page 2
