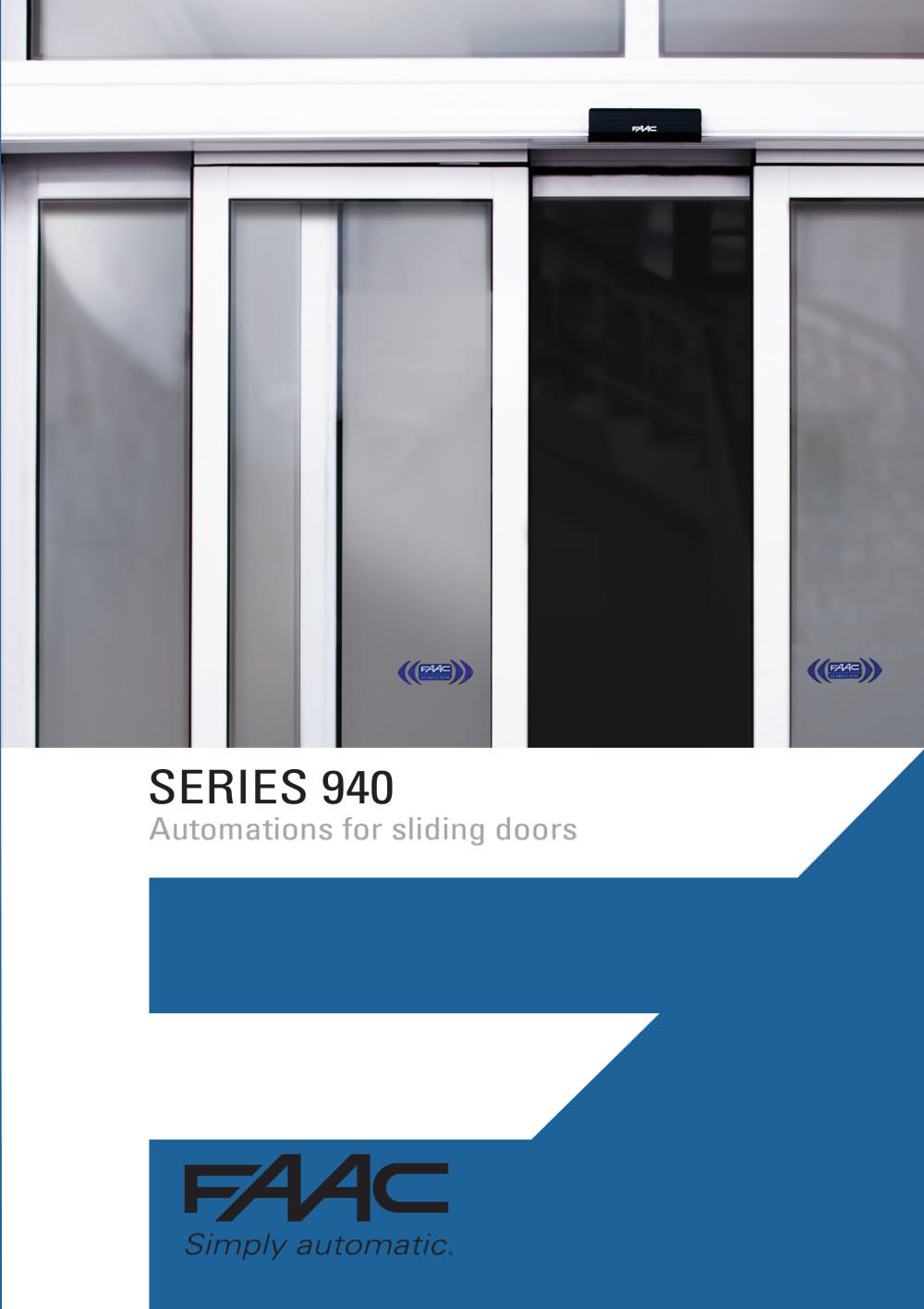

SErIES 940 Automations for sliding doors

Series 940 Telescopic automations for sliding doors with single or double motor for very heavy leaves and continuous duty ƒÞ An automated system line designed to meet all your needs • 940 SM max. capacity 110+110 or 140 kg each leaf • 940 SMD with double motor max. capacity 180+180 or 250 kg each leaf • 940 SMA and SMDA with self-supporting head profile for fixing the automated system between two walls or an aisle • 940 SMT Telescopic with two or four sliding leaves. ƒÞ Reliability Thanks to the careful choice of high technology mechanical and electronic components Faac Series 940...

Open the catalog to page 2

6 1 Trolleys with steel wheels and teflon rail 3 Model 940 SM1 940 SM2 940 SMA1 940 SMA2 940 SMD1 940 SMD2 940 SMDA1 940 SMDA2 940 SMT2 940 SMT4 940 SMTA2 940 SMTA4 Use Automatic adjustments Open and closed positions identified Measurement of leaf weights and Selection of optimum speed, acceleration Photocell test Anti-crushing safety at 150 N 1 Motor with electrical lock 2 Microprocessor control unit 3 Trolleys with steel wheels and teflon rail 4 Toroidal transformer and emergency batteries 5 Drive trolley 6 Knob for manual release 7 Eyelets for a fast mechanical installation Accessories...

Open the catalog to page 3

Technical specifications 940 SM Electric power supply 230 V ac (+6%-10%) 50 (60) Hz Power consumption 100 W Frequency of use 100% Drive unit 24 V dc motor with encoder Head profile length VP x 2 + 100 mm Drive by electro-driven toothed belt Opening/closing speed adjustable (two leaves) 20÷180 cm/s Emergency opening/closing speed adjustable Pause time adjustable from 0 to 30 s Static force 150 N (self-learning adjustment) Partial opening adjustable (two leaves) from 10% ÷ 90% of total travel Anti-crushing device standard Photocells fail-safe standard (can be excluded) Protection class IP 23...

Open the catalog to page 4

940 SM 230 V ac (+6%-10%) 50 (60) Hz 100 W 100% 24 V dc motor with encoder VP x 2 + 100 mm by electro-driven toothed belt adjustable (two leaves) 20÷180 cm/s adjustable adjustable from 0 to 30 s 150 N (self-learning adjustment) adjustable (two leaves) from 10%÷90% of total travel standard standard (can be excluded) IP 23 (for indoor use only) -20°C ÷ +55°C DOUBLE MOTOr version

Open the catalog to page 5

Automated system certified for 2,000,000 continuous cycles without maintenance Time slot programmable calendar management

Open the catalog to page 6

PrOGrAMMING DISPLAY Programming display Main functions Entering of access password Opening speed adjustment Closing speed adjustment Anti break-in function management Pause times adjustment Anti-crushing adjustment Diagnostic display Weekly calendar management Management of interlock with or without memory Selection of battery operation logics Confi guration of 3 outputs on the control unit Confi guration of 2 emergency inputs on the control unit Display of number of cycles carried out Management of 5 daily time slots SD KEEPEr FUNCTIONS KEYBOArD SD Keeper functions keyboard Main functions...

Open the catalog to page 7

908470004 - rev. 11 - 5.000 - Zucchini - 03/2009. The descriptions and illustrations in this document are not binding. FAAC reserves the right to make technical modifi cations to the product without any notice. HEADQUARTERS FAAC SpA Via Benini, 1 – 40069 Zola Predosa (BO) – Italy Tel. +39 05161724 Fax +39 051 758518 www.faacgroup.com – info@faac.it FAAC SUBSIDIARIES FAAC AG Tel. +41 52 3461721 Fax +41 52 3461723 Illnau, Switzerland www.faac.ch FAAC FrANCE Tel. +33 472218700 Fax +33 472218701 Corbas, France www.faac.fr FAAC GMBH Tel. +49 8654 49810 Fax +49 8654 498125 Freilassing, Germany...
