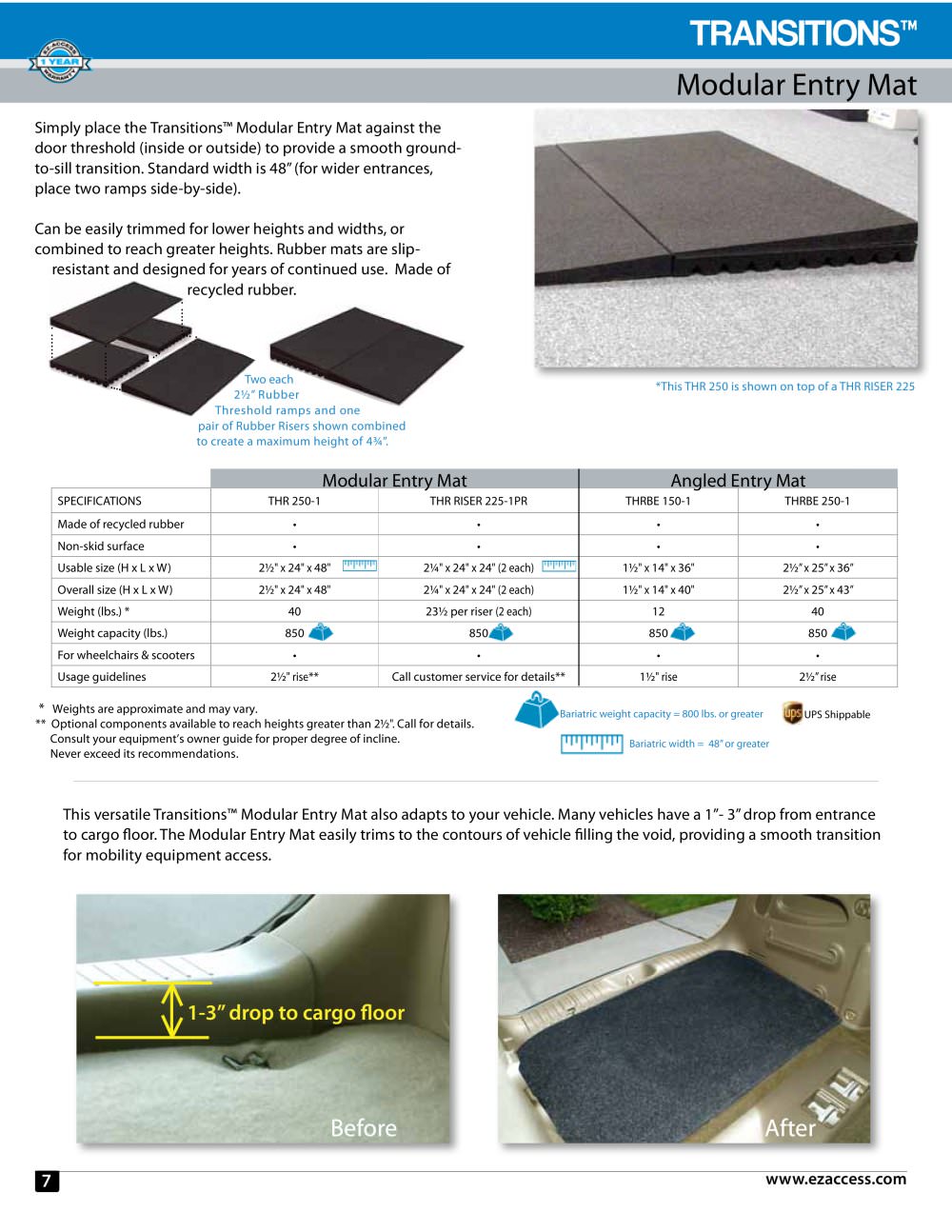

Portable Ramp - 8 Pages

TRANSITIONS™
Modular Entry Mat
Simply place the Transitions™ Modular Entry Mat against the
door threshold (inside or outside) to provide a smooth groundto-sill transition. Standard width is 48” (for wider entrances,
place two ramps side-by-side).
Can be easily trimmed for lower heights and widths, or
combined to reach greater heights. Rubber mats are slipresistant and designed for years of continued use. Made of
recycled rubber.

Two each
2½” Rubber
Threshold ramps and one
pair of Rubber Risers shown combined
to create a maximum height of 4¾”.

*This THR 250 is shown on top of a THR RISER 225

Modular Entry Mat
SPECIFICATIONS

Angled Entry Mat

THR 250-1

Non-skid surface

THRBE 150-1

THRBE 250-1

•

Made of recycled rubber

THR RISER 225-1PR
•

•

Usable size (H x L x W)

2½" x 24" x 48"

2¼" x 24" x 24" (2 each)

1½" x 14" x 36"

2½” x 25” x 36”

Overall size (H x L x W)

2½" x 24" x 48"

2¼" x 24" x 24" (2 each)

1½" x 14" x 40"

2½” x 25” x 43”

Weight (lbs.) *

23½ per riser (2 each)

Weight capacity (lbs.)

850

•

2½" rise**

Call customer service for details**

1½" rise

2½” rise

For wheelchairs & scooters
Usage guidelines

* Weights are approximate and may vary.
** Optional components available to reach heights greater than 2½". Call for details.
Consult your equipment’s owner guide for proper degree of incline.
Never exceed its recommendations.

Bariatric weight capacity = 800 lbs. or greater

UPS Shippable

Bariatric width = 48” or greater

This versatile Transitions™ Modular Entry Mat also adapts to your vehicle. Many vehicles have a 1”- 3” drop from entrance
to cargo floor. The Modular Entry Mat easily trims to the contours of vehicle filling the void, providing a smooth transition
for mobility equipment access.

1-3” drop to cargo floor

Before
7

After
www.ezaccess.com
