Stand
|
Portable Ramp - 16 Pages

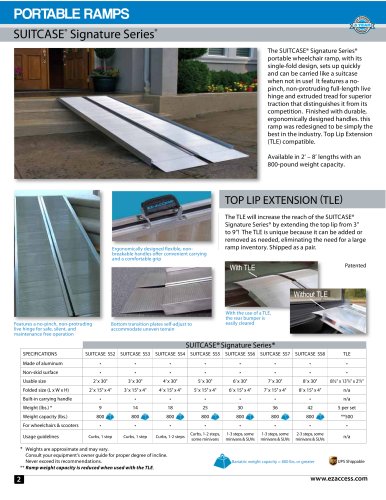

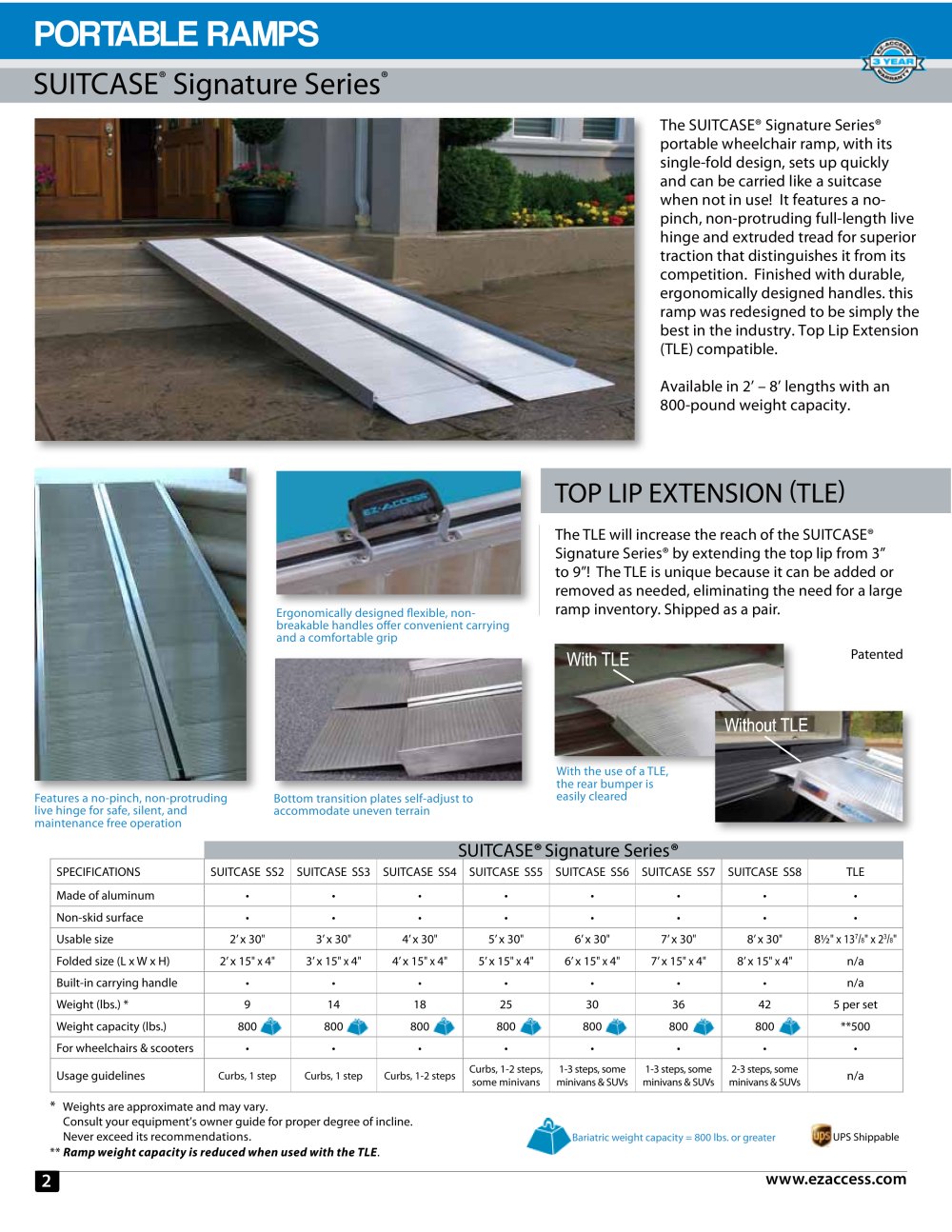

SUITCASE® Signature Series® RAMP
Redesigned Top to Bottom
We are proud to introduce the
SUITCASE® Signature Series®
portable wheelchair ramp. Its single-
fold design sets up quickly and folds
in half lengthwise to be carried
like a suitcase when not in use and
features several innovative design
enhancements. From the no-pinch,
non-protruding full-length live
hinge and durable, economically
designed handles to the enhanced
extruded tread for superior traction,
this ramp was redesigned from the
ground up to be simply the best
in the industry. Top Lip Extension
(TLE) compatible. Available in 2' - 8'
lengths with an 800-pound weight
capacity.
Economically designed flexible, non-
breakable handles offer convenient carrying
and a comfortable grip
OPTIONAL
TOP LIP EXTENSION (TLE)
The TLE will increase the reach of the SUITCASE®
Signature Series® portable wheelchair ramp by
extending the lip from the standard 3" length to
9". The EZ-ACCESSTLE is unique because it can be
added or removed as needed, eliminating the need
for a large ramp inventory. Shipped as a pair.
Features a no-pinch, non-protruding
live hinge for safe, silent, and
maintenance free operation
Bottom transition plates self-adjust to
accommodate uneven terrain
With the use of a TLE
the rear bumper is
easily cleared
SPECIFICATIONS | SUITCASE SS2 | SUITCASE SS3 | SUITCASE SS4 | SUITCASE SS5 | SUITCASE SS6 | SUITCASE SS7 | SUITCASE SS8 | TLE |
Made of aluminum | ||||||||
Non-skid surface | ||||||||
Usable size | 2'x 30" | 3'x 30" | 4'x 30" | 5'x 30" | 6'x 30" | 7'x 30" | 8'x 30" | 81/2,,X137/8"X23/B" |
Folded size(LxWxH) | 24" X 15"x4" | 36" X 15"x4" | 48" X 15"x4" | 60" X 15"x4" | 72" X 15"x4" | 84" X 15"x4" | 96" X 15"x4" | n/a |
Built-in carrying handle | n/a | |||||||
Weight (lbs.) * | 9 | 14 | 18 | 25 | 30 | 36 | 42 | 5 per set |
Weight capacity (lbs.) | 800 4^ | 800 4^ | 800 4^ | 800 4^ | 800 4^ | 800 4^ | 800 4^ | **500 |
For wheelchairs & scooters | ||||||||
Usage guidelines | Curbs, 1 step | Curbs, 1 step | Curbs, 1-2 steps | Curbs, 1-2 steps, some minivans | 1 -3 steps, some minivans &SUVs | 1 -3 steps, some minivans &SUVs | 2-3 steps, some minivans &SUVs _ | n/a |
Weights are approximate and may vary.
Consult your equipment's owner guide for proper degree of incline. Never exceed its recommendations.
1 Ramp weight capacity is reduced when used with the TLE.
Bariatric weight capacity = 800 lbs. or greater
lUPS Shippable
www.ezaccess.com
-
