Qik Automatic Barriers 5
• CE marking
• Direct current motor with high performance in terms of
speed and number of operations; alternating current motor
suitable for all applications requiring lower performance
and shorter life
• Gear motor mounted at right angle with the barrier exit in
order to avoid the use of a lever system and to leave more
space available for the control unit
• Simple to install, the system ensures a very easy access to
the control unit

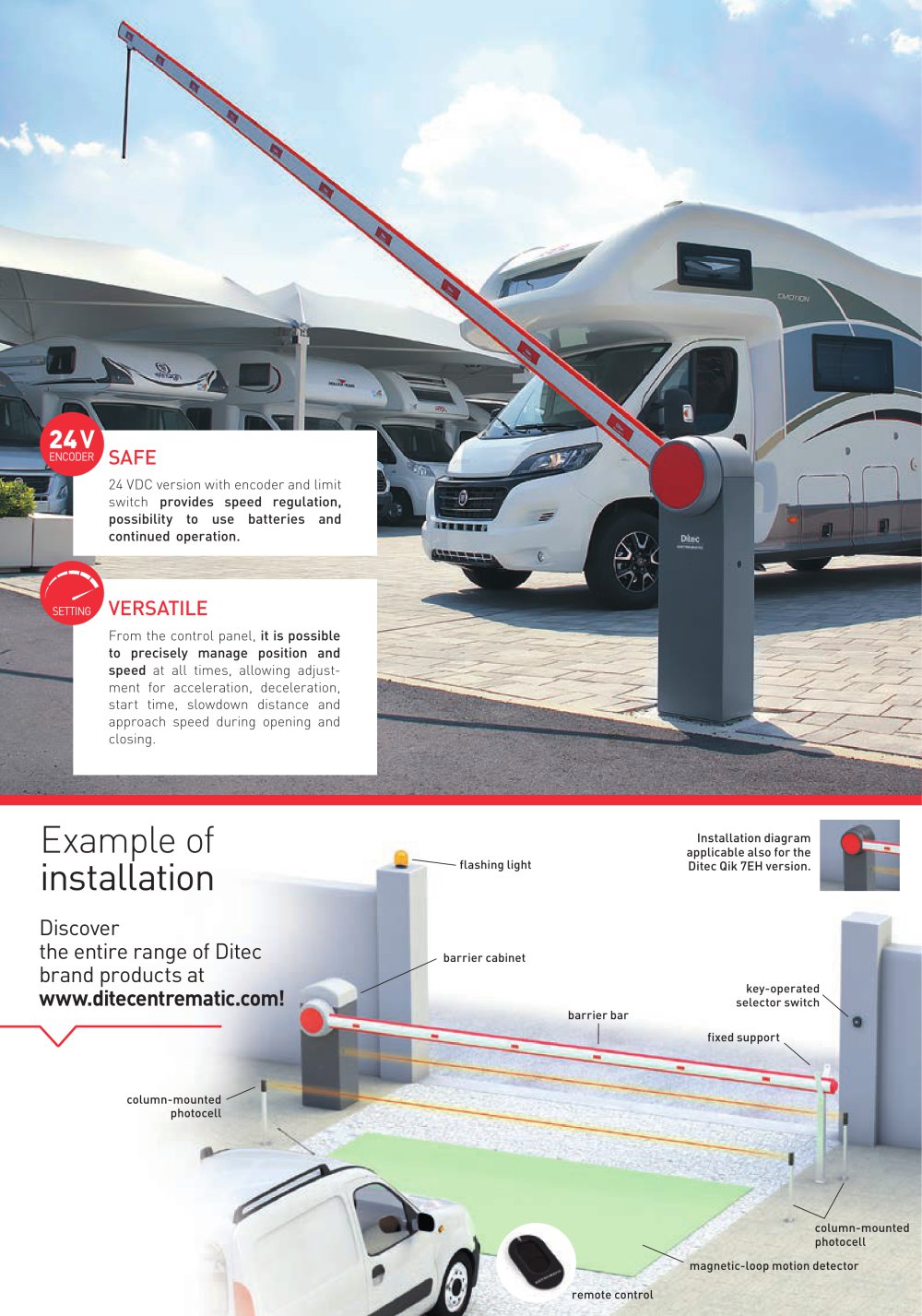

• The 24 V version with encoder and limit switch allows
slowdowns and speed control. Possibility of using batteries
and operating intermittency
• In the Qik 80, the MD1 display module can be used for the
diagnostics and enhanced control of panel adjustments,
updatable by means of DMCS software
Distinctive features and main functions
Accessories
• Provision for photocell installation on fixed mounting
• Red reflective strips
• Fixed mounting / Moving mounting
• Vandal proof electrically operated lock
• Aluminium skirting
• Arm pivot pin kit at 90°
• Batteries / Light kit
• Display module for diagnostics and enhanced control
Technical Specifications
Description: QIK 4E QIK 7EH QIK 60EH QIK 70EH QIK 80EH
Barriers up to 3.5 m long up to 5.8 m long up to 5.2 m long up to 5.7 m long up to 8 m long
Travel control system lever-type limit switch encoder encoder encoder encoder + limit switch
Arm length up to 3.7 m 6 m 5.55 m 6 m 8.35 m
Arm elliptic elliptic round elliptic round
Transit dimension 3.5 m 5.8 m 5.2 m 5.725 m 8 m
Duty class 4 - heavy 5 - very heavy 5 - very heavy 5 - very heavy 4 - heavy
Intermittent operation
S2 = 15 min
S3 = 30%
S2 = 60 min
S3 = 60%
S2 = 60 min
S3 = 60%
S2 = 60 min
S3 = 60%
S2 = 50 min
S3 = 50%
Power supply
50 Hz
50-60 Hz
50-60 Hz
50-60 Hz
50-60 Hz
Insulation class class 1 class 1 class 1 class 1 class 1
Input 1.2 A 1 A 1 A 1 A 1.2 A
Torque 90 Nm 70 Nm 70 Nm 70 Nm 200 Nm
Opening time 4 s/90° 2÷6 s/90° 2÷6 s/90° 2÷6 s/90° 6÷12 s/90°
Closing time 2÷6 s/90° 2÷6 s/90° 2÷6 s/90° 6÷12 s/90°
Release system for manual opening Key-operated Key-operated Key-operated Key-operated Key-operated
Operating temperature
-20°C / +55°C
(-35°C / +55°C
with NIO enabled)
-20°C / +55°C
(-10°C / +50°C
with battery)
-20°C / +55°C
(-35°C / +55°C
with NIO enabled)
(-10°C / +50°C
with battery)
-20°C / +55°C
(-35°C / +55°C
with NIO enabled)
(-10°C / +50°C
with battery)
-20°C / +55°C
(-35°C / +55°C
with NIO enabled)
(-10°C / +50°C
with battery)
Protection rating IP 24D IP 24D IP 24D IP 24D IP 24D
Product dimensions (mm) 300x320x1050 300x320x1050 405x525x1180 405x460x1180 405x525x1180
Control panel E1A (built-in) 73RQ (built-in) 73RQ (built-in) 73RQ (built-in) EL34 (built-in)
-
