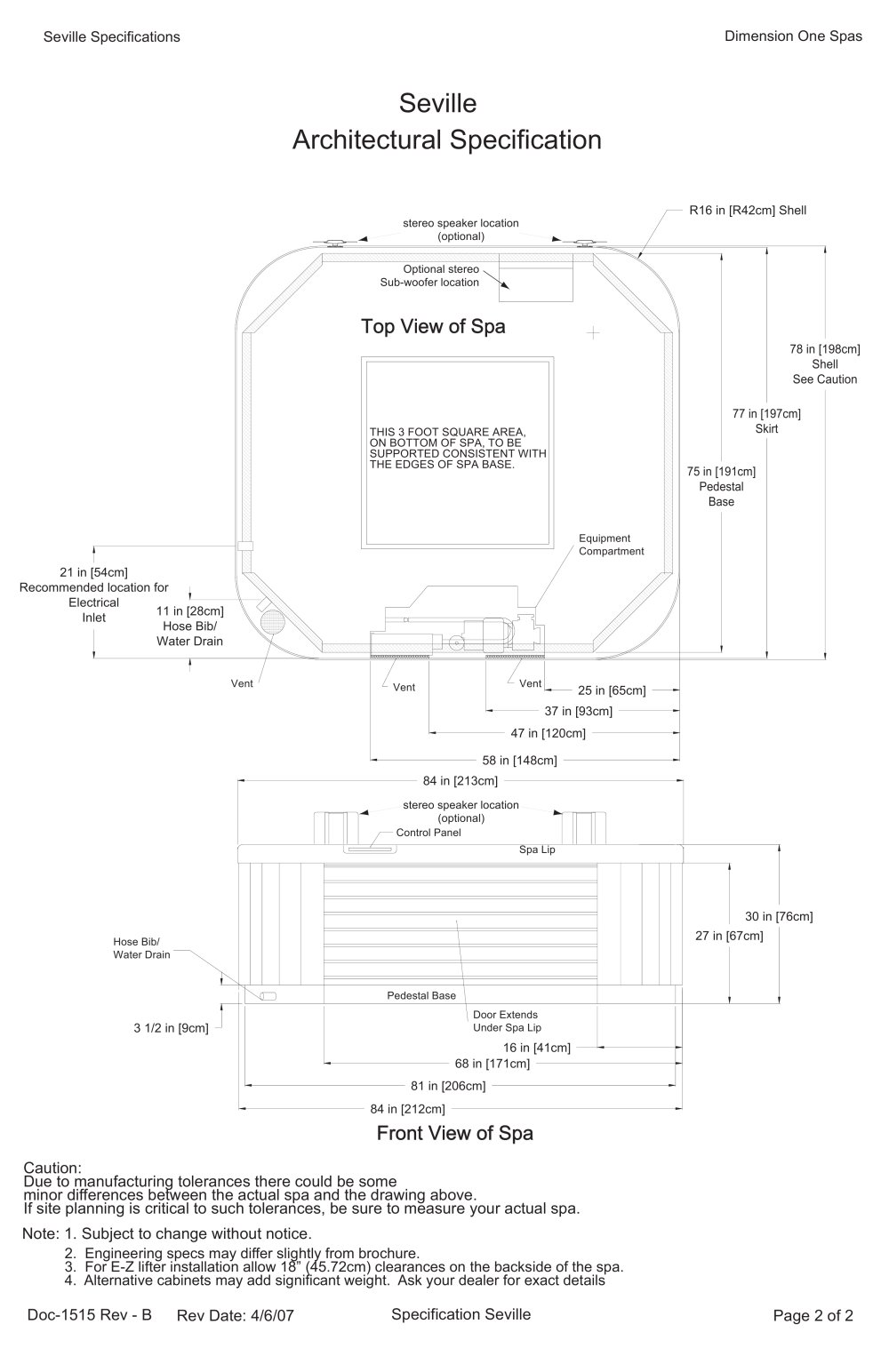

Seville

Architectural Specification

R16 in [R42cm] Shell
stereo speaker location(optional) Optional stereoSub-woofer location

Top View of Spa

78 in [198cm]ShellSee Caution 77 in [197cm]Skirt
THE EDGES OF SPA BASE.SUPPORTED CONSISTENT WITH ON BOTTOM OF SPA, TO BE THIS 3 FOOT SQUARE AREA, 75 in [191cm]PedestalBase
Equipment Compartment 21 in [54cm]Recommended location forElectricalInlet 11 in [28cm]Hose Bib/Water Drain
Vent Vent Vent 25 in [65cm] 37 in [93cm] 47 in [120cm] 58 in [148cm] 84 in [213cm]
stereo speaker location(optional) Control Architectural panel Spa Lip Pedestal Base 30 in [76cm]
Hose Bib/Water Drain 27 in [67cm]
Door furniture ExtendsUnder Spa Lip 3 1/2 in [9cm] 16 in [41cm] 68 in [171cm] 81 in [206cm] 84 in [212cm]

Front View of Spa Front View of Spa

Caution:Due to manufacturing tolerances there could be some minor differences between the actual spa and the drawing above. If site planning is critical to such tolerances, be sure to measure your actual spa. Note: 1. Subject to change without notice.

2. Engineering specs may differ slightly from brochure.3. For E-Z lifter installation allow 18” (45.72cm) clearances on the backside of the spa. 4. Alternative cabinets furniture may add significant weight. Ask your dealer for exact details

Specification SevilleDoc-1515 Rev - BRev Date: 4/6/07 Page 2 of 2
