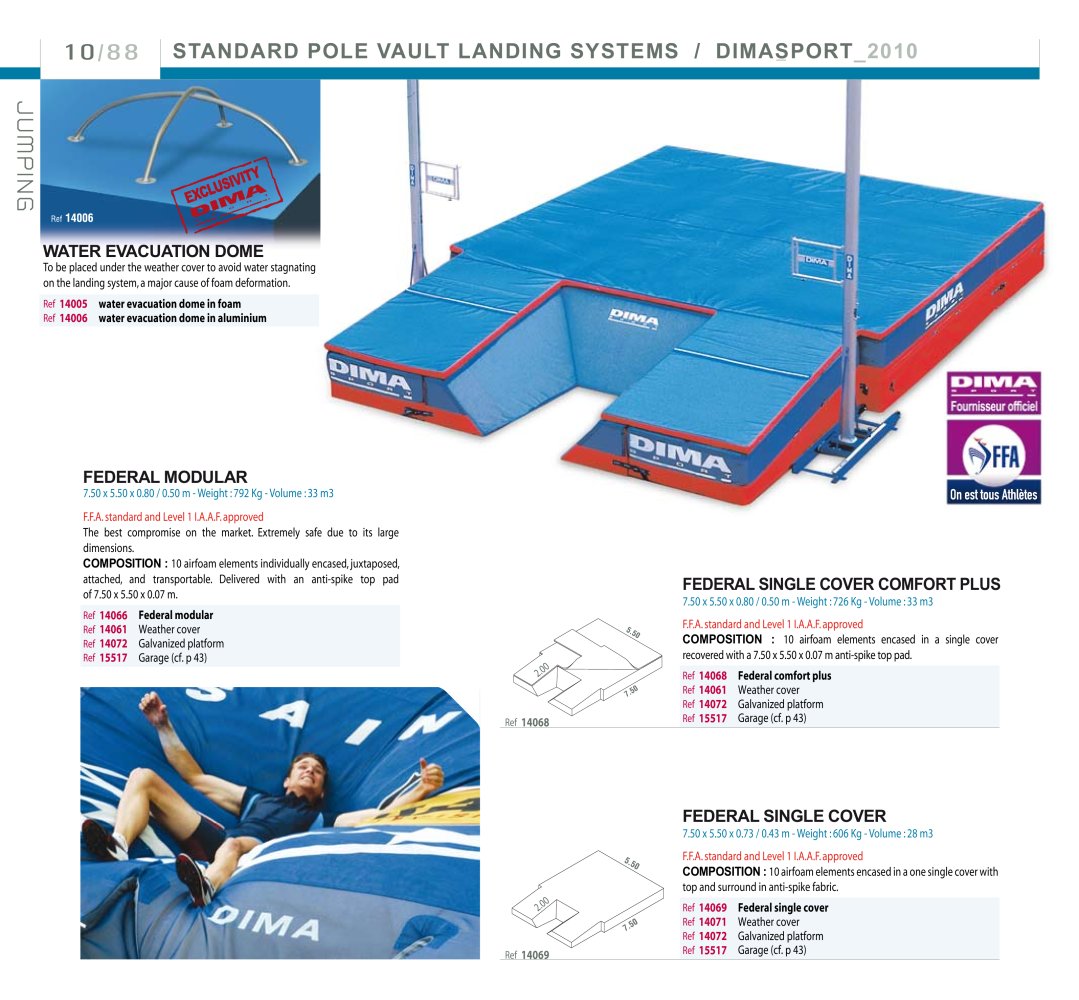

10/88 STANDARD POLE VAULT LANDING SYSTEMS / DIMASPORT_2010
JUMPING
FEDERAL MODULAR
F.F.A. standard and Level 1 I.A.A.F. approved
The best compromise on the market. Extremely safe due to its large
dimensions.
COMPOSITION : 10 airfoam elements individually encased, juxtaposed,
attached, and transportable. Delivered with an anti-spike top pad
of 7.50 x 5.50 x 0.07 m.
7.50 x 5.50 x 0.80 / 0.50 m - Weight : 792 Kg - Volume : 33 m3
Ref 14066 Federal modular
Ref 14072 Galvanized platform
Ref 15517 Garage (cf. p 43)
Ref 14061 Weather cover
WATER EVACUATION DOME
To be placed under the weather cover to avoid water stagnating
on the landing system, a major cause of foam deformation.
Ref 14005 water evacuation dome in foam
Ref 14006 water evacuation dome in aluminium
FEDERAL SINGLE COVER COMFORT PLUS
F.F.A. standard and Level 1 I.A.A.F. approved
COMPOSITION : 10 airfoam elements encased in a single cover
recovered with a 7.50 x 5.50 x 0.07 m anti-spike top pad.
7.50 x 5.50 x 0.80 / 0.50 m - Weight : 726 Kg - Volume : 33 m3
Ref 14068 Federal comfort plus
Ref 14072 Galvanized platform
Ref 15517 Garage (cf. p 43)
Ref 14061 Weather cover
FEDERAL SINGLE COVER
F.F.A. standard and Level 1 I.A.A.F. approved
COMPOSITION : 10 airfoam elements encased in a one single cover with
top and surround in anti-spike fabric.
7.50 x 5.50 x 0.73 / 0.43 m - Weight : 606 Kg - Volume : 28 m3
Ref 14069 Federal single cover
Ref 14072 Galvanized platform
Ref 15517 Garage (cf. p 43)
Ref 14071 Weather cover
Ref 14068
Ref 14069
-
