Un classico dal design sobrio e rigoroso. Fly Line è il ra­diatore piatto, concepito per integrarsi in modo versatile alla casa. Il suo carattere essenziale ne fa un modello irrésistible, indifferente al tempo che passa.
A classic of rigorous design values. Fly Line is a flat building radiator, designed for ver­satile integration into the wall. Its simplicity makes it a design that will stand the test of time.
Un classique au design sobre et rigoureux Fry Line est le radiateur plat, conçu pour s'intégrer de façon poryvalen-te aux murs de la maison, Son caractère essentiel en fait un modèle irrésistible, indifférent au temps qui passe.
Un clásico con un diseño sobrio y riguroso. Fry Line es el radiador plano. creado para integrarse de manera versátil con las paredes de la casa. Su esencialidad lo convierte en un modelo insuperable que vence el paso del tiempo.
i Flyline2 possono essere forniti fino a un massimo di 25 elementi cad. Flyline 2 can be supplied with up to a maximum of 25 elements eachi Les Flyline2 peuvent être fournis jusqu'à un maximum de 25 éléments chacun Cada flyline2 se suministra con un maximo de 25 elementos
CALCOLO DELLA LARGHEZZA "L" DEL CORPO SCALDANTE:
L = n x 74 + 6 ove n = numero di elementi prescelto esempio: un radiatore costituito da 10 elementi avrà una larghezza pari a L = 10 x 74 + 6 = 746 mm NOTA: per la stima della resa termica del corpo scaldante s rimanda al manuale tecnico DELTACALOR
CALCULATION OF THE WIDTH
"L" OF THE EFFECTIVE RADIATOR BODY:
L = n x 74 + 6 Where n = number of elements selected example: a 10 element radiator therefore has a width L = 10 x 74 + 6 = 746 mm
NOTE: when estimating the thermal output of the effective radia­tor body, refer to the DELTACALOR technical manual
CALCUL DE LA LARGEUR "L" DU CORPS DE CHAUFFE:
L = n x 74 + 6 où n = nombre d'éléments chois exemple : un radiateur de 10 éléments aura une largeur L = 10 x 74 + 6 = 746 mm
NOTA : pour l'évaluation du rendement thermique du corps de chauffe veuillez consulter le manuel technique DELTACALOR
CÁLCULO DE LA ANCHURA
"L" DEL CUERPO CALEFACTOR:
L = n x 74 + 6 donde n = número de elementos preseleccionados ejemplo: un radiador formado por 10 elementos tendrá una anchura L = 10 x 74 + 6 = 746 mm NOTA: para evaluar el rendimiento térmico del cuerpo calefactor; véase el 97 manual técnico DELTACALOR.

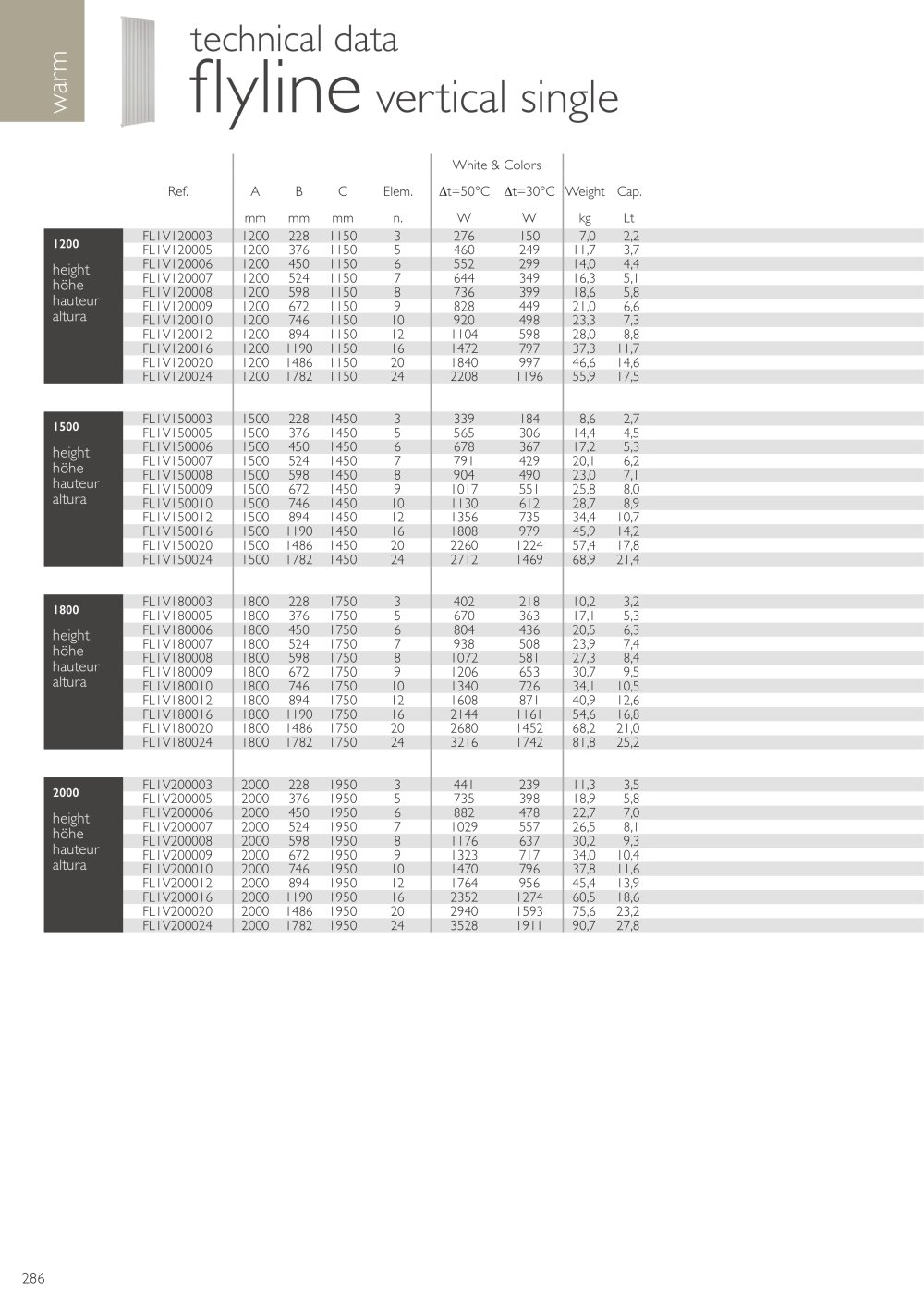

white & colors
A
B
C
At=50°C
mm
mm
mm
W
Kcal/h
FLI 060-000
600
74
550
49
42
FLI 090-000
900
74
850
70
6I
FLI 120-000
I200
74
II50
92
79
FLI 150-000
I500
74
I450
II3
97
FLI 180-000
I800
74
I750
I34
II5
FLI 200-000
2000
74
I950
I47
I26
FLI 250-000
2500
74
2450
I78
I53
FL2 060-000
600
74
550
76
65
FL2 090-000
900
74
850
I09
94
FL2 I20-000
I200
74
II50
I43
I23
FL2 I50-000
I500
74
I450
I77
I52
FL2 I80-000
I800
74
I750
209
I80
FL2 200-000
2000
74
I950
23I
I99
FL2 250-000
2500
74
2450
283
244
FLY LINE 1
LINE 2
Temperatura max di esercizio: 90° C Maximum operating temperature: 90 °C Température maximum de fonctionnement: 90 °C Temperatura max de funcionamento: 90 °C
Pressione max di esercizio: 500 kPa Maximum operating pressure: 500 kPa Pression maximum de fonctionnement: 500 kPa Presión max de funcionamento: 500 kPa
Fly line 2
Elemento radiante
TT
X
Mod. FLI ... - 000B
Mod. FL2 ... - 000B
X Dimensioni sezioni corpo scaldante Radiator body section dimensions Dimensions des sections du corps chauffant Dimensiones de las secciones del cuerpo calefactor
Z Sistemi di fissaggio a parete Wall fastening systems Systèmes d'installation murale Sistemas de fijación a la pared
Non disponibile nella versione per impianto monotubo Versión for single-pipe system not available. Non disponible dans la version pour installation mono-tube No está disponible en la versión para instalación monotubo
Non disponibili nella versione elettrica e mista Electric and mixed versions not available Versions électrique et mixte non disponibles No están disponibles en la versión eléctrica y mixta
Per le possibili configurazioni attacchi consultare le pagine 104-105 With regard to the possible connection set ups, consult pages 104-105 Pour les configurations possibles des raccords, consulter les pages 104-105 Para saber las posibles configuraciones de los enganches consulte las páginas 104-105
