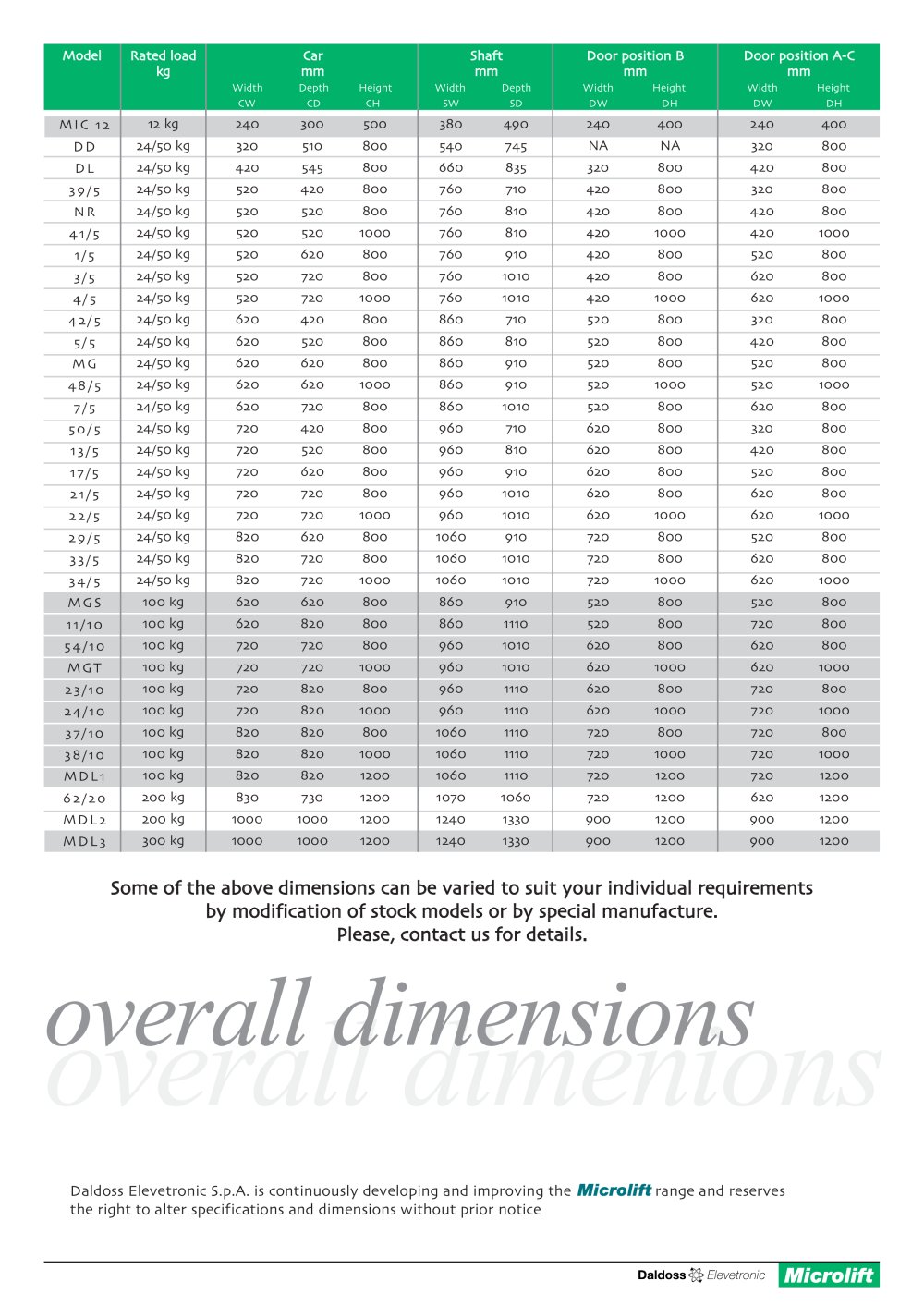

Model	Rated load kg	Width CW	Car mm Depth CD	Height CH	Width SW	Jhaft mm Depth SD	Door furniture Width DW	position B mm Height DH	Door Width DW	sosition A-C mm Height DH
MIC 12 DD	12 kg 24/50 kg	240 320	300 510	500 800	380 540	490 745	240 NA	400 NA	240 320	400 800
DL	24/50 kg	420	545	800	660	835	320	800	420	800
39/5	24/50 kg	520	420	800	760	710	420	800	320	800
NR	24/50 kg	520	520	800	760	810	420	800	420	800
41/5	24/50 kg	520	520	1000	760	810	420	1000	420	1000
1/5	24/50 kg	520	620	800	760	910	420	800	520	800
3/5	24/50 kg	520	720	800	760	1010	420	800	620	800
4/5	24/50 kg	520	720	1000	760	1010	420	1000	620	1000
42/5	24/50 kg	620	420	800	860	710	520	800	320	800
5/5	24/50 kg	620	520	800	860	810	520	800	420	800
MG	24/50 kg	620	620	800	860	910	520	800	520	800
48/5	24/50 kg	620	620	1000	860	910	520	1000	520	1000
7/5	24/50 kg	620	720	800	860	1010	520	800	620	800
50/5	24/50 kg	720	420	800	960	710	620	800	320	800
13/5	24/50 kg	720	520	800	960	810	620	800	420	800
17/5	24/50 kg	720	620	800	960	910	620	800	520	800
21/5	24/50 kg	720	720	800	960	1010	620	800	620	800
22/5	24/50 kg	720	720	1000	960	1010	620	1000	620	1000
29/5	24/50 kg	820	620	800	1060	910	720	800	520	800
33/5	24/50 kg	820	720	800	1060	1010	720	800	620	800
34/5 MGS	24/50 kg 100 kg	820	720 620	1000	1060	1010	720 520	1000	620	1000
34/5 MGS	24/50 kg 100 kg	620	720 620	800	860	910	720 520	800	520	800
11/10	100 kg	620	820	800	860	1110	520	800	720	800
54/10	100 kg	720	720	800	960	1010	620	800	620	800
MGT	100 kg	720	720	1000	960	1010	620	1000	620	1000
23/10	100 kg	720	820	800	960	1110	620	800	720	800
24/10	100 kg	720	820	1000	960	1110	620	1000	720	1000
37/10	100 kg	820	820	800	1060	1110	720	800	720	800
38/10	100 kg	820	820	1000	1060	1110	720	1000	720	1000
MDL1	100 kg	820	820	1200	1060	1110	720 720	1200	720 620	1200
62/20	200 kg	830	730	1200	1070	1060	720 720	1200	720 620	1200
MDL2 MDL3	200 kg 300 kg	1000 1000	1000 1000	1200 1200	1240 1240	1330 1330	900 900	1200 1200	900 900	1200 1200

Some of the above dimensions can be varied to suit your individual requirements by modification of stock models or by special manufacture. Please, contact us for details.

overall dimensions

Daldoss Elevetronic S.p.A. is continuously developing and improving the Microlift range and reserves the right to alter specifications and dimensions without prior notice
