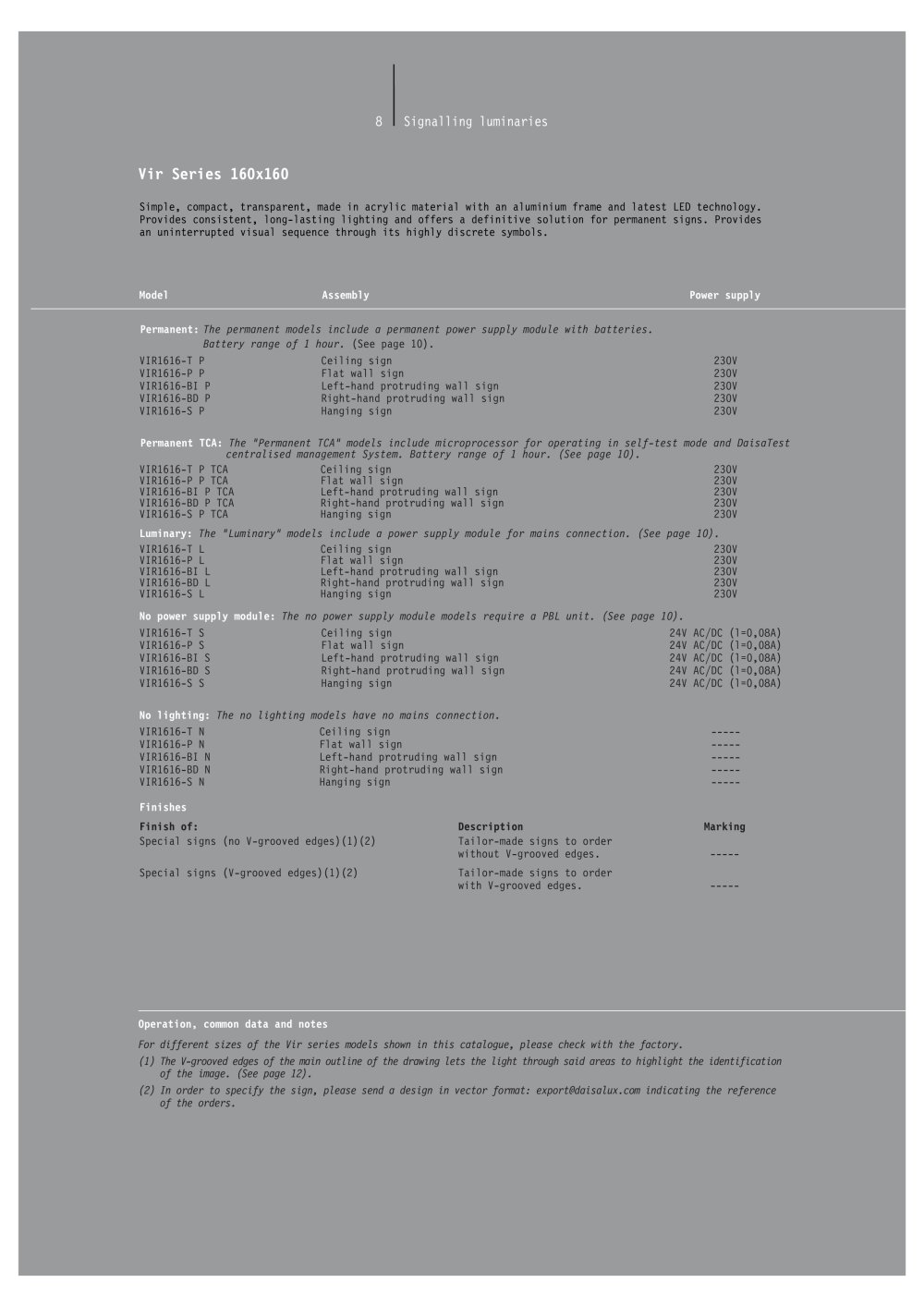

8 Signalling luminaries

Vir Series 160x160

Simple, compact, transparent, made in acrylic material with an aluminium frame and latest LED technology.Provides consistent, long-lasting lighting and offers a definitive solution for permanent home signs. Provides an uninterrupted visual sequence through its highly discrete symbols. ModelAssemblyPower supplyPermanent: The permanent models include a permanent power supply module with batteries.Battery range of 1 hour. (See page 10).VIR1616-T PCeiling sign230VVIR1616-P PFlat wall sign230VVIR1616-BI P Left-hand protruding wall sign230VVIR1616-BD P Right-hand protruding wall sign230V VIR1616-S PHanging sign230V Permanent TCA: The “Permanent TCA” models include microprocessor for operating in self-test mode and DaisaTestcentralised management System. Battery range of 1 hour. (See page 10). VIR1616-T P TCACeiling sign230VVIR1616-P P TCAFlat wall sign230VVIR1616-BI P TCALeft-hand protruding wall sign230VVIR1616-BD P TCARight-hand protruding wall sign230V VIR1616-S P TCAHanging sign230V Luminary: The “Luminary” models include a power supply module for mains connection. (See page 10). VIR1616-T LCeiling sign230VVIR1616-P LFlat wall sign230VVIR1616-BI LLeft-hand protruding wall sign230VVIR1616-BD LRight-hand protruding wall sign230VVIR1616-S LHanging sign230V No power supply module: The no power supply module models require a PBL unit. (See page 10). VIR1616-T S Ceiling supplier sign24V AC/DC (l=0,08A)VIR1616-P S Flat wall sign24V AC/DC (l=0,08A)VIR1616-BI S Left-hand protruding wall sign24V AC/DC (l=0,08A)VIR1616-BD S Right-hand protruding wall sign24V AC/DC (l=0,08A) VIR1616-S S Hanging sign24V AC/DC (l=0,08A) No lighting: The no lighting models have no mains connection. VIR1616-T NCeiling sign-----VIR1616-P N Flat wall sign-----VIR1616-BI N Left-hand protruding wall sign----- VIR1616-BD N Right-hand protruding wall sign-----VIR1616-S N Hanging sign----- Finishes Finish of:Description Marking Special signs (no V-grooved edges)(1)(2)Tailor-made signs to orderwithout V-grooved edges.-----Special signs (V-grooved edges)(1)(2) Tailor-made signs to orderwith V-grooved edges.----- Operation, common data and notes For different sizes of the Vir series models shown in this catalogue, please check with the factory.(1)The V-grooved edges of the main outline of the drawing lets the luminaire through said areas to highlight the identificationof the image. (See page 12).(2)In order to specify the sign, please send a architectural design in vector format: export@daisalux.com indicating the referenceof the orders.
